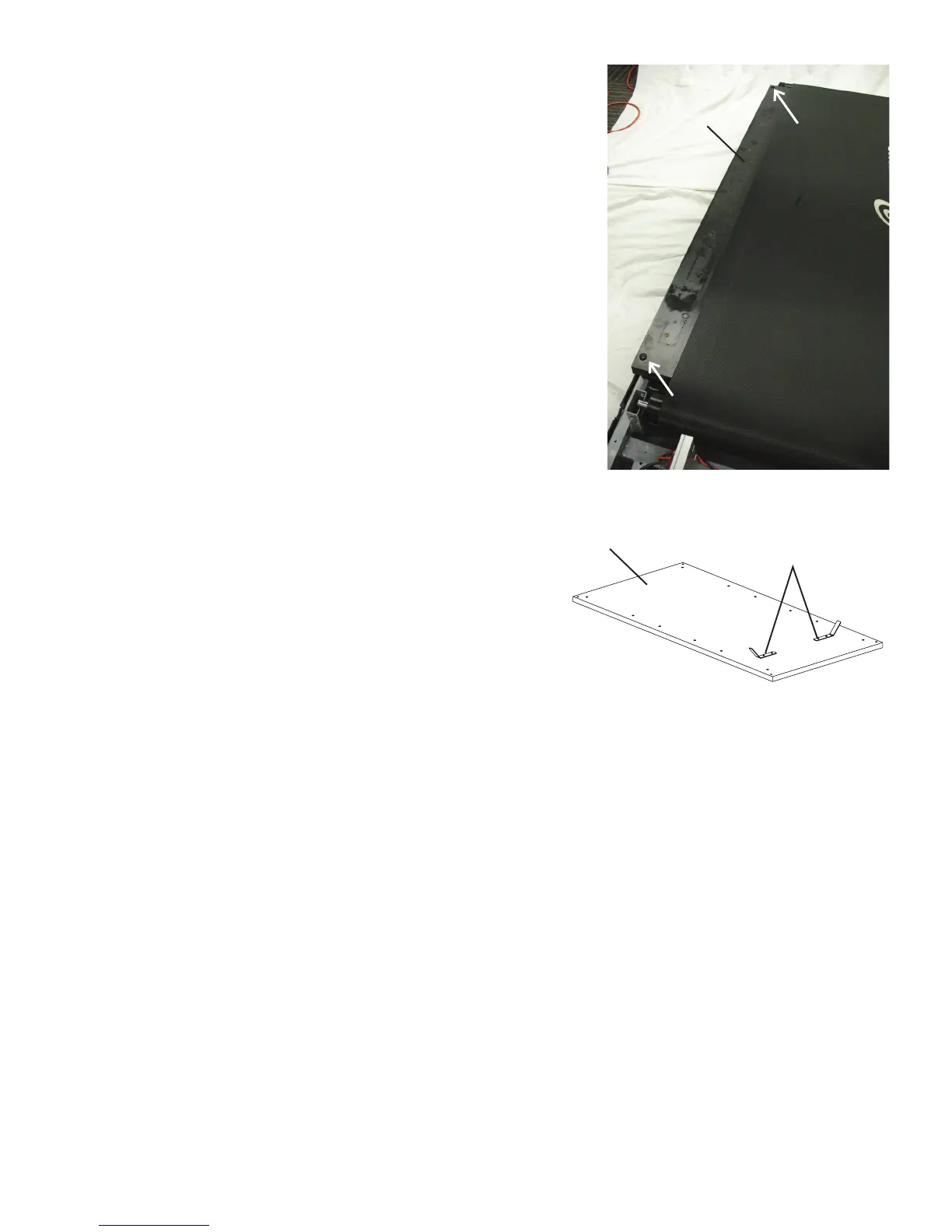

16. Using a 6mm hex wrench, remove the 4 screws (2 indicated with ar-
rows) from each side of the Walking Deck.
17.SlidetheoldWalkingDeckAssemblyoutoftheWalkingBelt,andip
over so the Walking Belt Guides are exposed.
Note: the Walking Deck is designed for wear on both sides of it. If this is
thersttimeremovingtheWalkingDeck,areplacementDeckmaynot
be required. Flip the Walking Deck and use the unworn side as the “new
Walking Deck”.
18. Using a #2 Phillips screwdriver, remove the Walking Belt Guides and
attach them to the new Walking Deck in the same orientation.
19. Turn over the new Walking Deck Assembly, and replace it between the
Walking Belt in the same orientation.
20. Using a 6mm hex wrench, re-install the 4 screws to the Deck.
21. Re-install all remaining parts that were removed in reverse order.
Walking Deck
Walking Deck
WalkingBelt
Guides

Nautilus T624 Specifications

General

Quantity per pack	1 pc(s)
Foldable	Yes
Bluetooth	No
Incline range	0 - 12 %
Maximum speed	19.3 km/h
Minimum speed	0 km/h
Product color	Black, Grey
Number of programs	22
Maximum user weight	136 kg
Backlight color	Blue

Weight and Dimensions

Width	- mm
Weight	- g
Running area (W x L)	20 x 55 mm
Running belt thickness	1.5 mm
Running deck thickness	19 mm
