Nautilus T624 Service Manual

125
NOTICE: ThisdocumentprovidesinstructionsforthereplacementoftheFrontRollerontheNautilus
™
T624/T626/T684/T686 and Schwinn
®
530/570 Treadmills.
If you need assistance, please contact your local Nautilus distributor. To find your local distributor, go to: www.nautilusinternational.com
!
To reduce the risk of electrical shock or unsupervised usage of the equipment, always unplug the power cord from the wall outlet
andthemachineandwait5minutesbeforecleaning,maintainingorrepairingthemachine.Placethepowercordinasecure
location.
Motor Cover
Note: The Nautilus™ T626 is used in the following images. The procedure
is the same for the Nautilus™ T624/T684/T686 and Schwinn
®
530/570
models.

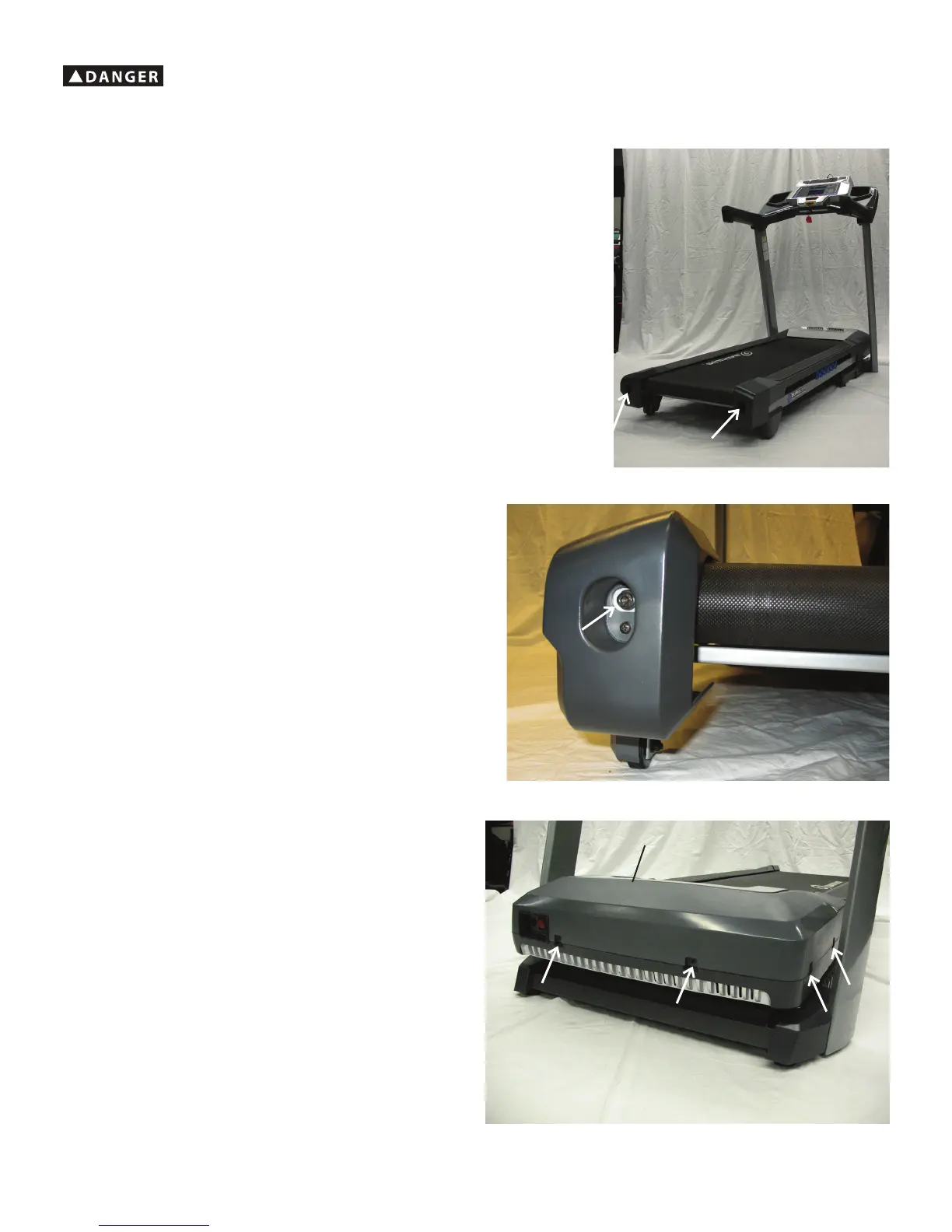

1.Unplugthepowercordfromthemachineandwait5minutes.Placethe
power cord in a secure location.
2. Using a 6mm hex wrench, loosen the Walking Belt with the Adjustment
Bolts found on both Rear Roller Covers. Loosen the Adjustment Bolts
only until the Walking Belt slides past the Rollers freely. Do not loosen the
Adjustment Bolts too much or the Rear Roller may detach.
Note: be sure to record the number of turns of the Adjustment Bolts it
takes to loosen the Walking Belt. This will assist with reassembly.
3. Using a #2 Phillips screwdriver remove the 4 indicated screws, and two
additional screws on the far side, from the Motor Cover and remove it.
AdjustmentBolt
AdjustmentBolt

Nautilus T624 Specifications

General

Quantity per pack	1 pc(s)
Foldable	Yes
Bluetooth	No
Incline range	0 - 12 %
Maximum speed	19.3 km/h
Minimum speed	0 km/h
Product color	Black, Grey
Number of programs	22
Maximum user weight	136 kg
Backlight color	Blue

Weight and Dimensions

Width	- mm
Weight	- g
Running area (W x L)	20 x 55 mm
Running belt thickness	1.5 mm
Running deck thickness	19 mm
