Nautilus T624 Service Manual

154

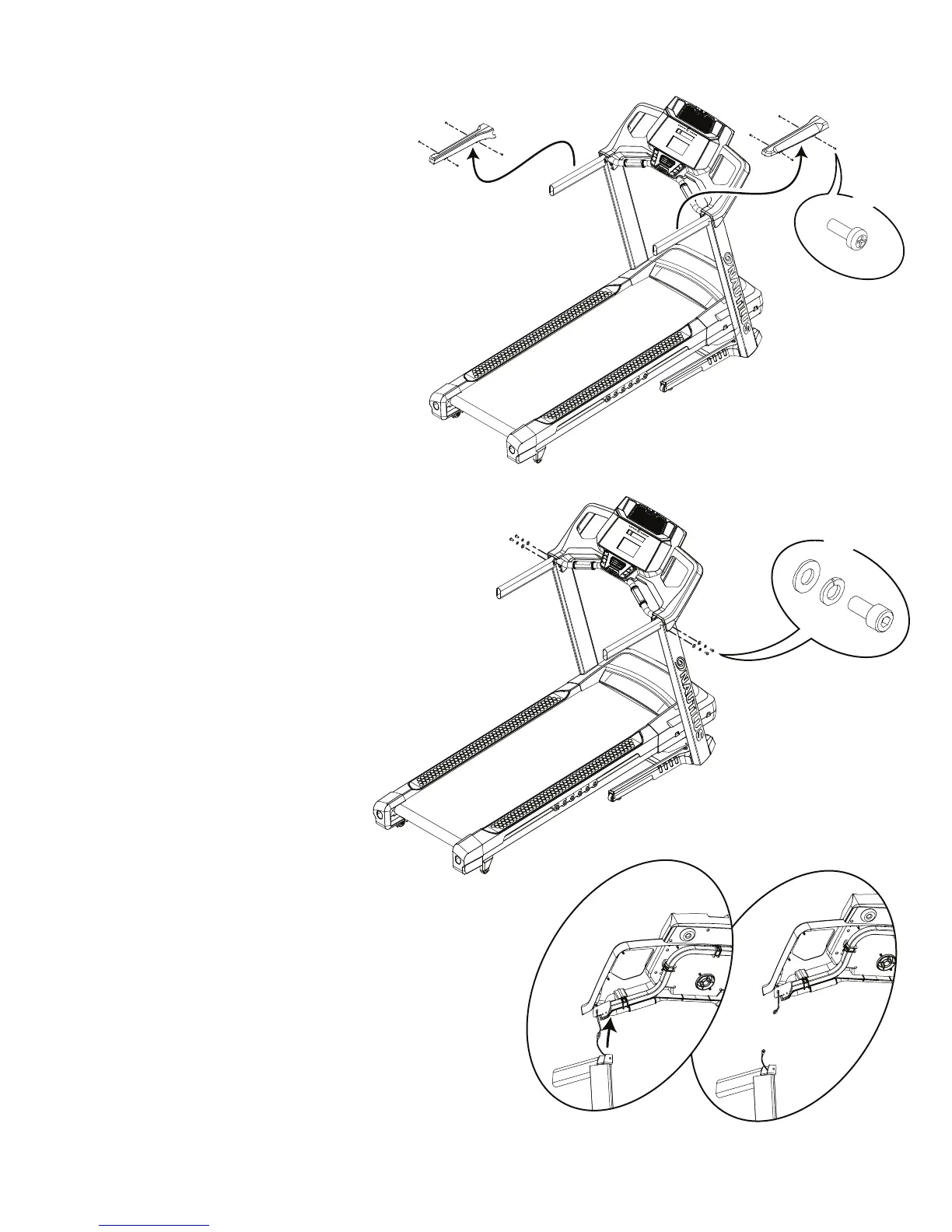

4. Using a #2 Phillips screwdriver, remove the 8 indicated screws from
Upper Handlebar Shrouds.
Note: there are no Upper Handlebar Shrouds on the Nautilus
™
T624/T684
and Schwinn
®
530machines
5.Usinga6mmhexwrench,removetheindicatedhardwarefromthe
Uprights.
6. Slightly pull the right side of the Console upward enough to expose the
Input/Output (I/O) Cable from the Right Upright, and disconnect it.
Note: this step may take two people to safely hold the Console and
Handlebar Assembly and disconnect the cables. Do not crimp the Cables.
7. Fully remove the Console and Handlebar Assembly from the Uprights.
C
X8
F
B
X4
E
F
B
X4
E

Nautilus T624 Specifications

General

Quantity per pack	1 pc(s)
Foldable	Yes
Bluetooth	No
Incline range	0 - 12 %
Maximum speed	19.3 km/h
Minimum speed	0 km/h
Product color	Black, Grey
Number of programs	22
Maximum user weight	136 kg
Backlight color	Blue

Weight and Dimensions

Width	- mm
Weight	- g
Running area (W x L)	20 x 55 mm
Running belt thickness	1.5 mm
Running deck thickness	19 mm
