Nautilus T624 Service Manual

53
6
8
B
F
X2
A
F
X2
E
E
B
F
X2
A
F
X2
E
E

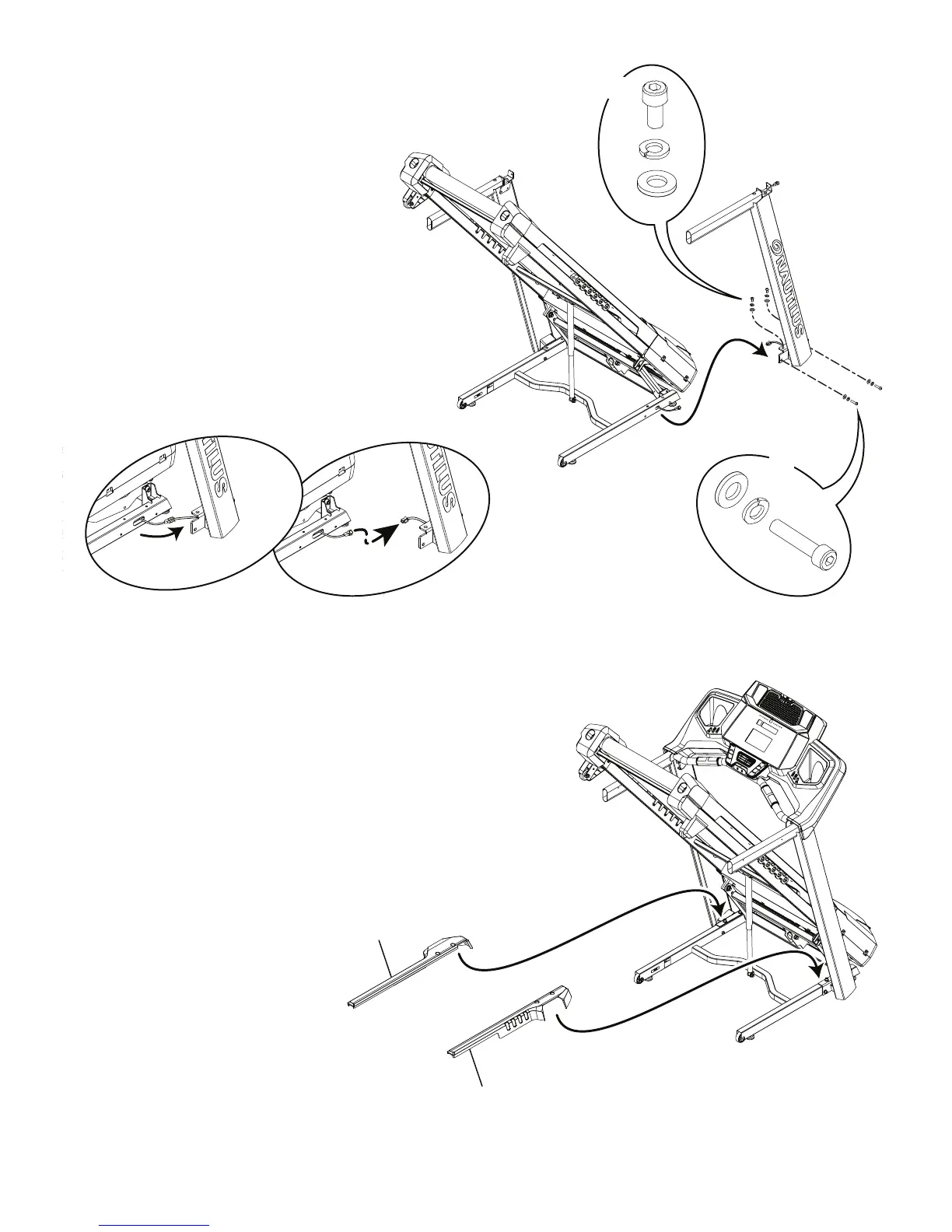

12. Using a 6mm hex wrench, remove the hardware from the Right Up-
right. Slightly remove the Right Upright from the Base Assembly exposing
the Input/Output (I./O) Cables. Disconnect the I/O Cables and remove the
Right Upright.
Note: do not crimp cables.
13. Connect the Input/Output (I/O) Cables and Attach the new Right
Upright to Frame Assembly
Note: this step may take two people to safely hold the Right Upright while
the Cables are connected. Do not crimp the Cables. Do not fully tighten
the Hardware until the Console and Handlebar Assembly has been at-
tached.
14. Place the Base Shrouds back onto the Base Assembly.

Nautilus T624 Specifications

General

Quantity per pack	1 pc(s)
Foldable	Yes
Bluetooth	No
Incline range	0 - 12 %
Maximum speed	19.3 km/h
Minimum speed	0 km/h
Product color	Black, Grey
Number of programs	22
Maximum user weight	136 kg
Backlight color	Blue

Weight and Dimensions

Width	- mm
Weight	- g
Running area (W x L)	20 x 55 mm
Running belt thickness	1.5 mm
Running deck thickness	19 mm
