Nautilus T624 Service Manual

66
4. Using a #2 Phillips screwdriver, remove the 2 screws that attach the
Speed Sensor to the Frame near the Drive Pulley.
Note: Be sure to observe the distance from the Speed Sensor to the Drive
Pulley. This distance affects the effectiveness of the Speed Sensor and
will be used for the re-assembly process.

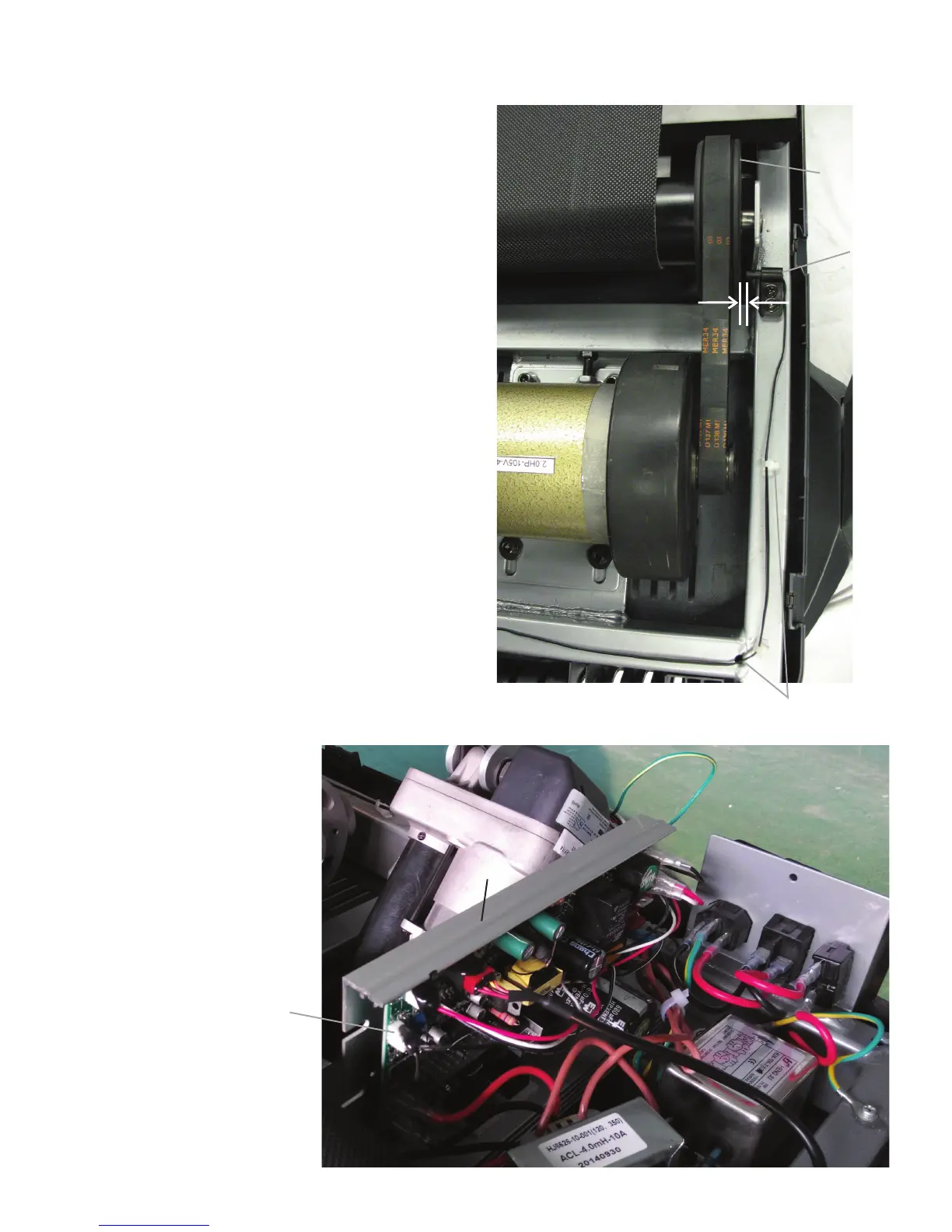

5.Cutthe4Zip-TiesthatsecuretheSpeedSensorCable.
Speed
Sensor
Drive Pulley
SpeedSensorCableZip-Tie
Speed Sensor Connector
Motor Control
Board(MCB)
6. Remove the Speed Sensor Connector
from the Motor Control Board.
