Nautilus T624 Service Manual

67

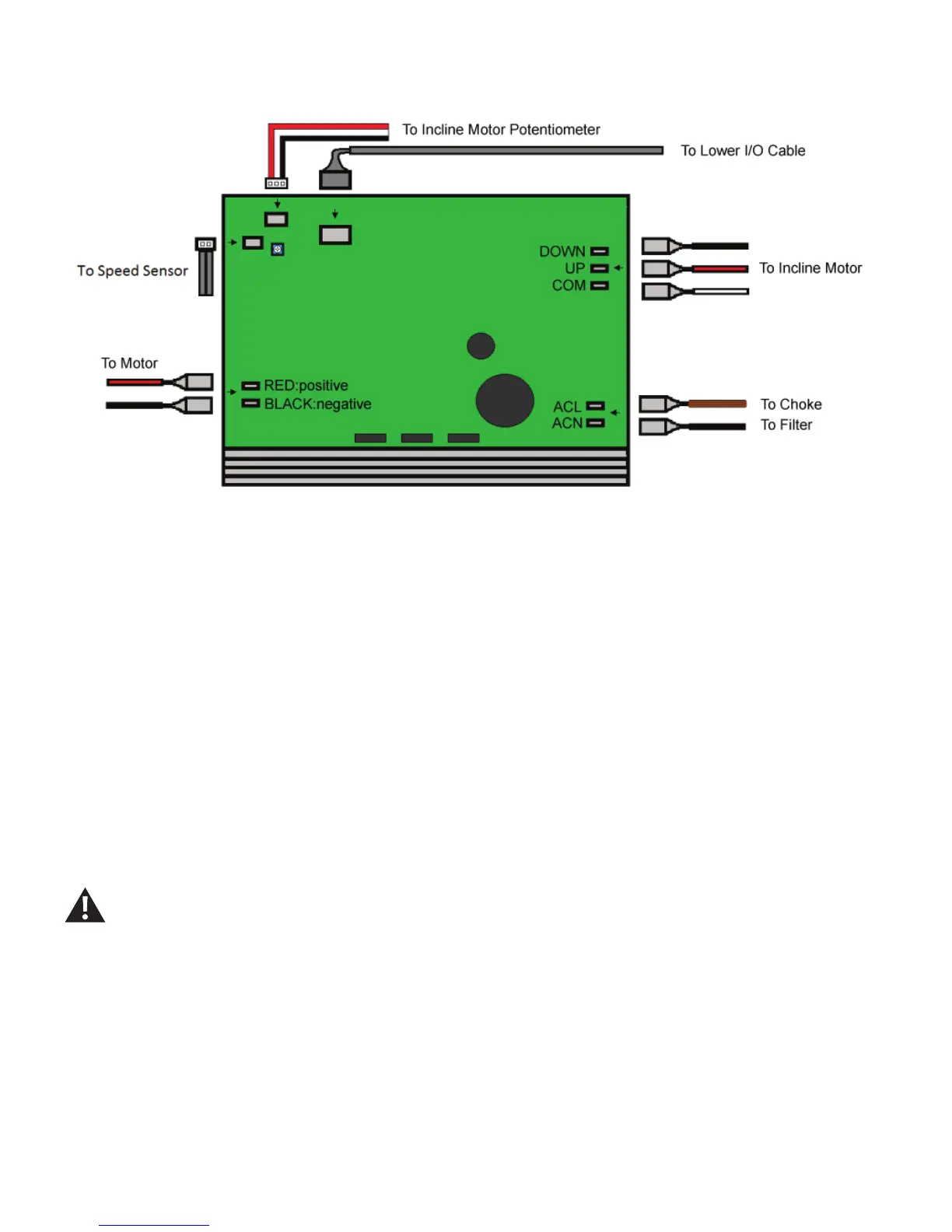

7. Attach the new Speed Sensor Connector to the Motor Control Board.
8. Route the new Speed Sensor Cable along the Frame.
9. Using replacement Zip-Ties, secure the Speed Sensor Cable to the
Frame and trim the excess from the Zip-Ties. Be sure not to cut the Speed
Sensor Cable.
10. Using a #2 Phillips screwdriver, attach the new Speed Sensor and
adjust it to be the same distance as the old Sensor from the Drive Pulley.
11. Re-install all remaining parts that were removed in reverse order.
12. Final Inspection
Inspect your machine to ensure that all hardware is tight and components
are properly assembled.
Do not use until the machine has been fully assembled and
inspected for correct performance in accordance with the
Owner’s Manual.
