Nautilus T624 Service Manual

72
B
F
X2
A
F
X2
E
E
B
F
X2
A
F
X2
E
E

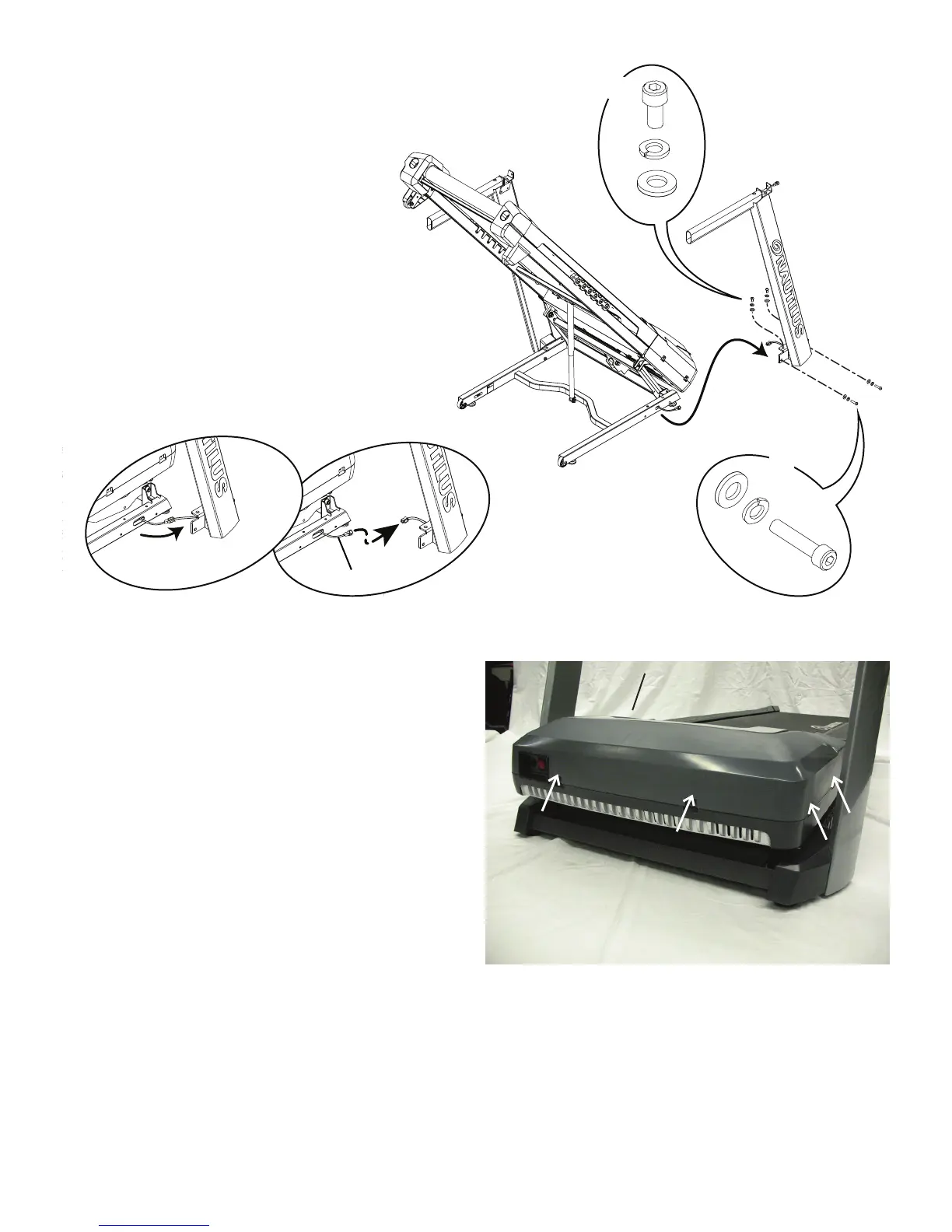

12. Using a 6mm hex wrench, remove the hardware from the Right Up-
right. Slightly remove the Right Upright from the Base Assembly exposing
the Input/Output (I./O) Cables. Disconnect the I/O Cables and remove the
Right Upright.
Note: do not crimp cables.
13. Using a #2 Phillips screwdriver remove the 4 indicated screws, and
two additional screws on the far side, from the Motor Cover and remove it.
Motor Cover
Lower I/O Cable

Nautilus T624 Specifications

General

Quantity per pack	1 pc(s)
Foldable	Yes
Bluetooth	No
Incline range	0 - 12 %
Maximum speed	19.3 km/h
Minimum speed	0 km/h
Product color	Black, Grey
Number of programs	22
Maximum user weight	136 kg
Backlight color	Blue

Weight and Dimensions

Width	- mm
Weight	- g
Running area (W x L)	20 x 55 mm
Running belt thickness	1.5 mm
Running deck thickness	19 mm
