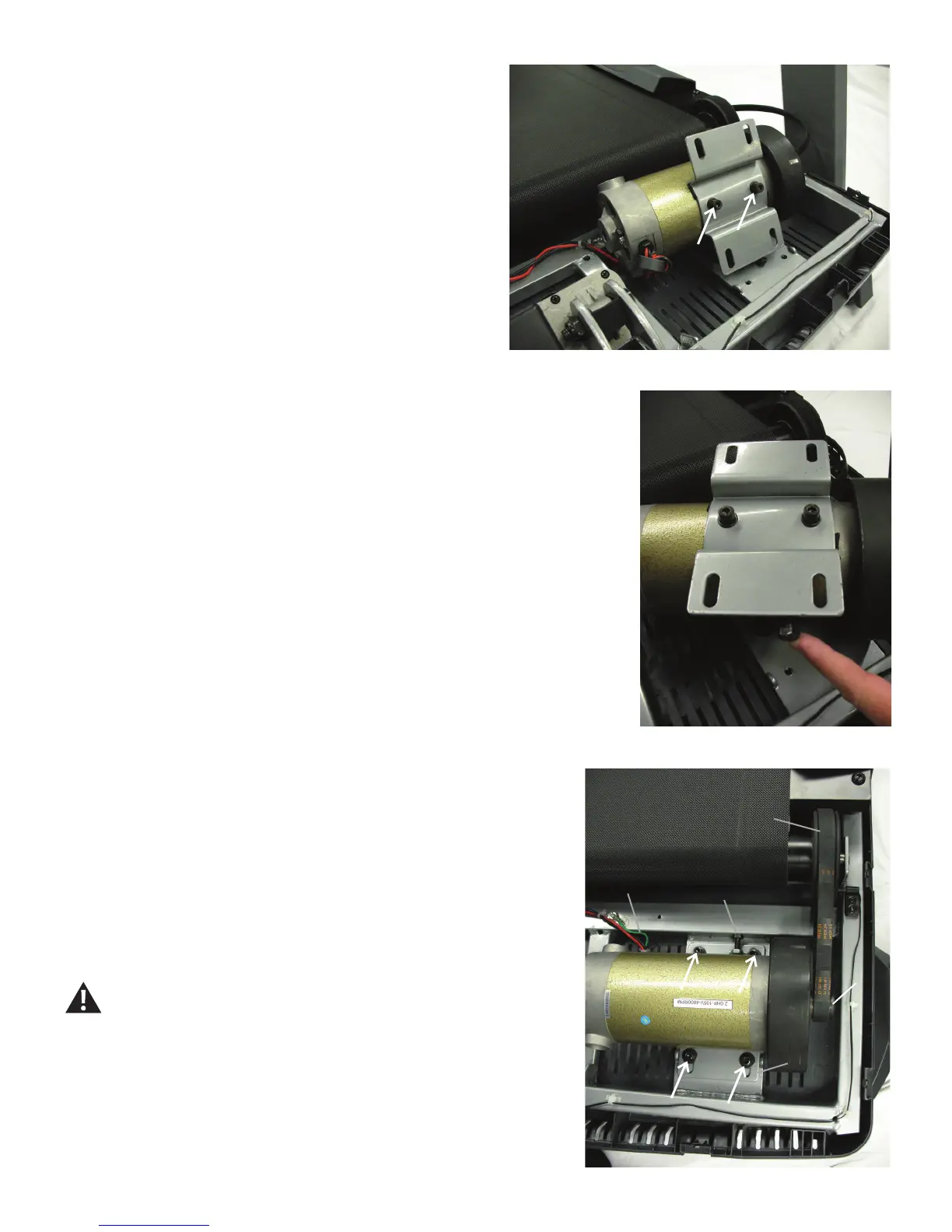

8. Using a 6mm hex wrench, remove the indicated hardware from the
Motor Mount.
9. Attach the new Motor Mount to the Motor. Be sure the Belt Tensioner
Screw is properly oriented toward the rear of the machine when the Motor
is re-installed.
10.LightlyattachtheMotorAssemblytotheFrame.Besuretoonlynger
tighten the hardware.
11. Loop the Drive Belt onto the Motor Pulley. With the Drive Belt looped
onto the Motor, carefully roll the Drive Belt onto the Drive Pulley.
12. Wrap the new Drive Belt around the Motor Pulley. Start the Drive Belt
on the Drive Pulley and roll it in a clockwise motion. Be sure the Belt does
not come off of the Motor Pulley.
Keepngersoutofanypinchopportunitieswhenturningthe
Pulleys.
13. Roll the Drive Pulley clockwise until the Drive Belt is fully installed.
ContinuetorolltheBeltforwardwhileaddingsidepressurewithngersto
align as necessary.
MotorGround
Wire
BeltTensionerScrew
DriveBelt
Motor
Mount
Motor
Pulley
