NCE Power Cab - System Power Panel Description

14

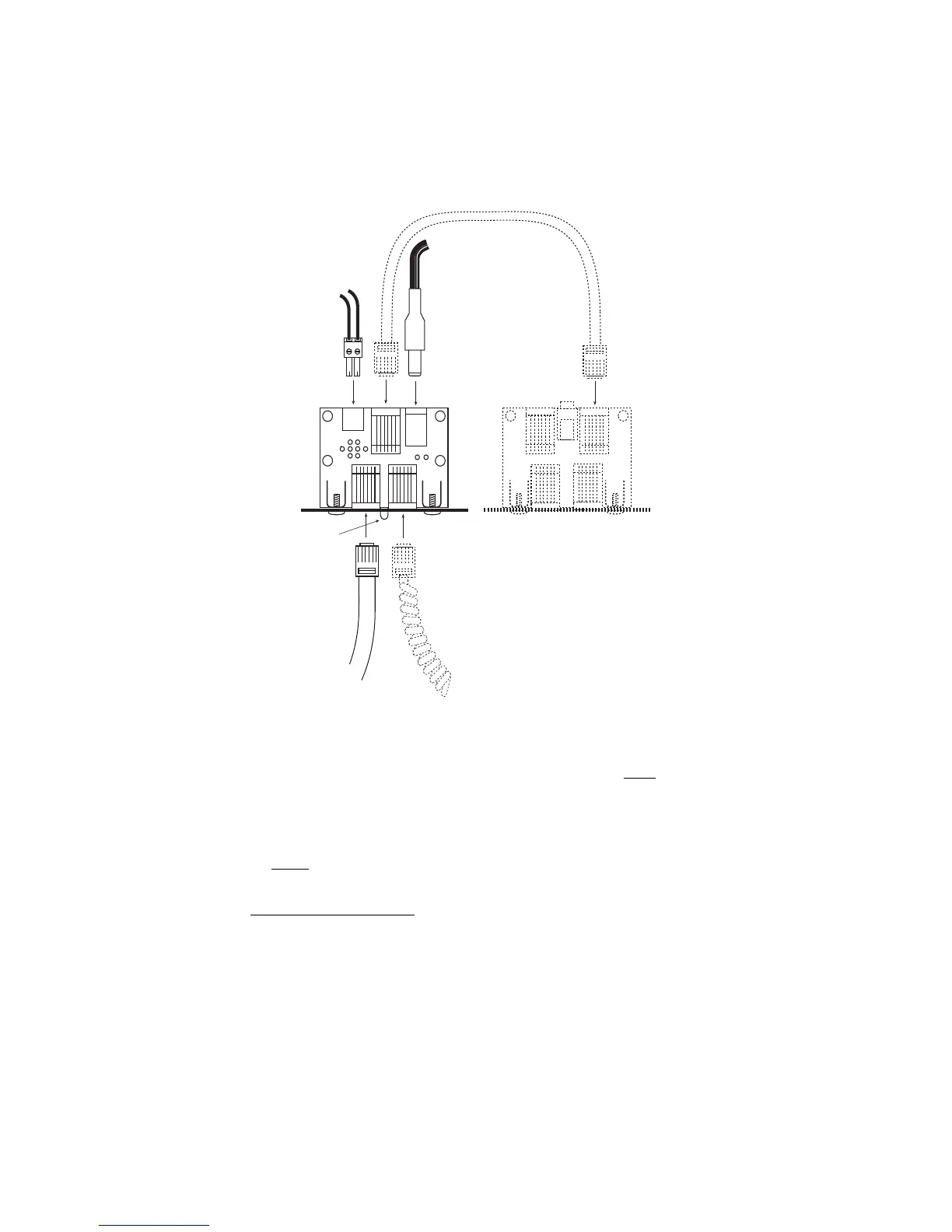

SYSTEM POWER PANEL DESCRIPTION
POWER
PCAB-PP
TRACK
Track Wires
Power
Optional UTP Panel(s)
provide extra plug-in
locations for optional cab,
Mini Panel and/or USB
Interface
Optional
Extra Cab
(must be
set to cab
address 3)
Power Cab
here ONLY
Red LED glows
when there is
power to track
NOTES:
l The Power Cab
TM
will deliver track power only if it is plugged in to the LEFT socket.
With the flat, 6-wire cable.
l Use only the provided P114 power supply or a voltage regulated 10-15 VDC
supply of 3 Amps or less.
l The flat 6 wire cable carries track power from the Power Cab
TM
to the Power
Panel
TM
. Use this cable for Power Cab
TM
operations.
l The 4 wire coilcord DOES NOT carry track power. Use this cable when you use
the Power Cab
TM
as a Pro Cab
TM
on another system.
