SET THE PROCAB ADDRESS -
If the Power Cab is to be used as a Pro Cab
TM
Just as every locomotive has a separate number (address in DCC terms) each cab
needs a separate address so the command station can distinguish one cab from
another. Each Power Cab
TM
is shipped from the factory with the address of 2. When
the Power Cab
TM
is used in Power Cab
TM
mode, the address is always 2 regardless of
the Pro Cab
TM
address setting. To easily change the address:
1. Power up your Power Cab
TM
system.
2. Plug in the Power Cab
TM
cable to the CAB BUS connector of the Power Cab
TM
3. Unplug your Power Cab
TM
at the base of the cab
4. Press and hold the SELECT LOCO button while re-plugging in the cable you just
removed from the cab
5. You should see the following display on the cab:
NCE PROCAB V1.3NCE PROCAB V1.3
NCE PROCAB V1.3NCE PROCAB V1.3
NCE PROCAB V1.3
CAB ADDRESS = 02CAB ADDRESS = 02
CAB ADDRESS = 02CAB ADDRESS = 02
CAB ADDRESS = 02
6. The cursor will be flashing over the 0 of “02”. Type in the new cab number. In this
case, you will press “3” (valid range = 1-63) followed by ENTER.
7. Press PROG/ESC to skip setting all the other cab setup options. They will be
discussed later on page 20 of this manual.
THE LCD SCREEN
The LCD screen provides you with
messages from the Power Cab
TM
Command Station. This information
includes: locomotive status, scale
time, command prompts and
messages regarding programming

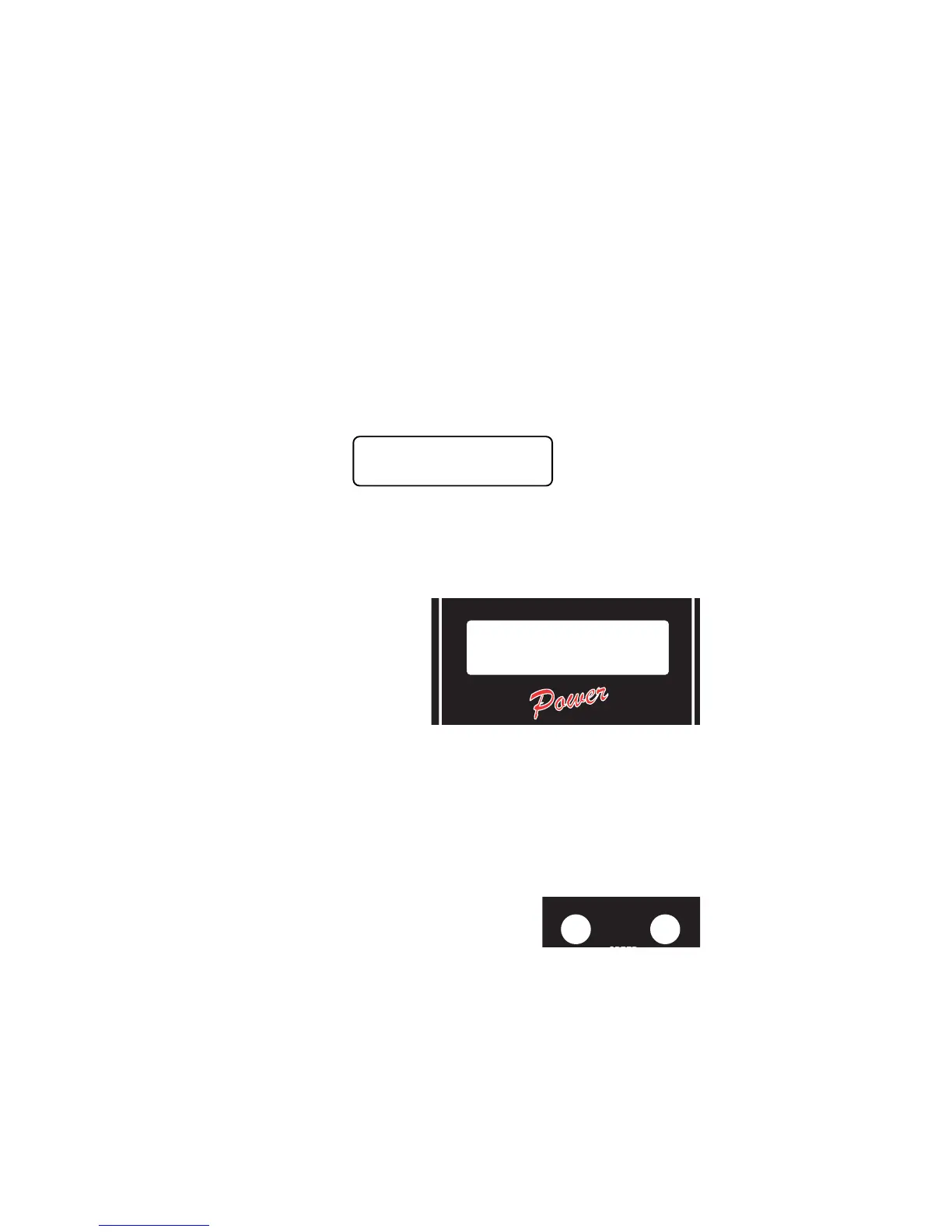

decoders. The drawing above
shows how the display looks
during normal operation. The top
line of the display includes the locomotive number being controlled and the scale
time. The second line shows the direction, speed and status of the locomotive
function outputs. Decoder functions are represented with “L” for headlight or the
function number 1 through 6 being ON. A dash (“-”) indicating the function is OFF
LOCOMOTIVE CONTROL AREA
DIRECTION
The DIR key changes the direction of your loco or
consist. The current direction is displayed as the first
three characters of the second line on the screen.
This button is disabled if the cab is in Yard mode.
Holding down the DIRECTION button while turning the system on will cause it to
immediately go to Power Cab
TM
mode.
MOMENTUM
This key changes the acceleration/deceleration rate of the currently controlled
locomotive/consist.
DCC COMPATIBLE COMMAND CONTROL
LOC:1234
FWD: 000
12:00AM
L1-3---
NCE
CAB
