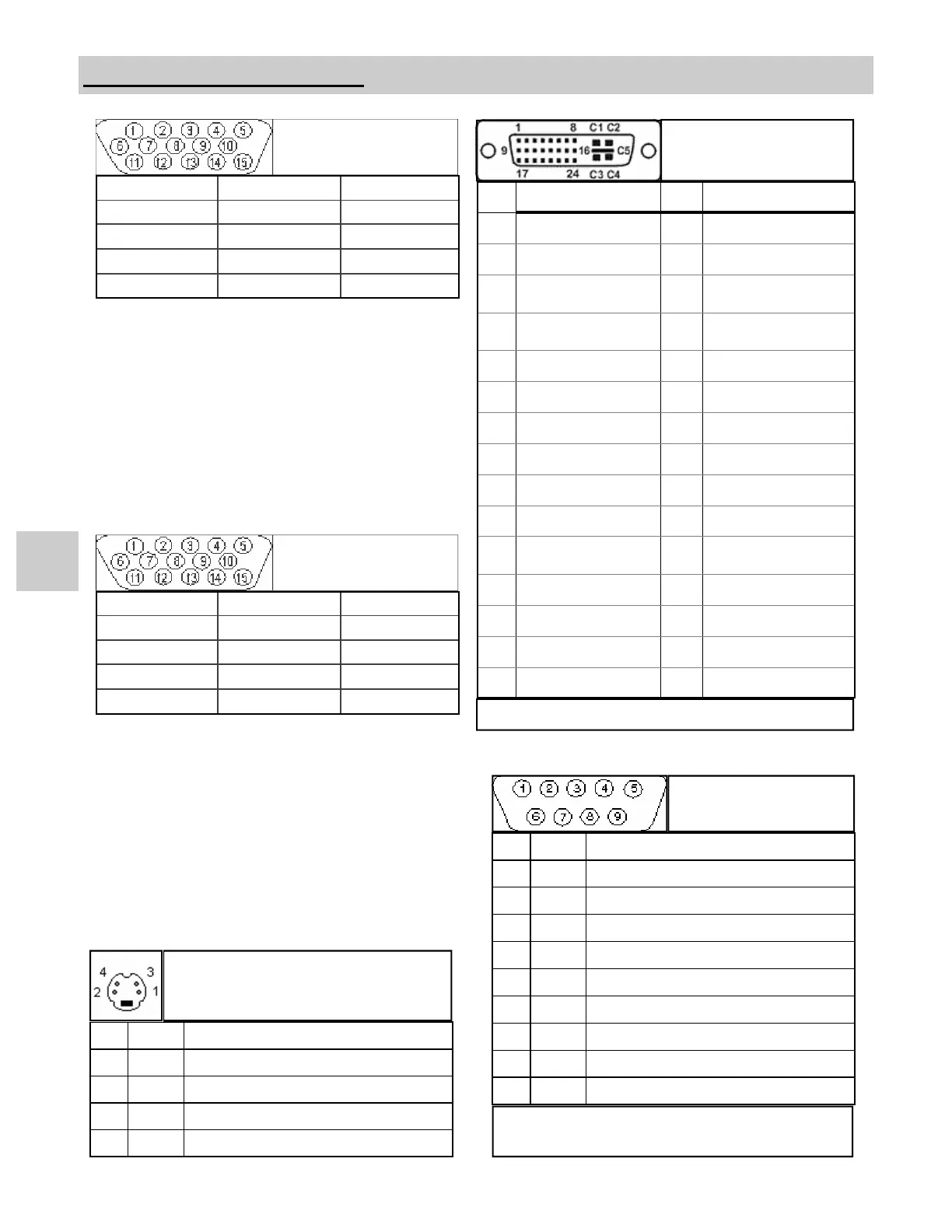

Data Connectors and Pin Outs
S-Video
Pin Name Description
1 GND Ground (Y)
2 GND Ground (C)
3 Y Intensity (Luminance)
4 C Color (Chrominance)
1 RED 6 GND RED 11 N. C.
2 GREEN 7 GND GREEN 12 N. C.
3 BLUE 8 GND BLUE 13 C. Sync / H. Sync.
4 N. C. 9 N. C. 14 V. Sync.
5 GND TEST 10 GND 15 N. C.
RGBS / YPbPr
8
1 RED 6 GND RED 11 ID0
2 GREEN 7 GND GREEN 12 ID1
3 BLUE 8 GND BLUE 13 HORIZ SYNC
4 ID2 9 N. C. 14 VERT SYNC.
5 GND 10 SYNC GND 15 ID3
VGA
PIN# SIGNAL PIN# SIGNAL
1
T.M.D.S. DATA 2-
16
HOT PLUG DETECT
2
T.M.D.S. DATA 2+
17
T.M.D.S. DATA 0-
3
T.M.D.S. DATA 2/4
SHIELD
18
T.M.D.S. DATA 0+
4
T.M.D.S. DATA 4-
19
T.M.D.S. DATA 0/5
SHIELD
5
T.M.D.S. DATA 4+
20
T.M.D.S. DATA 5-
6
DDC CLOCK
21
T.M.D.S. DATA 5+
7
DDC DATA
22
T.M.D.S. CLOCK SHIELD
8
N/C
23
T.M.D.S. CLOCK+
9
T.M.D.S. DATA 1-
24
T.M.D.S. CLOCK-
10
T.M.D.S. DATA 1+
11
T.M.D.S. DATA 1/3
SHIELD
C1
N/C
12
T.M.D.S. DATA 3-
C2
N/C
13
T.M.D.S. DATA 3+
C3
N/C
14
+5V POWER
C4
N/C
15
GND
C5
N/C
DVI-D*
Digital Input
* Compliant with DVI 1.0
Note: The following cables are available from NDS.
1. Flash Upgrade Cable order part number: 35Z0009
Serial and / or Touch
Screen Control
Pin Name Description
1 NC No Connection
2 RXD Touch Screen Data Receive
3 TXD Flash Upgrade & Touch Screen Transmit
4 NC No Connection
5 GND Ground
6 NC No Connection
7 NC No Connection
8 NC No Connection
9 RXD Flash Upgrade Receive Data
