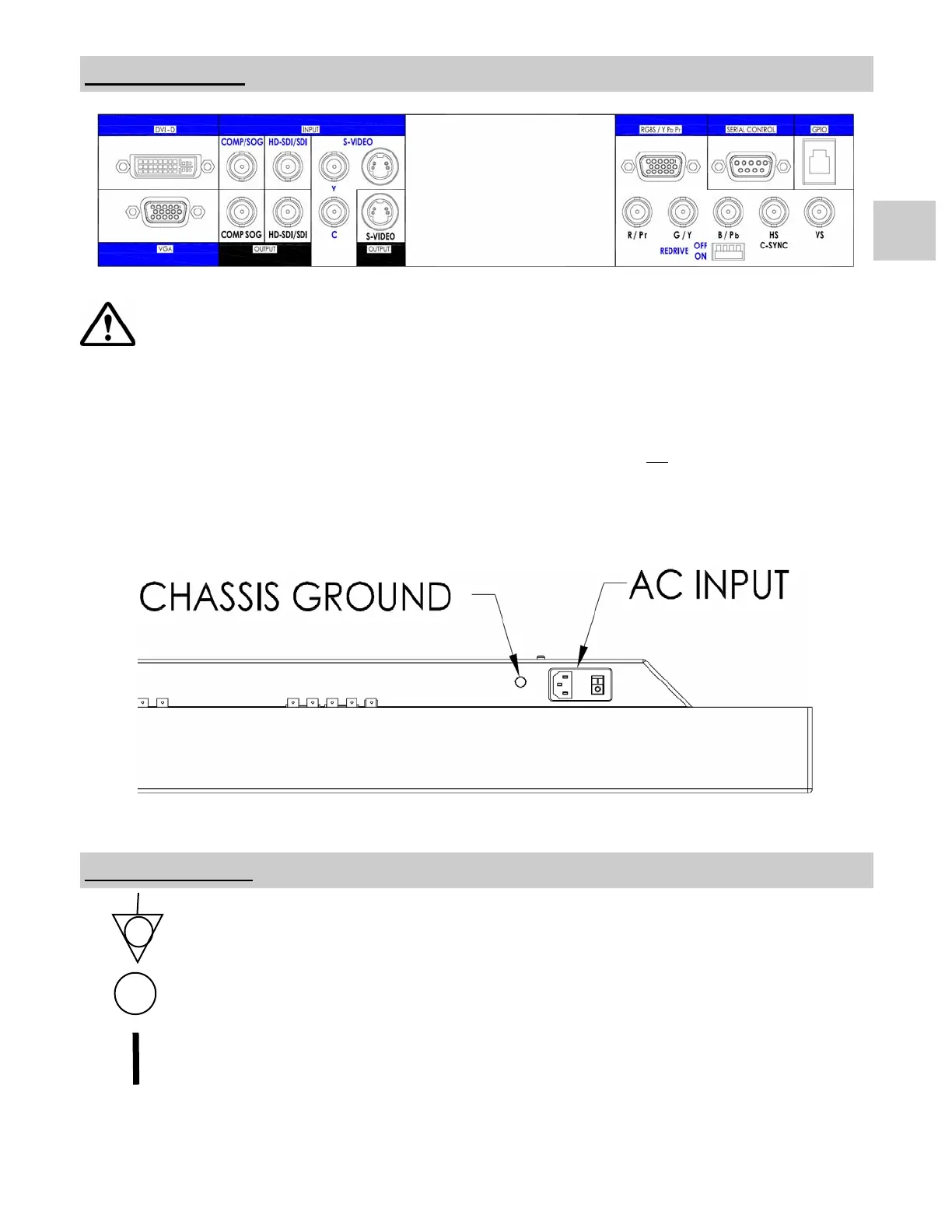

Connector Panels
3
Notes
1. An S-Video signal may be applied via 2 BNC terminated cables to the Y and C labeled BNC connectors or a
DIN 4 terminated cable, but not both.
2. RGBS and YPbPr signals may be applied via the HD-15 connector or the R/Pr, G/Y, B/Pb and CSYNC BNC
connectors.
3. Set the REDRIVE switch to Off when the RGBS and YPbPr signals will not
be daisy chained to another
display. The REDRIVE switch is set to On when the RGBS and YPbPr signals will be daisy chained to a
second display.
Electrical Symbols
Open (Off) Switch:
This symbol appears on the open, or off, side of the display’s rocker switch.
Equipotentiality:
This symbol appears next to the display’s Potential Equalization Conductor. (ground post)
Closed (On) Switch:
This symbol appears on the closed, or on, side of the display’s rocker switch.
