Display User Interface | 11

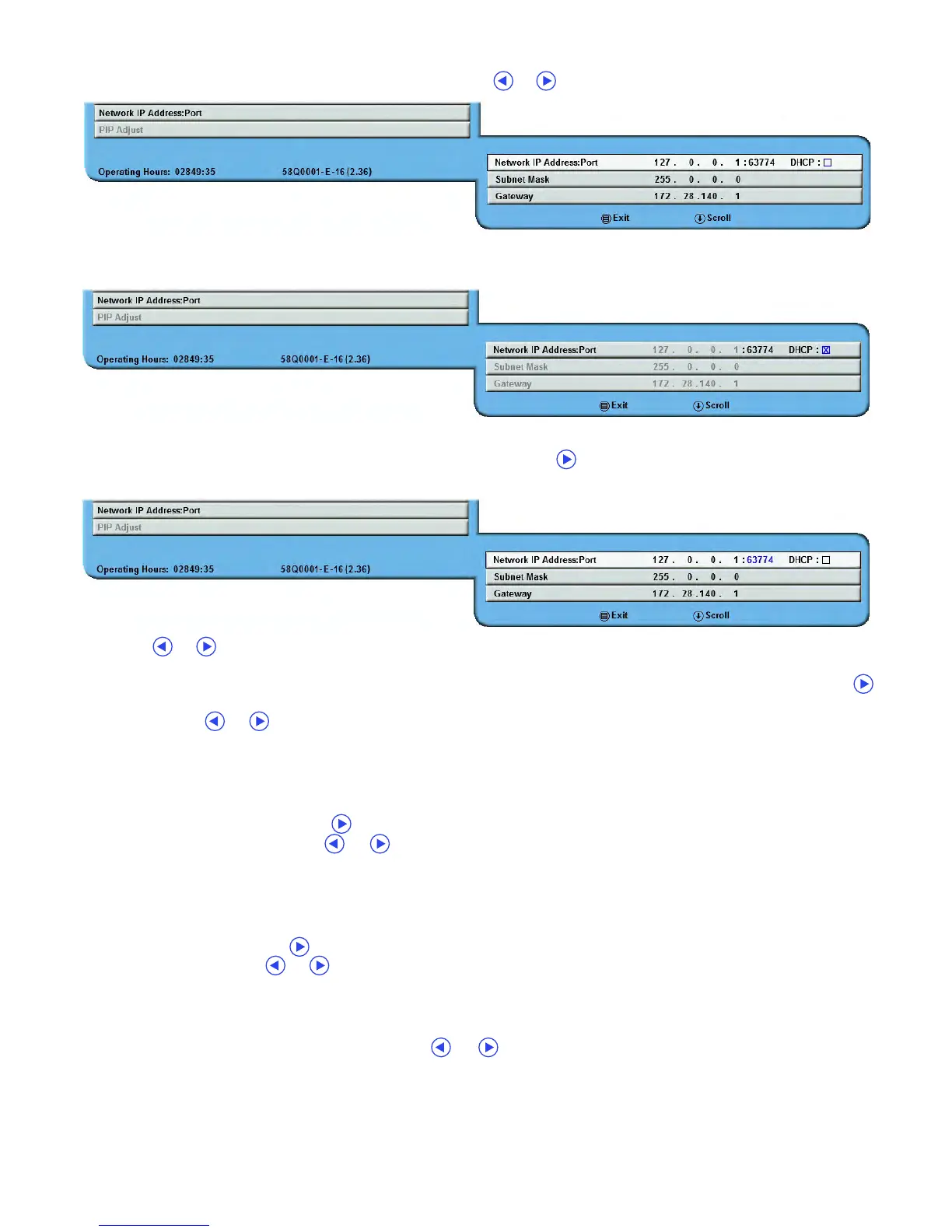

To enable the dynamic IP setting, tap the

SCROLL

button until the DHCP (Dynamic Host Configuration Protocol)

checkbox is highlighted blue, and then tap either of the or buttons to toggle DHCP on or off.

With DHCP on, Network IP address, Subnet Mask and Gateway are disabled because they will automatically be

configured when the unit is connected to a network supporting automatic setup.

Whether the network is configured with DHCP On or Off, the Port must be set to match the port the

commands will be sent on. The Port can be set by tapping the button to enter edit mode, then tap the

SCROLL

button until the port number is highlighted in blue.

Tap the or buttons to increase or decrease the port number until the desired port number is set. When

DHCP is set to OFF, the user must configure the Network IP address, Subnet Mask and Gateway for the network

the display will be controlled from. To set the IP address, make sure to disable DHCP first, then tap the

button to enter edit mode and tap the

SCROLL

button to highlight the first octet (one of the four IP Address

digits). Tap the or buttons to configure the first octet, then tap the

SCROLL

button to highlight and set

each subsequent octet until all four are set correctly.

Consult your IT administrator if you do not know the settings for the network you are connecting to.

Subnet Mask

The Subnet Mask must be set manually when DHCP is disabled.

To set the Subnet Mask, tap the button to enter edit mode and highlight the first octet (one of the four

Subnet Address digits). Tap the or buttons to configure the first octet, then tap the

SCROLL

button to

highlight and set each subsequent octet until all four are set correctly for your network. When DHCP is

enabled, this parameter is automatically configured by the network.

Gateway

The Gateway must be set manually when DHCP is disabled.

To set the Gateway, tap the button to enter edit mode and highlight the first octet (one of the four Gateway

Address digits). Tap the or buttons to configure the first octet, then tap the

SCROLL

button to highlight

and set each subsequent octet until all four are set correctly for your network. When DHCP is enabled, this

parameter is automatically configured by the network.

PIP Adjust

To select a preset PIP display option, tap the or buttons. PIP display options are also controlled by

keypad PIP controls described on page 12.
