NEC America, Inc. Issue 1
D
term
Cordless Lite
Owner’s Manual 3 - 9
6. Plug the other end of the short telephone cord into a
telephone wall jack.
7. Plug the AC adapter into a standard 120 Vac wall
outlet. Refer to Figure 3-8 Plugging the AC Adapter
into the AC Wall Outlet on page 3-6.
Note:
Do not use an outlet controlled by a wall switch.
Charging Unit Wall Mounting
The charging unit is also designed to be wall mounted.
Before mounting the charging unit, consider the following:
Select a location away from electrical cables, pipes, or
other items behind the mounting location that could
cause a hazard when inserting screws into the wall.
Make sure the wall material is capable of supporting
the weight of the charging unit.
Use #10 screws with anchoring devices suitable for the
wall material where the charging unit will be placed.
1. Insert two mounting screws one inch apart. Allow
about 3/16 of an inch between the wall and screw
heads for mounting the telephone.

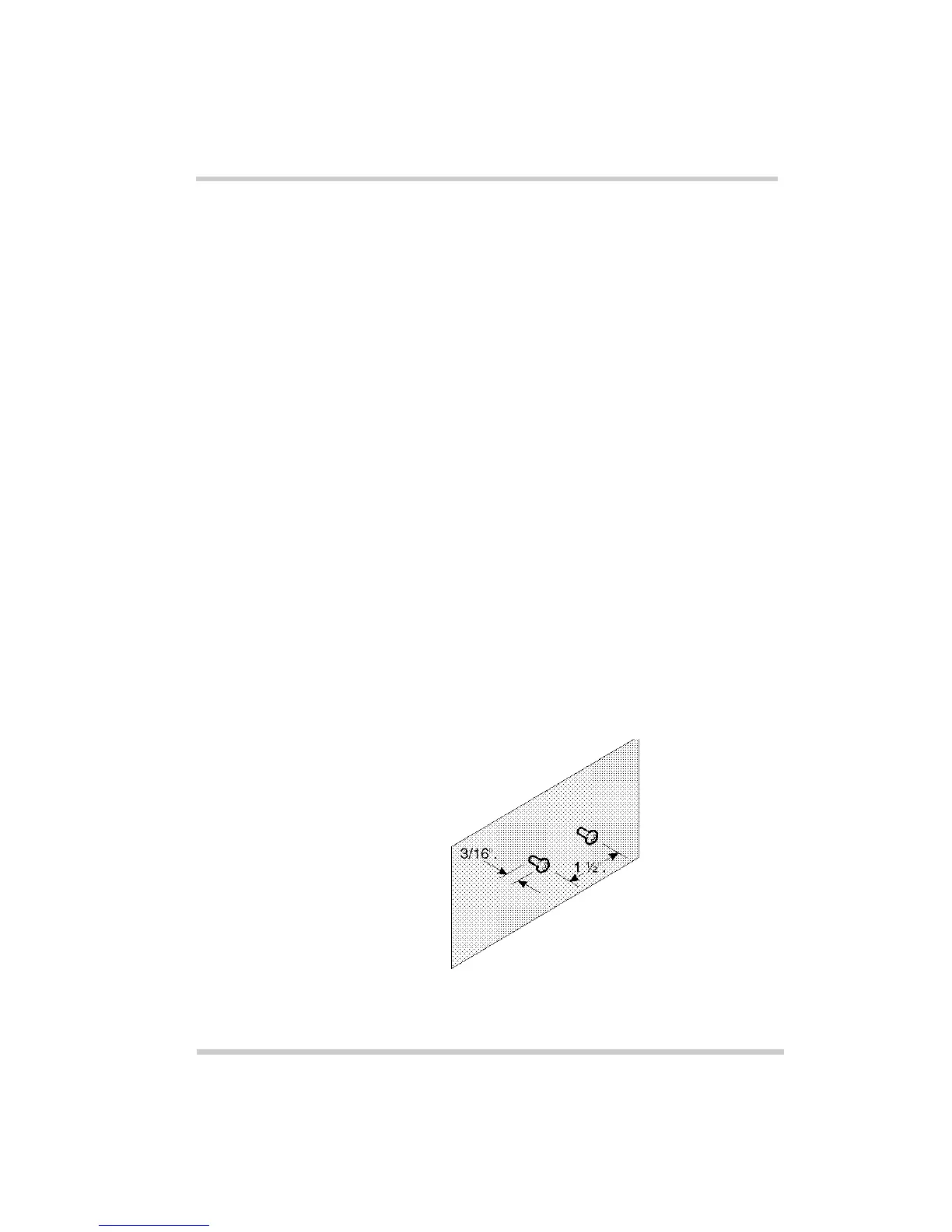

Figure 3-12 Inserting Screws for Wall Mounting
