3) Ventilation Requirements
When mounting in an enclosure or in a recessed area
allow heat to disperse, leave space between surrounding
the monitor and surrounding objects allow heat to
disperse, as shown in Figure 5.
4) Main Power Switch Cover
e Main Switch Cover will be attached in one of two
ways, depending on the orientation of the monitor.
When the Main Switch Cover is used when the stand is
attached the longer side of the cover will go underneath.
When used without the stand, the short side of the
cover will go underneath (Figure 6).
5) Prevent Tipping
When using the display with the Tabletop Stand fasten
the LCD to a wall using a cord or chain that can support
the weight of the monitor (M40 approx. 32.6kg; M46
approx. 39.3kg) in order to prevent the monitor from
falling. Fasten the cord or chain to the monitor using
the provided clamp and screw (Figure 7).
Before attaching the LCD monitor to the wall, make
sure that the wall can support the weight of the
monitor.
Be sure to remove the cord or chain from the wall
before moving the LCD.

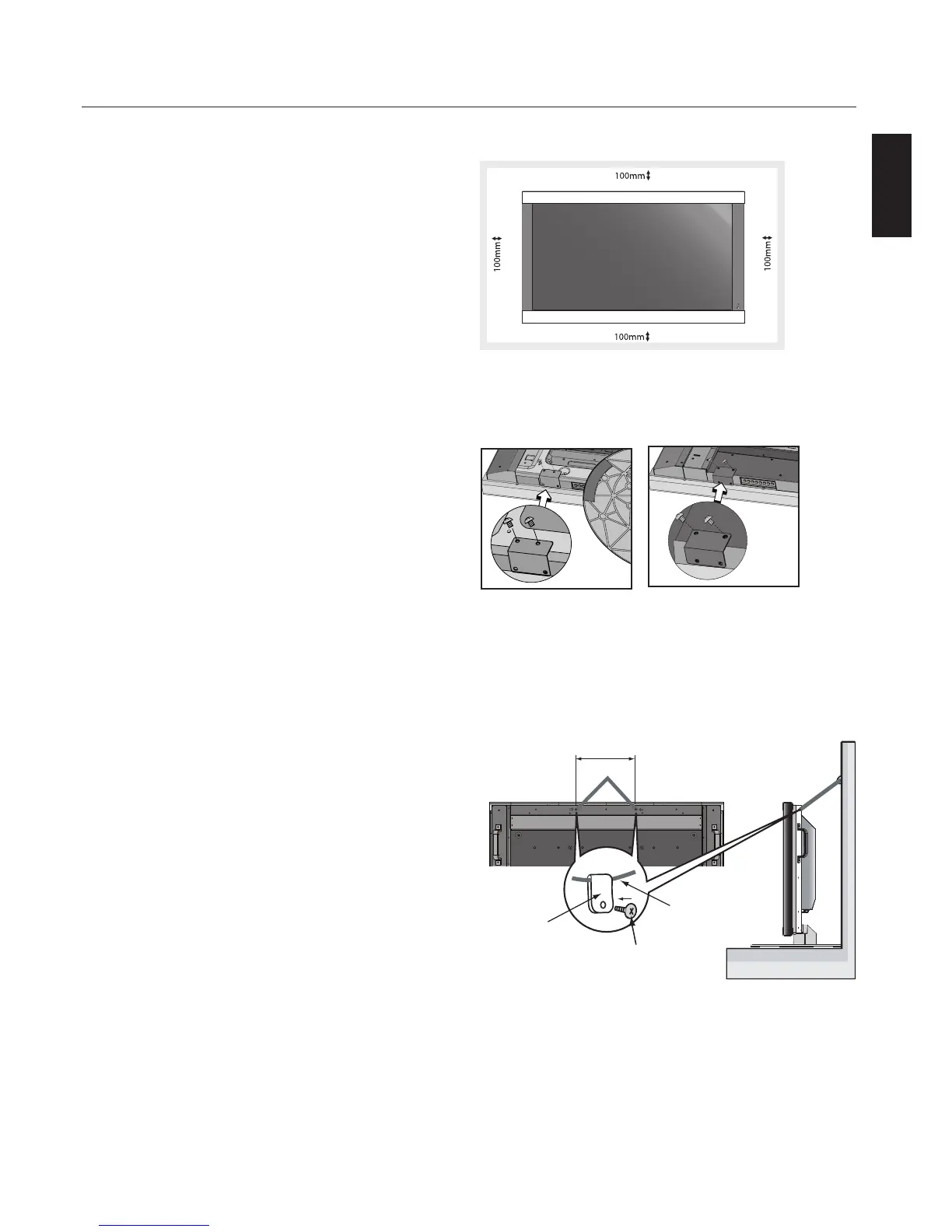

Figure 5
Main switch cover
(with stand)
The longer side of the
cover is toward the bot-
tom of the display.
Figure 6
Main switch cover
(without stand)
The shorter side of the
cover is toward the bottom
of the display.
Installation - continued
To Next Page
