Connecting to a Macintosh® Computer
Connecting your Macintosh computer to your LCD moni-
tor will enable you to display your computer’s screen image.
Some video cards or drivers may not display images cor-
rectly.
To connect to the VGA connector (mini D-sub 15 pin) on
the LCD monitor, use the RGB signal cable (mini D-sub 15
pin to mini D-sub 15 pin) included with the display.
NOTE: For older Macintosh computers, use Macintosh cable
adapter to connect to your Macintosh’s video port. To obtain
the Macintosh cable adapter call NEC Display Solutions of
America, Inc. at (800) 632-4662
To connect to the RGB/ HVconnector (BNC) on the LCD
monitor, use a mini D-sub 15 pin to BNC x 5 signal cable
(not included).
If you will be connecting the LCD monitor to a Macintosh
PowerBook, set “Mirroring” to o.
Refer to your Macintosh’s owner’s manual for more infor
-
mation about your computer’s video output requirements
and any special identication or conguring that may be
required.
e AUDIO IN1, 2, 3 can be used to choose the audio
source. To select, use the AUDIO INPUT button.

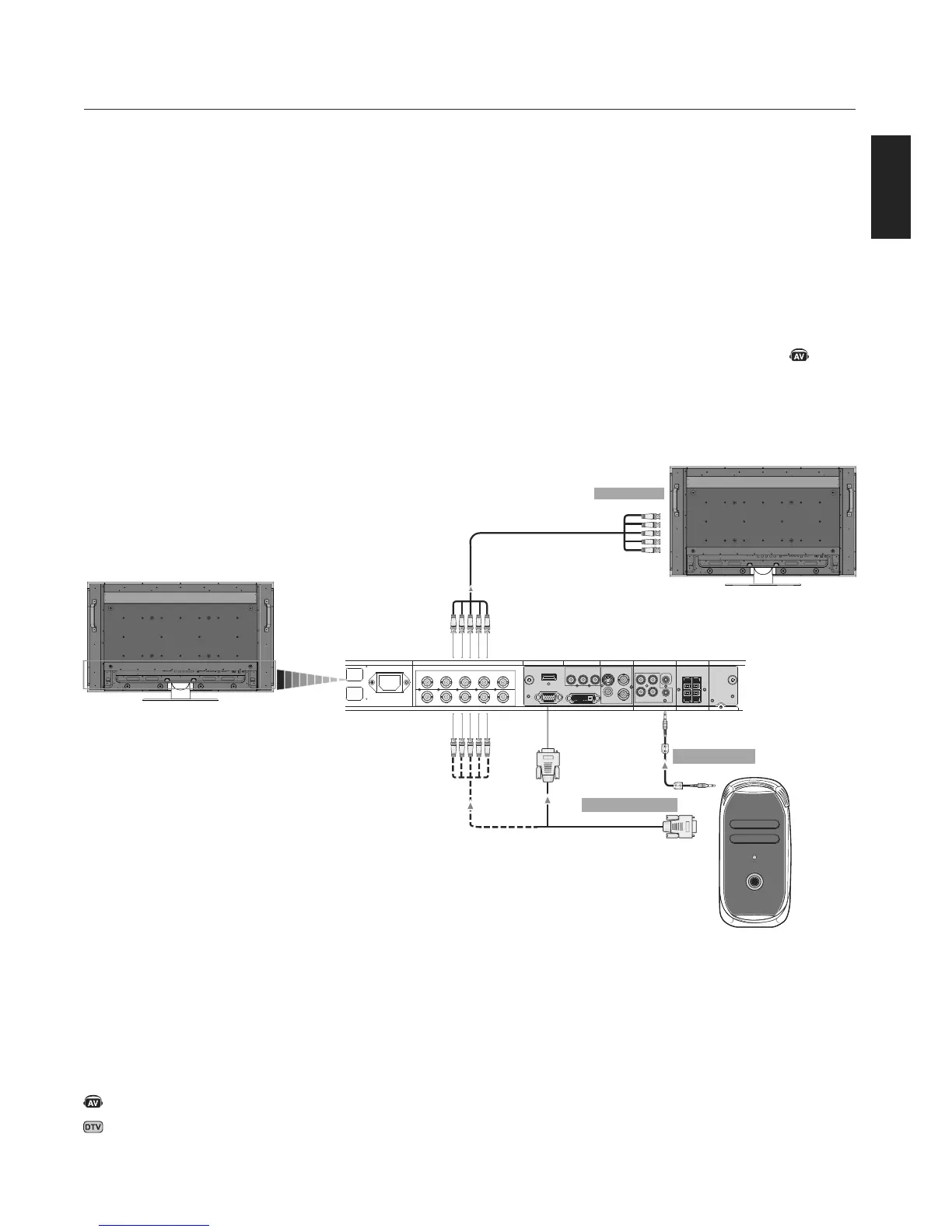

$POOFDUJPOT
#Yedj_dk[Z
LCD Monitor
(second monitor)
Mini D-sub 15 pin
BNC x 5
BNC x 5BNC x 5
LCD Monitor
To RGB/HV Input
From Analog RGB Output
Mini D-sub 15 pin
From Audio Output
Denotes AV unit function. All AV functions are enabled with the AV
unit is installed. Not all models have the AV unit installed.
Denotes Digital Tuner function. All DTV and AV functions are
enabled when the DTV unit is installed. Not all models will have
the digital tuner installed.
