Connections - continued
RGB/HV OUT
RGB/HV IN
VGA (D-SUB) DVI (DVI-D)
RGB/HV OUT
RGB/HV IN
VGA (D-SUB) DVI (DVI-D)
LCD Monitor
RCA
From HDMI Output
To DVD Component
video output

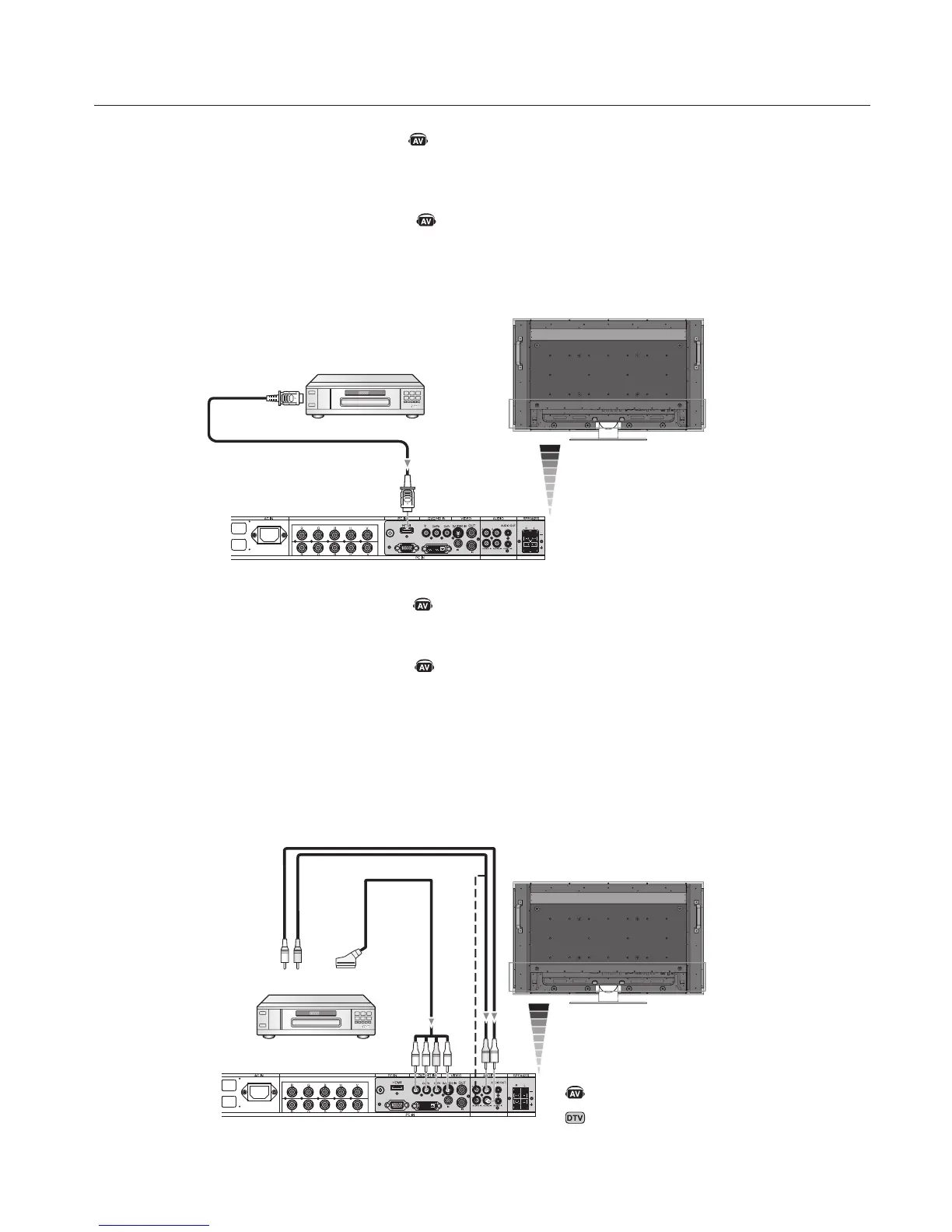

Connecting a DVD Player with HDMI out
Connecting your DVD player to your LCD monitor will enable you to display DVD video.
Refer to your DVD player user’s manual for more information.
Connect the LCD Monitor to a DVD Player
Please use an HDMI cable that has the HDMI logo.
It may take a few seconds to show the signal.
We do not support PC-DVI signals.
•
•
•
LCD Monitor
Connecting a DVD Player with SCART out
Connecting your DVD player to your LCD monitor will enable you to display SCART.
Connect the LCD Monitor to a DVD Player
To connect the DVD/HD IN connector (RCA) on the LCD monitor and connect the video (sync) and the Video In connector
(RCA), use a separately available RCA connector cable.
Some DVD players may have dierent connectors such as DVI-D connector.
Select [ON] mode from the “SCART MODE” menu when you use a SCART connector. Mode selection, see “SCART” on
p
age 31.
e AUDIO IN 2 and 3 (both RCA) can be used for audio input. For connection, select [IN1] or [IN3] from the AUDIO
I
NPUT button.
•
•
•
•
HDMI Connector
RCA
Left Audio
Right Audio
SCART
Denotes AV unit function. All AV functions are enabled with the AV
unit is installed. Not all models have the AV unit installed.
Denotes Digital Tuner function. All DTV and AV functions are
enabled when the DTV unit is installed. Not all models will have
the digital tuner installed.
