English-21
LCD Monitor
RCA
RCA
RCA
DVI-D Connector
To DVI Output
From DVD Compononent
V
ideo Output
Left Audio
Right Audio

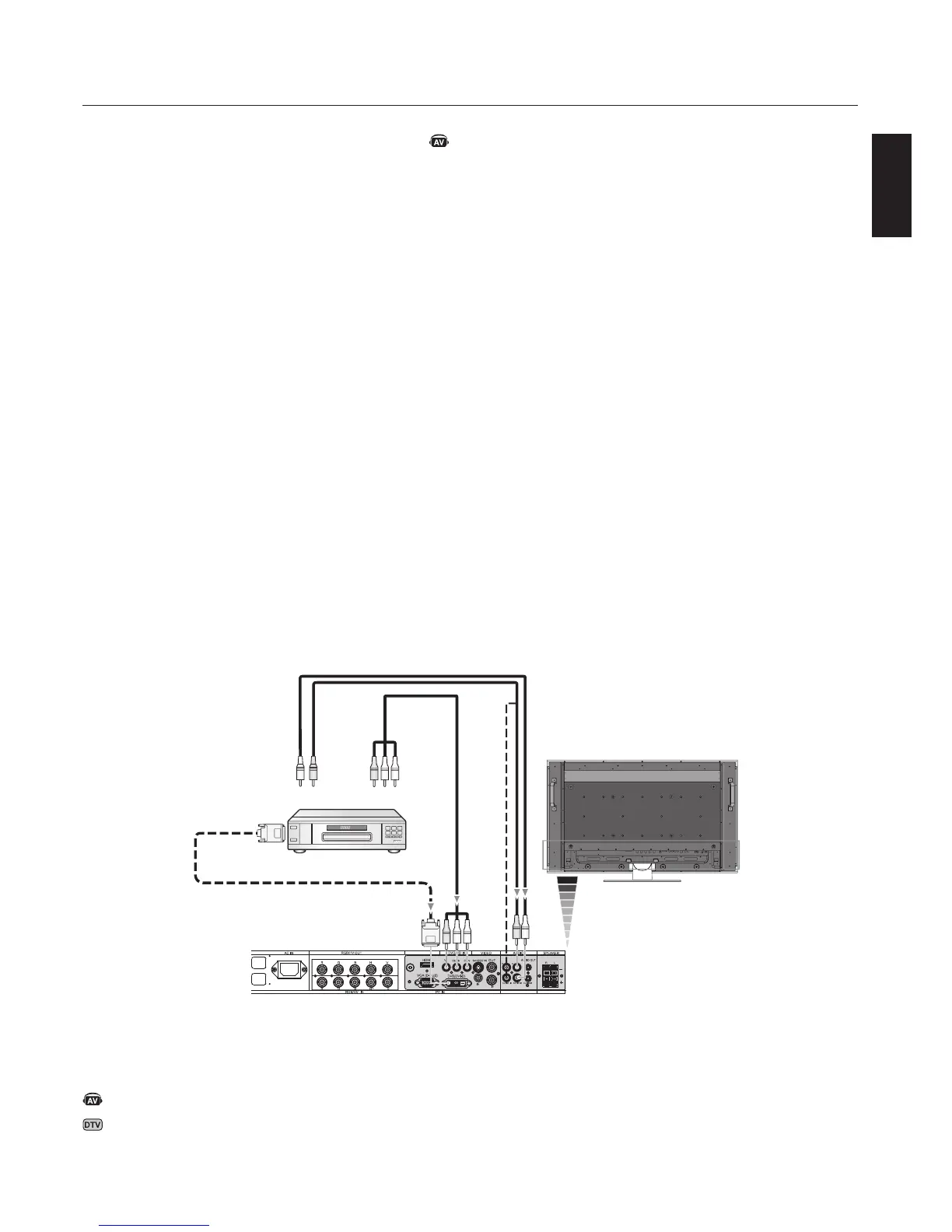

Connecting a DVD Player with component out
Connecting your DVD player to your LCD monitor will enable
you to display DVD video.
Refer to your DVD player user’s manual for more
information.
Connect the LCD Monitor to a DVD Player
T
o connect the DVD/HD IN connector (RCA) on the LCD
monitor, use a separately available RCA connector cable.
Some DVD players may have dierent connectors such as a
DVI-D connector.
Select [DVI/HD] mode from the “DVI MODE” menu when
you connect a DVI-D connector. For DVI Mode selection,
see “DVI MODE” on page 31.
e AUDIO IN1, 2, and 3 (both RCA) can be used for
audio input. For connection, select [IN1, IN2] or [IN3]
from the AUDIO INPUT button.
Connections - continued
Denotes AV unit function. All AV functions are enabled with the AV
unit is installed. Not all models have the AV unit installed.
Denotes Digital Tuner function. All DTV and AV functions are
enabled when the DTV unit is installed. Not all models will have
the digital tuner installed.
