NEC MultiSync P404 User Manual

English-8
Parts Name and Functions

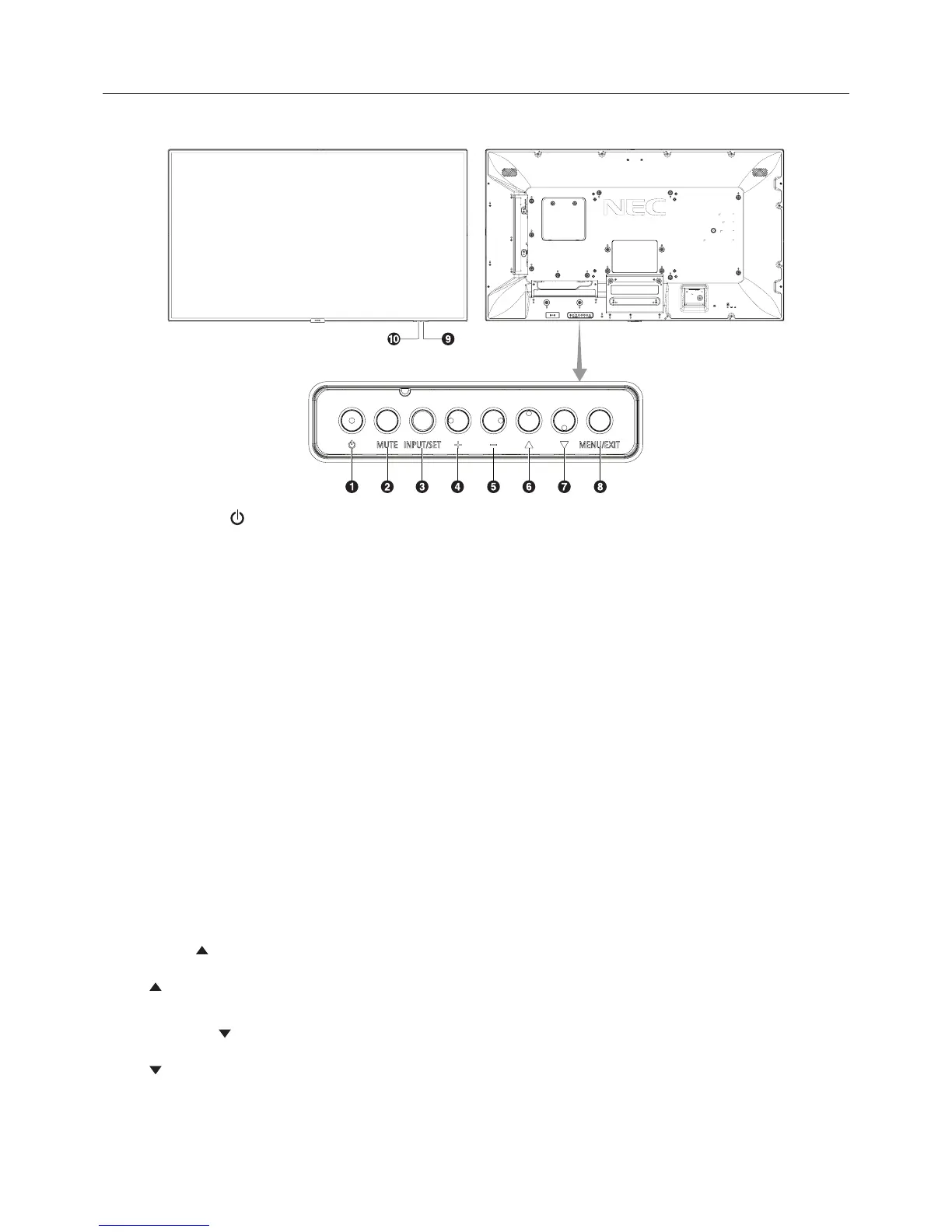

Control Panel
 POWER button ( )
Switches the power on/standby. See also page 18.
 MUTE button (MUTE)
Switches the audio mute on/off.
 INPUT/SET button (INPUT/SET)
Acts as SET/POINT ZOOM button within OSD menu.
(Toggle switches between [DVI], [HDMI1], [HDMI2],
[DisplayPort1], [DisplayPort2], [VGA (YPbPr)], [VGA (RGB)],
[VIDEO], [MP], [OPTION*]). These are available inputs only,
shown as their factory preset name.
*: This function depends on which option board you use.
 PLUS button (+)
1. Increases the audio output level when the OSD menu is
turned off.
2.
Acts as (+) button to increase the adjustment with OSD
menu.
 MINUS button (-)
1. Decreases the audio output level when the OSD menu is
turned off.
2. Acts as (-) button to decrease the adjustment with OSD
menu.
 UP button ( )
Activates the OSD menu when the OSD menu is turned off.
Acts as
button to move the highlighted area up to select
adjustment items within OSD menu.
 DOWN button ( )
Activates the OSD menu when the OSD menu is turned off.
Acts as
button to move the highlighted area down to select
adjustment items within OSD menu.
OSD is an abbreviation of On Screen Display.
 MENU/EXIT button (MENU/EXIT)
Activates the OSD menu when the OSD menu is turned off.
Acts as EXIT button within the OSD to move to previous
menu.
 Remote control sensor and Power Indicator
Receives the signal from the remote control (when using the
wireless remote control). See also page 12.
Glows blue when the LCD monitor is in active mode*.
Green and Amber blink alternately is the “SCHEDULE
SETTINGS” function enabled*
1
.
When a component failure is detected within the monitor, the
indicator will blink red or blink a combination of red and blue.
* If “OFF” is selected in the “POWER INDICATOR”
(see page 41), LED will not light when the LCD monitor is in
active mode.
*
1
If “OFF” is selected in the “SCHEDULE INDICATOR”
(see page 41), LED will not light.
NOTE: Please refer to the POWER INDICATOR
(see page 41).
 Room light sensing sensor
Detects the level of ambient light, allowing the monitor
to make automatic adjustments to the backlight setting,
resulting in a more comfortable viewing experience. Do not
cover this sensor. See page 41.

NEC MultiSync P404 Specifications

General

Panel life	- h
Panel type	SPVA
Pixel pitch	- mm
Response time	8 ms
Display diagonal	40 \
Display brightness	700 cd/m²
Display technology	LCD
Vertical scan range	24 - 85 Hz
Horizontal scan range	31.5 - 91.1 kHz
LED backlighting type	Edge-LED
Supported video modes	720p, 1080p
Contrast ratio (typical)	4000:1
Display number of colors	1.073 billion colors
Display diagonal (metric)	101.6 cm
Active display area (W x H)	885.6 x 498.2 mm
Supported graphics resolutions	640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1280 x 960, 1360 x 768 (WXGA), 1366 x 768, 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 1920 x 2160, 3840 x 2160, 4096 x 2160
USB version	2.0
USB ports quantity	5
DisplayPorts quantity	3
Compatible memory cards	MicroSD (TransFlash), MicroSDHC
Ethernet LAN data rates	100 Mbit/s
VGA (D-Sub) input ports	1
HDMI input ports quantity	2
Multi-display supported	-
Operating hours (hours/days)	24/7
Power consumption (standby)	3 W
Power consumption (typical)	90 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
Orientation	Horizontal/Vertical
Product color	Black
Product design	Digital signage flat panel
Bezel width (bottom)	13.2 mm
Panel mounting interface	300 x 300 mm
Sustainability certificates	RoHS, ENERGY STAR
Certification	C-tick; CE; EMC B; FCC; PSB; TÜV GS; UL/C-UL/CSA; VCCI
RMS rated power	20 W
Cables included	AC, DVI
Audio formats supported	MP3, WAV
Image formats supported	JPG, PNG
Video formats supported	FLV, H.264, MOV, MP4, MPEG1, MPEG2, MPG, WMV
Harmonized System (HS) code	85285210

Weight and Dimensions

Depth	54.7 mm
Width	918 mm
Height	530.6 mm
Weight	14500 g
