English-6

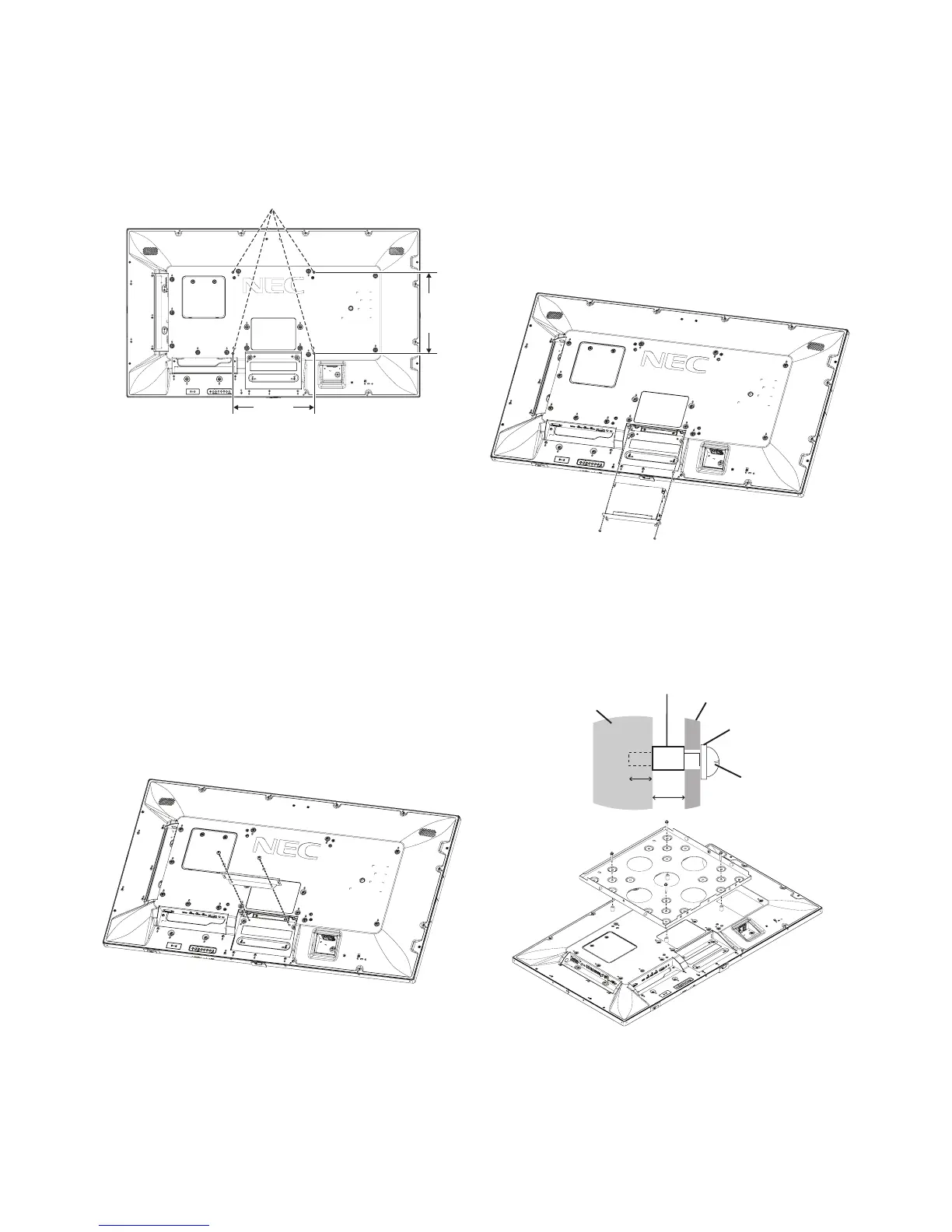

Attaching Mounting Accessories
The monitor is designed for use with the VESA mounting
system.
1. Attach Mounting Accessories
Be careful to avoid tipping monitor when attaching
accessories.
VESA Mounting Interface (M6)
300 mm
300 mm
Mounting accessories can be attached with the monitor in
the face down position. To avoid damaging the screen face,
place the protective sheet on the table underneath the LCD.
The protective sheet was wrapped around the LCD in the
original packaging. Make sure there is nothing on the table
that can damage the monitor.
When using mounting accessories other than NEC compliant
and approved, they must comply with the VESA-compatible
mounting method.
NOTE: Prior to installation, be sure to place the monitor
on a fl at area with adequate space.
2. Using Option Board
1. Turn off the main power switch.
2. Place the monitor face down on the protective sheet.
NOTE: Be sure to place the monitor on a fl at and adequate
space.
3. Remove the attached slot cover by unscrewing the
installed screws (Figure 1).
Figure 1
4. Insert the option board into the monitor and fi x it with the
removed screws (Figure 2).
NOTE: Please contact your supplier for available option
boards.
Do not apply excessive force to manipulate the
optional board before fi xing it with screws.
Make sure that the board is inserted into the slot in
the correct orientation.
CAUTION: Ensure the option board is attached by the
removed screws. As falling the option board may
expose you to danger.
(Recommended Fasten Force: 139 - 189N•cm).
Figure 2
3. Using Wall Mount Adapter
If the mounting accessory interferes with ventilation hole, use
the included wall mount adaptors (Dia. 14 mm) and screws.
If the adaptor screws are too long, include a washer to
reduce the depth. Washer not included.
Wall mount
adapter screw
Washer
Mounting bracket
Unit
Wall mount adapter (Dia. 14 mm)
10-12 mm
18 mm
Pictured mounting solutions may not be available in some
countries.
