NEC MultiSync P404 User Manual

English-15
English
Connections
NOTE: Do not connect or disconnect cables when turning on the monitor’s main power or other external equipment’s power
as this may result in a loss of the monitor image.
NOTE: Use an audio cable without a built-in resistor. Using an audio cable with a built-in resistor turns down the sound.
Before making connections:
* First turn off the power of all the attached equipment and make connections.
* Refer to the user’s manual included with each separate piece of equipment.
* Connecting or disconnecting a USB storage device or a microSD memory card to the monitor when the monitor’s main
power is off.

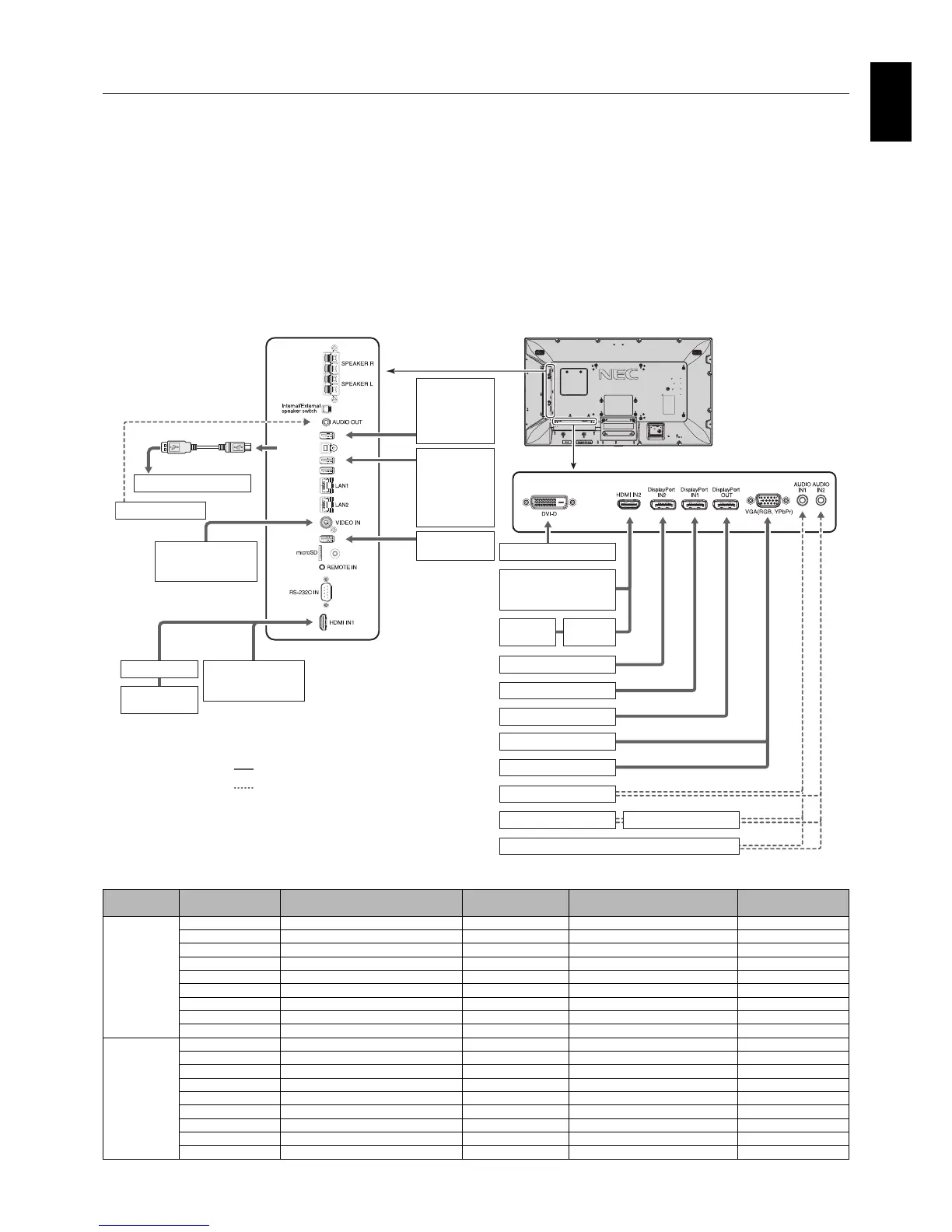

Wiring Diagram
USB1
USB2
USB CM1 (2A)
USB CM2
USB MP
Solid lines = video signal
Dotted lines = audio signal
VCR Player or
DVD Player (Video)
Stereo Amplifi er
USB port
USB port
(Type-A)
(Type-A)
USB devices
such as
USB camera or
USB memory
Devices that
require power
supply:
Ex: MP-02,
Multi presenter
stick
USB storage
device
USB port
USB port
(Type-
(Type-
B
B
)
)
USB cable
Computer (USB)*
1
AV Amplifi er
DVD Player
(HDMI)
DVD Player or
Computer
Computer (Digital)
DVD Player (HDMI) or
Computer (HDMI)
DVD Player
(HDMI)
AV
Amplifi er
Computer (DisplayPort)
Computer (DisplayPort)
Second monitor*
Computer (Analog)
Computer
DVD Player (component)
DVD Player Stereo Amplifi er
VCR player or DVD player
*: Multiple monitors that are daisy-chained have a limit to the connectable monitors.
*1: The device connected to USB2 can control the device connected to USB1.
Connected
equipment
Connecting
terminal
Setting in
TERMINAL SETTINGS
Input signal name Connecting audio terminal
Input button in
remote control
AV
DVI (DVI-D) DVI MODE: DVI-HD DVI IN1/IN2 DVI
HDMI1 VIDEO LEVEL: RAW/EXPAND*
2
HDMI1 HDMI1 HDMI1
HDMI2 VIDEO LEVEL: RAW/EXPAND*
2
HDMI2 HDMI2 HDMI2
DisplayPort 1 VIDEO LEVEL: RAW/EXPAND*
2
DisplayPort 1 DisplayPort 1 DisplayPort 1
DisplayPort 2 VIDEO LEVEL: RAW/EXPAND*
2
DisplayPort 2 DisplayPort 2 DisplayPort 2
VGA (D-sub) VGA MODE: RGB VGA (RGB) IN1/IN2 VGA (RGB/YPbPr)
VGA (D-sub) VGA MODE: YPbPr VGA (YPbPr) IN1/IN2 VGA (RGB/YPbPr)
VIDEO (RCA) — VIDEO IN1/IN2 VIDEO
OPTION (SLOT2) VIDEO LEVEL: RAW/EXPAND*
2
OPTION OPTION (ANALOG/DIGITAL)*
2
OPTION
PC
DVI (DVI-D) DVI MODE: DVI-PC/DVI-HD DVI IN1/IN2 DVI
HDMI1 VIDEO LEVEL: RAW/EXPAND*
2
HDMI1 HDMI1 HDMI1
HDMI2 VIDEO LEVEL: RAW/EXPAND*
2
HDMI2 HDMI2 HDMI2
DisplayPort 1 VIDEO LEVEL: RAW/EXPAND*
2
DisplayPort 1 DisplayPort 1 DisplayPort 1
DisplayPort 2 VIDEO LEVEL: RAW/EXPAND*
2
DisplayPort 2 DisplayPort 2 DisplayPort 2
VGA (D-sub) VGA MODE: RGB VGA (RGB) IN1/IN2 VGA (RGB/YPbPr)
VGA (D-sub) VGA MODE: YPbPr VGA (YPbPr) IN1/IN2 VGA (RGB/YPbPr)
VIDEO (RCA) — VIDEO IN1/IN2 VIDEO
OPTION (SLOT2) VIDEO LEVEL: RAW/EXPAND*
2
OPTION OPTION (ANALOG/DIGITAL)*
2
OPTION
*2: Please set appropriate setting for input signal.

NEC MultiSync P404 Specifications

General

Panel life	- h
Panel type	SPVA
Pixel pitch	- mm
Response time	8 ms
Display diagonal	40 \
Display brightness	700 cd/m²
Display technology	LCD
Vertical scan range	24 - 85 Hz
Horizontal scan range	31.5 - 91.1 kHz
LED backlighting type	Edge-LED
Supported video modes	720p, 1080p
Contrast ratio (typical)	4000:1
Display number of colors	1.073 billion colors
Display diagonal (metric)	101.6 cm
Active display area (W x H)	885.6 x 498.2 mm
Supported graphics resolutions	640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1280 x 960, 1360 x 768 (WXGA), 1366 x 768, 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 1920 x 2160, 3840 x 2160, 4096 x 2160
USB version	2.0
USB ports quantity	5
DisplayPorts quantity	3
Compatible memory cards	MicroSD (TransFlash), MicroSDHC
Ethernet LAN data rates	100 Mbit/s
VGA (D-Sub) input ports	1
HDMI input ports quantity	2
Multi-display supported	-
Operating hours (hours/days)	24/7
Power consumption (standby)	3 W
Power consumption (typical)	90 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
Orientation	Horizontal/Vertical
Product color	Black
Product design	Digital signage flat panel
Bezel width (bottom)	13.2 mm
Panel mounting interface	300 x 300 mm
Sustainability certificates	RoHS, ENERGY STAR
Certification	C-tick; CE; EMC B; FCC; PSB; TÜV GS; UL/C-UL/CSA; VCCI
RMS rated power	20 W
Cables included	AC, DVI
Audio formats supported	MP3, WAV
Image formats supported	JPG, PNG
Video formats supported	FLV, H.264, MOV, MP4, MPEG1, MPEG2, MPG, WMV
Harmonized System (HS) code	85285210

Weight and Dimensions

Depth	54.7 mm
Width	918 mm
Height	530.6 mm
Weight	14500 g
