English-9
English

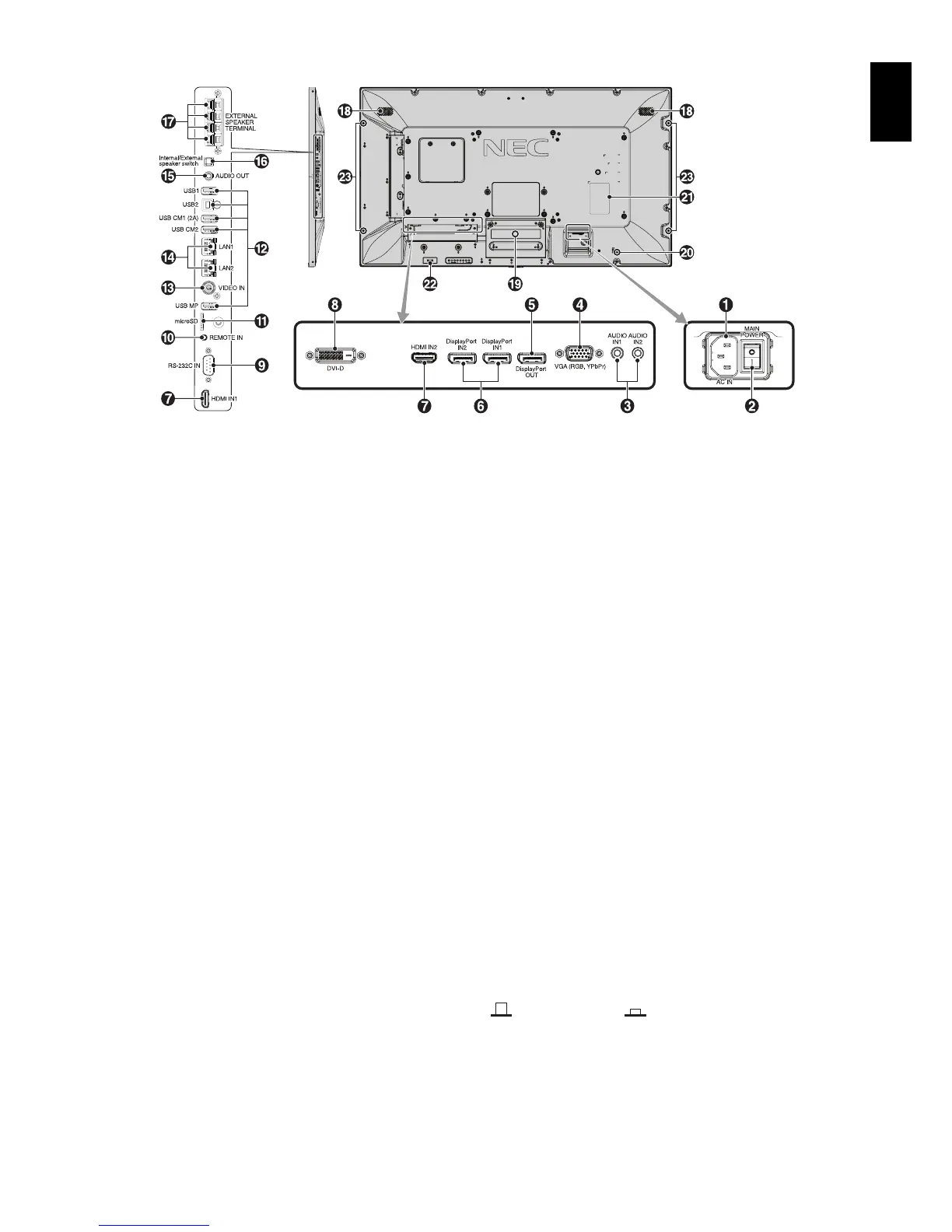

Terminal Panel
USB Upstream
AC IN connector
Connects with the supplied power cord.
Main Power Switch
On/Off switch to turn main power ON/OFF.
AUDIO IN1/IN2
To input audio signal from external equipment such as a
computer or player.
VGA IN (mini D-Sub 15 pin)
To input analog RGB signals from a personal computer or
from other RGB equipment. This input can be used with
an RGB or YPbPr source. Please select signal type in
TERMINAL SETTINGS. See page 36.
NOTE: When you use this connector for YPbPr, please use a
suitable signal cable. If you have any questions, please ask
your supplier.
DisplayPort OUT
To output DisplayPort signals.
Outputs DisplayPort1 signal.
DisplayPort IN1/IN2
To input DisplayPort signals.
HDMI IN1/IN2
To input digital HDMI signals.
DVI IN (DVI-D)
To input digital RGB signals from a computer or HDTV device
having a digital RGB output.
* This connector does not support analog input.
RS-232C IN (D-Sub 9 pin)
Connect RS-232C input from external equipment such as a
computer in order to control RS-232C functions.
REMOTE IN
Use the optional sensor unit by connecting it to your monitor.
NOTE: Do not use this connector unless specifi ed.
microSD card slot
Insert a microSD memory card. To use Media player, please
connect a microSD memory card to this port (See page 17).
To install the microSD card slot cover, please refer to
“Installing microSD card slot cover” (See page 22).
USB port
USB1: Downstream port (USB Type-A).
To connect USB devices.
USB2: Upstream port (USB Type-B).
To connect external equipment such as a
computer. To control the monitor from connected
external equipment, please use this port.
USB CM1 (2A): Power supply port.
USB CM2: Service port. This port is for future software
upgrades.
USB MP: USB storage device port.
To use Media player, please connect USB
storage device to this port (See page 17).
MP is an abbreviation of Media Player.
VIDEO IN
To input a composite video signal.
LAN port IN1/IN2 (RJ-45)
LAN connection. See page 46 and 49.
NOTE: Please give priority for use to LAN1.
AUDIO OUT
To output the audio signal from the AUDIO IN1/IN2,
DisplayPort and HDMI to an external device (stereo receiver,
amplifi er, etc.).
This connector does not support Headphone terminal.
Internal/External speaker switch
: Internal speaker : External speaker.
NOTE: Please turn off the monitor’s main power when you
use the Internal/External speaker switch.
