NEC MultiSync P404 User Manual

English-48
1) Interface
PROTOCOL RS-232C
BAUD RATE 9600 [bps]
DATA LENGTH 8 [bits]
PARITY NONE
STOP BIT 1 [bit]
FLOW CONTROL NONE
This LCD monitor uses RXD, TXD and GND lines for RS-232C control.
The reverse type cable (null modem cable) (not include) should be used for RS-232C control.

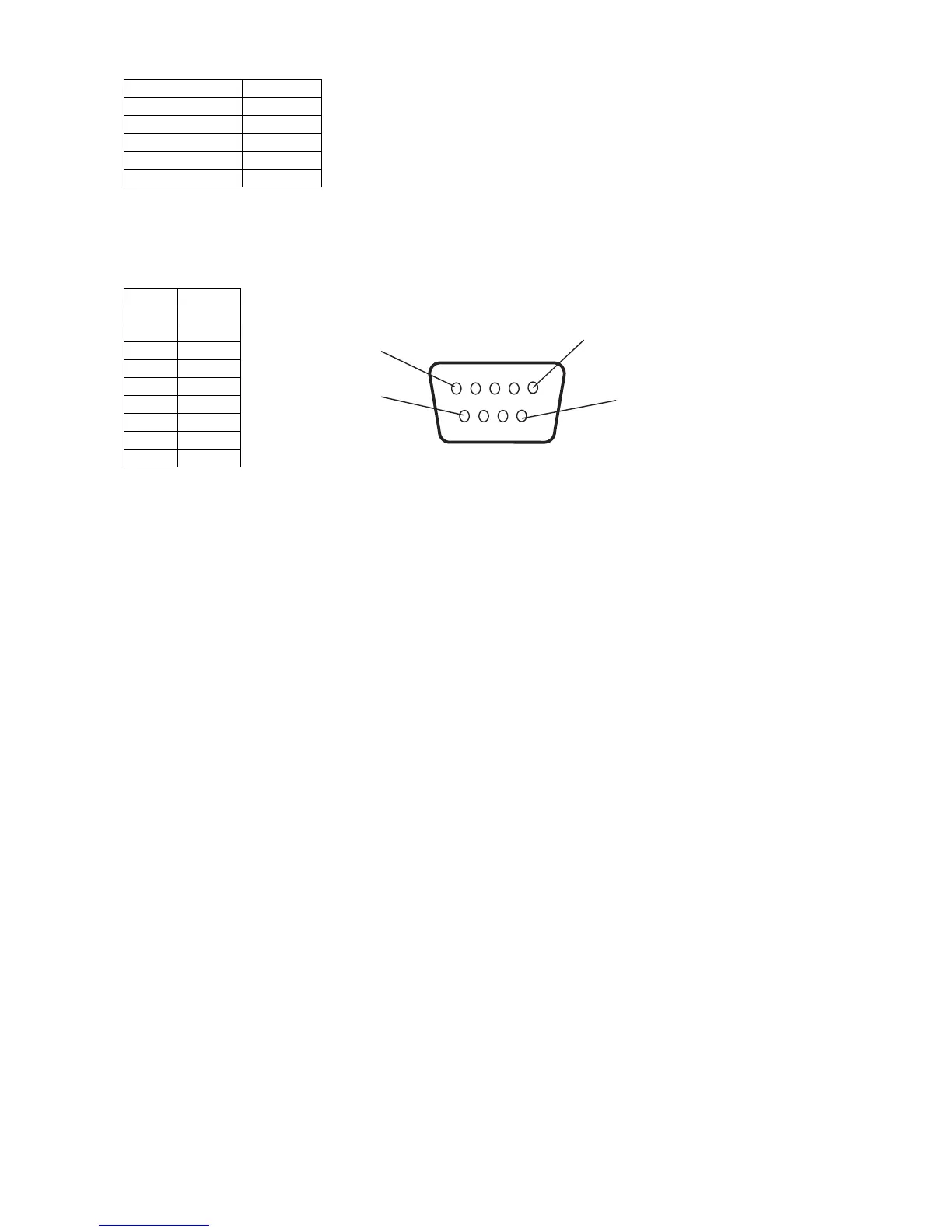

2) PIN ASSIGNMENT
RS-232C input/output
1
6
5
9
D-SUB 9P (Monitor side)
Pin No Name
1NC
2 RXD
3 TXD
4NC
5 GND
6NC
7NC
8NC
9NC
This LCD monitor uses RXD, TXD and GND lines for RS-232C control.

NEC MultiSync P404 Specifications

General

Panel life	- h
Panel type	SPVA
Pixel pitch	- mm
Response time	8 ms
Display diagonal	40 \
Display brightness	700 cd/m²
Display technology	LCD
Vertical scan range	24 - 85 Hz
Horizontal scan range	31.5 - 91.1 kHz
LED backlighting type	Edge-LED
Supported video modes	720p, 1080p
Contrast ratio (typical)	4000:1
Display number of colors	1.073 billion colors
Display diagonal (metric)	101.6 cm
Active display area (W x H)	885.6 x 498.2 mm
Supported graphics resolutions	640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1280 x 960, 1360 x 768 (WXGA), 1366 x 768, 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 1920 x 2160, 3840 x 2160, 4096 x 2160
USB version	2.0
USB ports quantity	5
DisplayPorts quantity	3
Compatible memory cards	MicroSD (TransFlash), MicroSDHC
Ethernet LAN data rates	100 Mbit/s
VGA (D-Sub) input ports	1
HDMI input ports quantity	2
Multi-display supported	-
Operating hours (hours/days)	24/7
Power consumption (standby)	3 W
Power consumption (typical)	90 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
Orientation	Horizontal/Vertical
Product color	Black
Product design	Digital signage flat panel
Bezel width (bottom)	13.2 mm
Panel mounting interface	300 x 300 mm
Sustainability certificates	RoHS, ENERGY STAR
Certification	C-tick; CE; EMC B; FCC; PSB; TÜV GS; UL/C-UL/CSA; VCCI
RMS rated power	20 W
Cables included	AC, DVI
Audio formats supported	MP3, WAV
Image formats supported	JPG, PNG
Video formats supported	FLV, H.264, MOV, MP4, MPEG1, MPEG2, MPG, WMV
Harmonized System (HS) code	85285210

Weight and Dimensions

Depth	54.7 mm
Width	918 mm
Height	530.6 mm
Weight	14500 g
