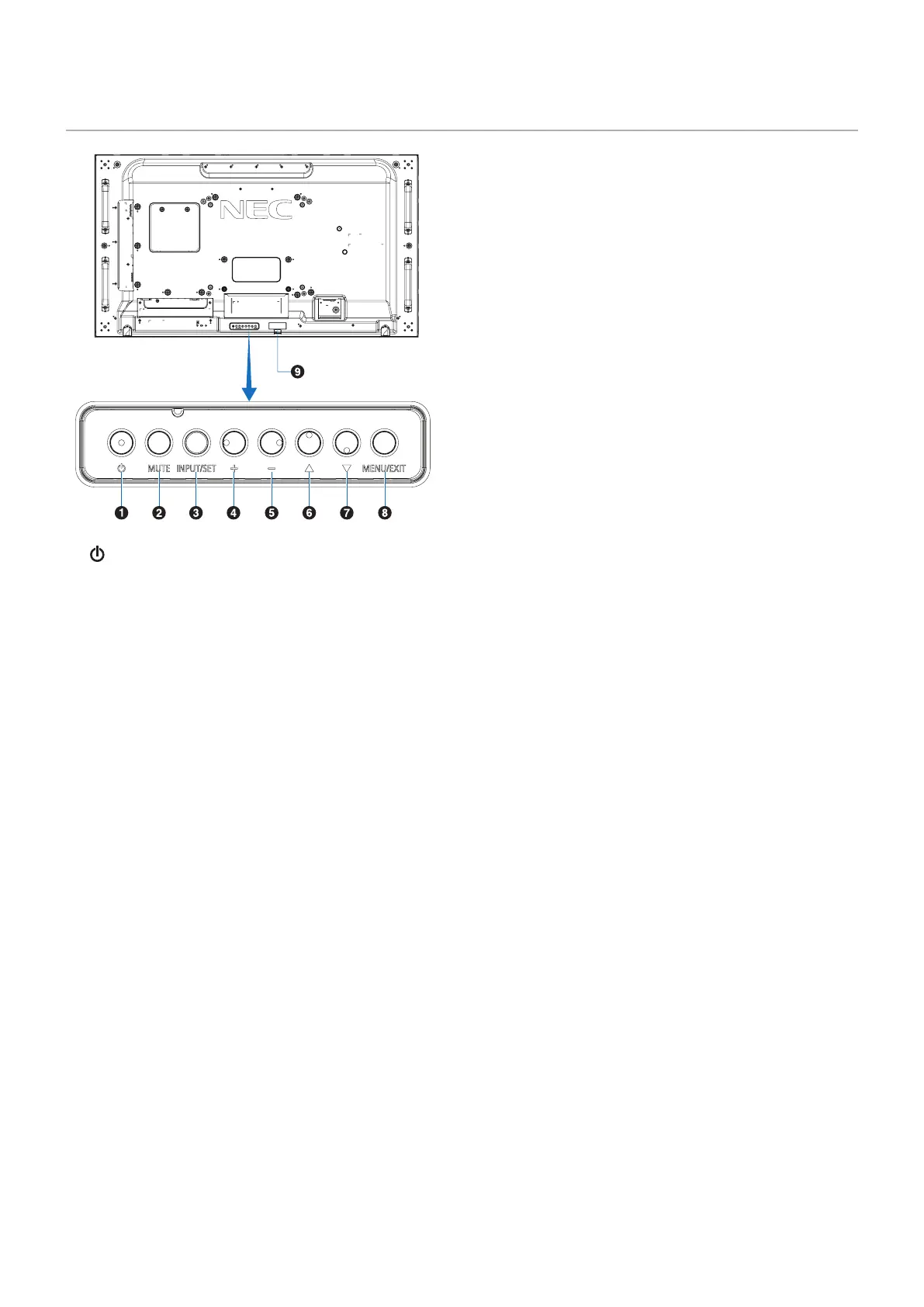

Control Panel
A Button (power button)
Switches between power on and standby. See page 32.
B MUTE Button
Switches the audio mute on/off.
C INPUT/SET Button
INPUT: Cycles through the available inputs when the OSD
menu is turned off. See
page 25 and page 27.
[DVI], [HDMI1], [HDMI2], [DisplayPort1],
[DisplayPort2], [VGA (YPbPr/RGB)], [VIDEO], [MP],
[OPTION]*
1
, [COMPUTE MODULE]*
2
. These are
available inputs only, shown as their factory preset
name.
NOTE: MP is an abbreviation of Media Player.
SET: Acts as a set button when making a selection when the
OSD menu is open.
*
1
: This function depends on which Option Board installed in the monitor.
*
2
: This input is available when the optional Raspberry Pi Compute Module
Interface Board and Raspberry Pi Compute Module are installed.
See page 98.
D + Button (plus button)
Increases the audio output level when the OSD menu is
turned off.
Acts to move the highlighted area to the right when
navigating through the OSD menu options.
Acts as plus button to increase the adjustment of an OSD
menu option after it has been selected with the [INPUT/SET]
button.
E - Button (minus button)
Decreases the audio output level when the OSD menu is
turned off.
Acts to move the highlighted area to the left when navigating
through the OSD menu options.
Acts as minus button to decrease the adjustment of an OSD
menu option after it has been selected with the [INPUT/SET]
button.
F r Button (up button)
Activates the OSD menu when the OSD menu is turned off.
Acts as up button to move the highlighted area up to select
adjustment items within the OSD menu.
G s Button (down button)
Activates the OSD menu when the OSD menu is turned off.
Acts as down button to move the highlighted area down to
select adjustment items within the OSD menu.
H MENU/EXIT Button
Activates the OSD menu when the OSD menu is turned off.
Acts as a back button within the OSD to move to the
previous OSD menu.
Acts as an exit button to close the OSD when on the main
menu.
I Remote Control Sensor and Power Indicator
Receives the signal from the remote control (when using the
wireless remote control). See page 33.
Glows blue when the monitor is in active mode*
1
.
Green and Amber blink alternately when the [SCHEDULE
SETTINGS] function is enabled*
2
.
When a component failure is detected within the monitor, the
indicator will blink red or blink a combination of red and blue.
Please refer to the Power ON and OFF Modes table on
page 32.
*1
: If [OFF] is selected in the [POWER INDICATOR] the LED will not glow
when the monitor is in active mode. See page 120.
*2
: If [OFF] is selected in the [SCHEDULE INDICATOR], the LED will not
blink. See page 120.
