Multi-Picture Mode
Multi-Picture mode lets you see video input from two different sources. The secondary input can be viewed in a inset window on
the main video (Picture-In-Picture), or the two inputs can be viewed next to each other (Picture-By-Picture).
The instructions in this section guide you through configuring Multi-Picture Mode in the monitor’s OSD menu. These settings can
also be configured using the monitor’s web controls. The function names and location in the web controls are the same as the
OSD menu. See
page 83.
To enable multi-picture mode:
1. Press the MENU button on the remote control to bring up on the On Screen Display (OSD).
2. Navigate through the OSD menu to [MULTI-INPUT] ➙ [MULTI PICTURE MODE], select [ON], and then choose either [PIP]
or [PBP].

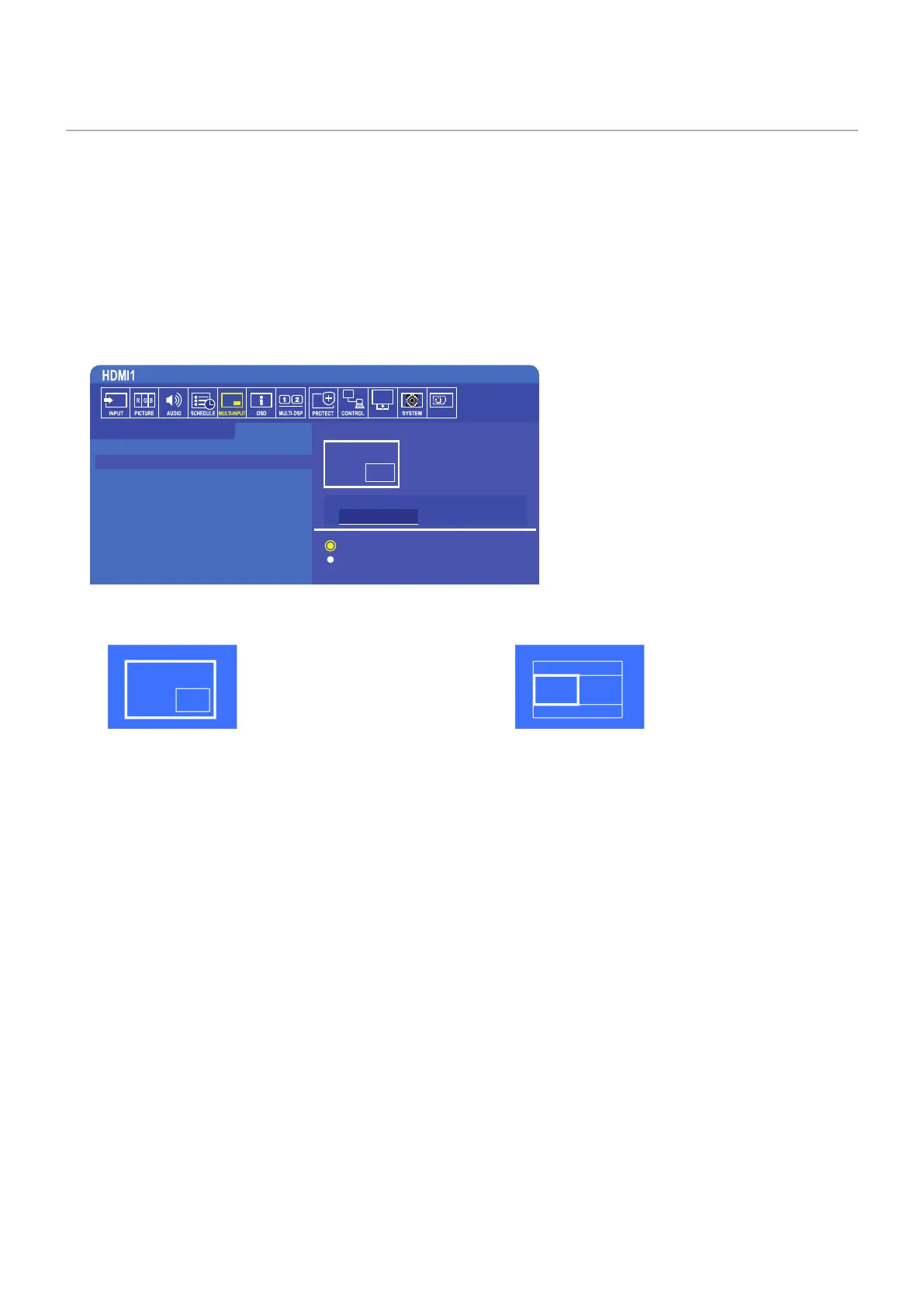

OPTION C MODULE
MULTI INPUT:
KEEP MULTI PICTURE MODE
MULTI PICTURE MODE
ACTIVE PICTURE
INPUT SELECT
PICTURE SIZE
PICTURE POSITION
PICTURE ASPECT
TEXT TICKER
INPUT DETECT
INPUT CHANGE
MULTI PICTURE
ON / OFF
PIP
PBP
• PIP (Picture-In-Picture) — select this option to have a
second input viewed in a subset window.
• PBP (Picture-By-Picture) — select this option to have
the two inputs viewed next to each other.
PIP (Picture-In-Picture) settings:
1. Navigate to [INPUT SELECT] on the OSD.
• Select an input source for Picture1 (main input) and Picture2 (secondary input).
2. Navigate to [ACTIVE PICTURE] on the OSD.
• Change the Active Picture to [PICTURE2].
The Picture Size, Position, and Aspect functions are for configuring the settings of the sub-picture window (Picture2).
They will remain disabled as long as [PICTURE1] is the active picture.
• Active Frame is the red frame shown around the currently selected Active Picture area when the OSD menu is open.
This frame can be turned on or off on this menu. When multi-picture mode is enabled, the red frame makes it easy to see
which picture is active when making changes in other areas of the Multi-Input OSD menu.
3. You can now adjust the settings for sub-picture window.
• Picture Size — use the + or – remote control buttons to increase or reduce the size of the sub-picture.
• Picture Position — use the + or – remote control buttons to move the sub-picture window.
• Picture Aspect — adjust the aspect ratio for the sub-picture window.

NEC MultiSync UN552V Specifications

General

Pixel pitch	0.63 x 0.63 mm
Response time	8 ms
Display diagonal	55 \
Display brightness	500 cd/m²
Display technology	LED
Native aspect ratio	16:9
Vertical scan range	23 - 86 Hz
Horizontal scan range	26 - 134 kHz
Contrast ratio (typical)	1700:1
Display diagonal (metric)	138.78 cm
Active display area (W x H)	1209.63 x 680.34 mm
Operating hours (hours/days)	24/7
Maximum refresh rate	60 Hz
Annual energy consumption	328 kWh
Purpose	Universal
Orientation	Horizontal/Vertical
Product color	Black
Product design	Video wall
Placement supported	Indoor
Bezel width (bottom)	0.44 mm
Panel mounting interface	400 x 400 mm
USB ports quantity	5
DisplayPorts quantity	3
Compatible memory cards	MicroSD (TransFlash)
Ethernet LAN data rates	10, 100 Mbit/s
VGA (D-Sub) input ports	1
HDMI input ports quantity	2
Audio formats supported	AAC, MP3, WAV
Image formats supported	JPG, PNG
Video formats supported	FLV, H.264, MOV, MP4, MPG, WMV
Power consumption (standby)	0.5 W
Power consumption (typical)	225 W
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	20 - 80 %
Certification	BSMI; CE; EAC; EMC B; FCC; PSB; RCM; REACH; RoHS; SASO; TÜV GS; TÜV S; UL/C-UL; VCCI
Sustainability certificates	RoHS
Cables included	AC, DisplayPort, HDMI
Harmonized System (HS) code	85285210

Weight and Dimensions

Depth	98.6 mm
Width	1210.5 mm
Height	681.2 mm
Weight	25800 g
