NEC MultiSync UN552V User Manual

English−24

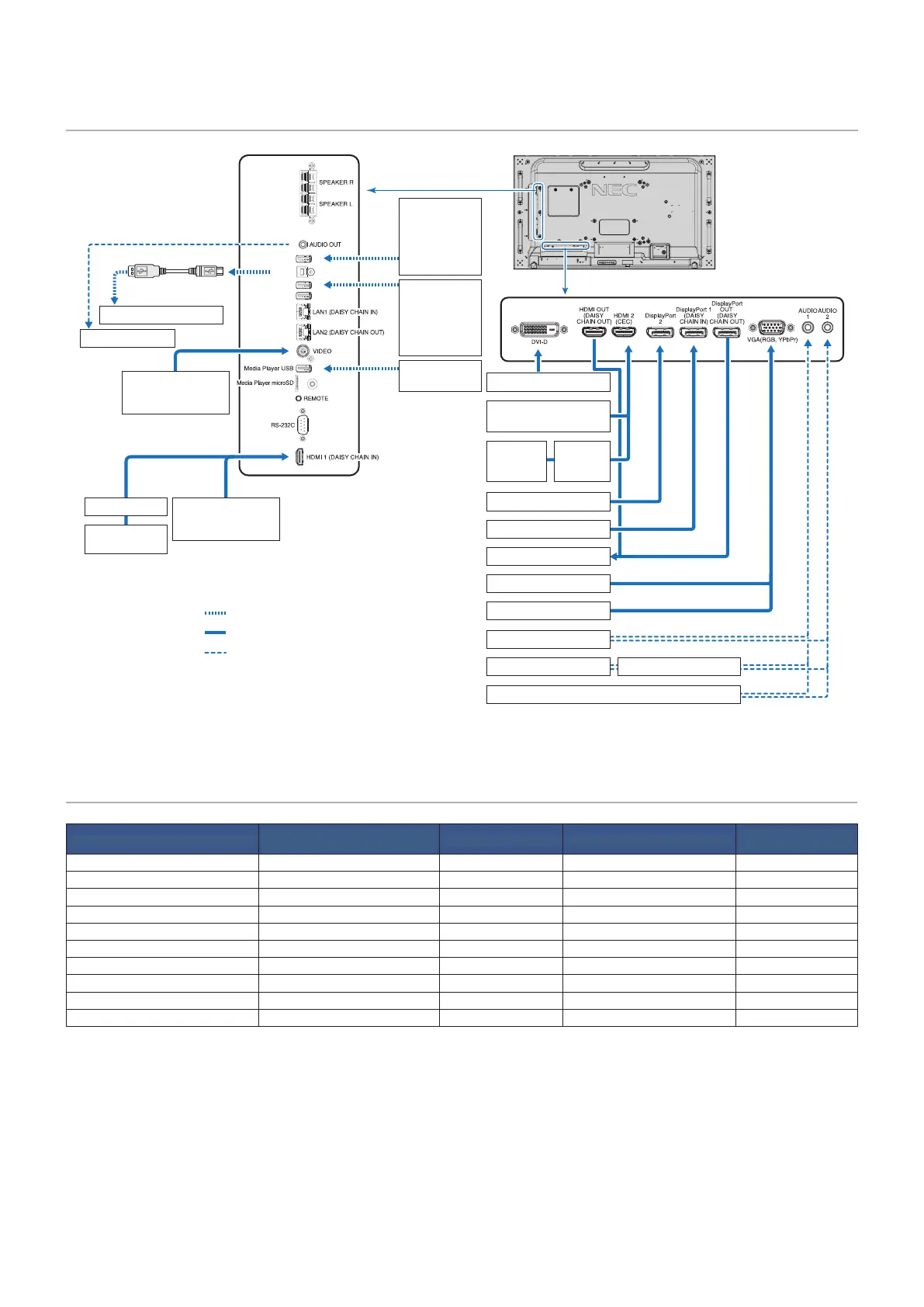

Wiring Diagram
USB1 (SENSOR)
USB2
USB CM1 (2A)
USB CM2
AUDIO
1
Dotted lines = other signal
Solid lines = video signal
Dashed lines = audio signal
VCR Player or
DVD Player (Video)
Stereo Amplifier
USB port
(Type-A)
USB devices
such as a
USB camera,
USB storage
device or USB
color sensor
Devices that
require power
supply:
Ex: Multi
Presenter stick
USB storage
device
USB port
(Type-B)
USB cable
Computer (USB)*
1
AV Amplifier
Blu-ray or DVD
Player (HDMI)
HDMI video player or
Computer (HDMI)
Computer (Digital)
HDMI video player or
Computer (HDMI)
Blu-ray or
DVD Player
(HDMI)
AV
Amplifier
Computer (DisplayPort)
Computer (DisplayPort)
Second monitor*
Computer (Analog)
Computer
DVD Player (component)
DVD Player Stereo Amplifier
VCR player or DVD player
*: Multiple monitors that are daisy-chained have a limit to the number of connectible monitors. See page 70.
*
1
: The device connected to USB2 can control the device connected to USB1 (SENSOR). See the “Connecting a USB Device” on page 30.
Connections
Connecting terminal
Setting in
TERMINAL SETTINGS
Input signal name Connecting audio terminal
Input button in remote
control
DVI (DVI-D) DVI MODE: DVI-PC/DVI-HD DVI IN1/IN2 DVI
HDMI1 (DAISY CHAIN IN) VIDEO LEVEL: RAW/EXPAND*
2
HDMI1 HDMI1 HDMI1
HDMI2 (CEC) VIDEO LEVEL: RAW/EXPAND*
2
HDMI2 HDMI2 HDMI2
DisplayPort 1 (DAISY CHAIN IN) VIDEO LEVEL: RAW/EXPAND*
2
DisplayPort 1 DisplayPort 1 DisplayPort 1
DisplayPort 2 VIDEO LEVEL: RAW/EXPAND*
2
DisplayPort 2 DisplayPort 2 DisplayPort 2
VGA (RGB, YPbPr) VGA MODE: RGB/YPbPr VGA: RGB/YPbPr IN1/IN2 VGA (RGB/YPbPr)
VIDEO — VIDEO IN1/IN2 VIDEO
Option Board Slot (SLOT2) VIDEO LEVEL: RAW/EXPAND*
2
OPTION OPTION (ANALOG/DIGITAL)*
2
OPTION
Media Player USB/microSD — MP Media Player USB/microSD MEDIA PLAYER
Raspberry Pi Compute Module slot VIDEO LEVEL: RAW/EXPAND*
2
COMPUTE MODULE COMPUTE MODULE COMPUTE MODULE
*
2
: Please set appropriate setting for input signal.

NEC MultiSync UN552V Specifications

General

Pixel pitch	0.63 x 0.63 mm
Response time	8 ms
Display diagonal	55 \
Display brightness	500 cd/m²
Display technology	LED
Native aspect ratio	16:9
Vertical scan range	23 - 86 Hz
Horizontal scan range	26 - 134 kHz
Contrast ratio (typical)	1700:1
Display diagonal (metric)	138.78 cm
Active display area (W x H)	1209.63 x 680.34 mm
Operating hours (hours/days)	24/7
Maximum refresh rate	60 Hz
Annual energy consumption	328 kWh
Purpose	Universal
Orientation	Horizontal/Vertical
Product color	Black
Product design	Video wall
Placement supported	Indoor
Bezel width (bottom)	0.44 mm
Panel mounting interface	400 x 400 mm
USB ports quantity	5
DisplayPorts quantity	3
Compatible memory cards	MicroSD (TransFlash)
Ethernet LAN data rates	10, 100 Mbit/s
VGA (D-Sub) input ports	1
HDMI input ports quantity	2
Audio formats supported	AAC, MP3, WAV
Image formats supported	JPG, PNG
Video formats supported	FLV, H.264, MOV, MP4, MPG, WMV
Power consumption (standby)	0.5 W
Power consumption (typical)	225 W
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	20 - 80 %
Certification	BSMI; CE; EAC; EMC B; FCC; PSB; RCM; REACH; RoHS; SASO; TÜV GS; TÜV S; UL/C-UL; VCCI
Sustainability certificates	RoHS
Cables included	AC, DisplayPort, HDMI
Harmonized System (HS) code	85285210

Weight and Dimensions

Depth	98.6 mm
Width	1210.5 mm
Height	681.2 mm
Weight	25800 g
