English−72
• Video daisy chaining.
We strongly recommend using the same monitor model for all monitors in the connected daisy-chain.

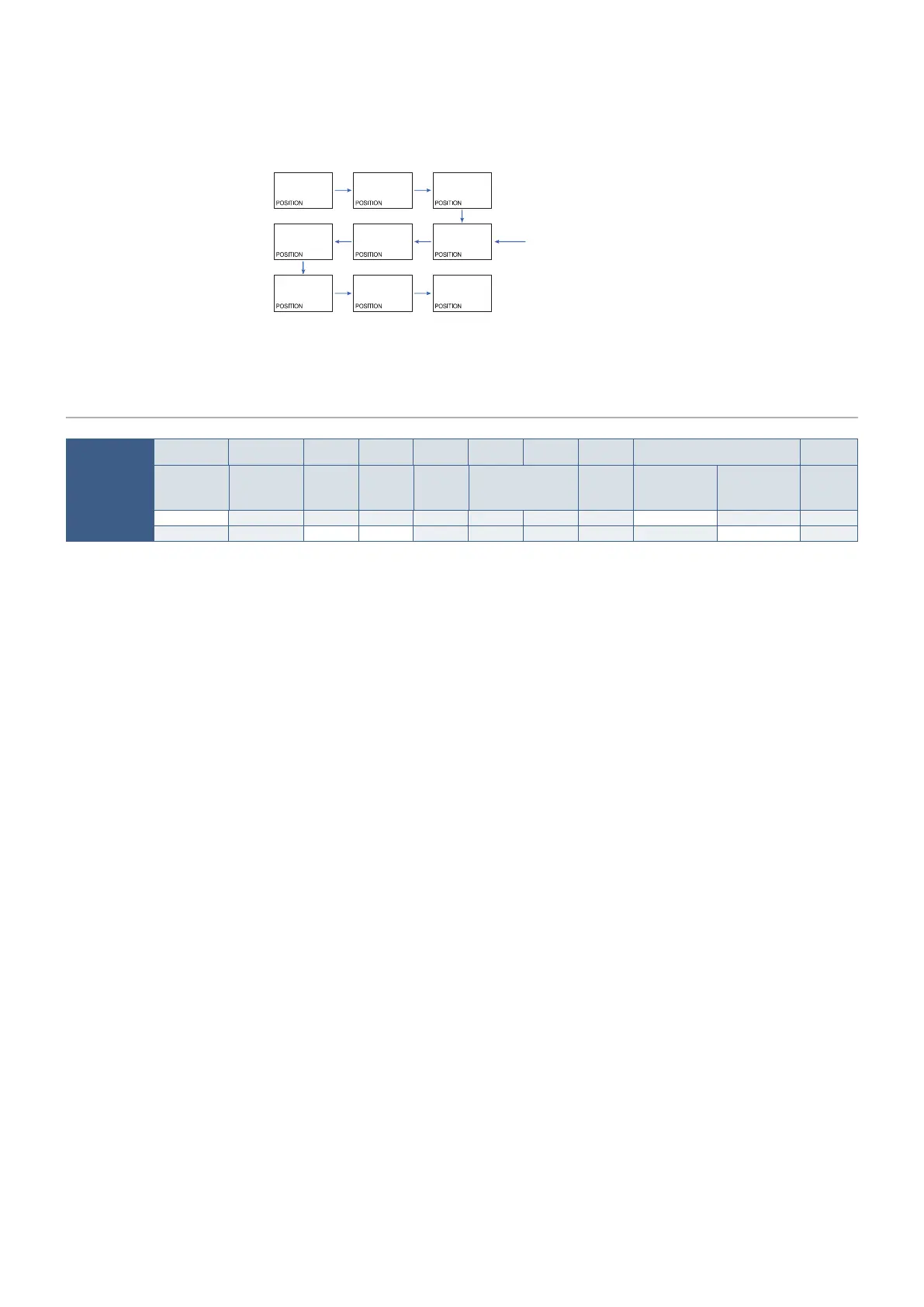

MONITORS POSITION is different from ID. Please refer to the figure1.
H MONITORS: 3
V MONITORS: 3
POSITION: 4, 5, 6
ID:1
1
ID:6
4
ID:7
7
ID:2
2
ID:5
5
ID:8
8
ID:3
3
ID:4
6
ID:9
9
Figure 1
Video Out Connection
Main picture
DisplayPort1 DisplayPort2 DVI HDMI1 HDMI2
VGA
(RGB)
VGA
(YPbPr)
Video OPTION MP
Connector
DisplayPort1
(DAISY
CHAIN IN)
DisplayPort2 DVI-D
HDMI1
(DAISY
CHAIN IN)
HDMI2
(CEC)
VGA (RGB, YPbPr) VIDEO
Option Board
Slot (SLOT2
(DP))
Option Board
Slot (SLOT2
(HDMI))
-
DisplayPort
Yes No No No No No No No Yes No No
HDMI
No No Yes Yes No No No No No Yes Yes
NOTE: The output of Media Player signal (MP) is capable only between the same models.
For connecting multiple monitors with HDMI cable
• Using the same display model.
• Set the same ([MODE1] or [MODE2]) at [HDMI] in [TERMINAL SETTINGS] in all connected multiple monitors.
For DisplayPort Out
• Select either the DisplayPort1 or OPTION input for the monitor to output a signal from DisplayPort Out.
• This monitor’s signal output function supports contents protected by HDCP. HDCP content can be distributed across up
to 3 connected monitors.
• When using an Option Board, please set [SLOT2 CH SETTING] to [CH1] then set [SLOT2 CH SELECT] to DisplayPort.
See page 122.
NOTE:  Please use slot2 type option boards which outputs DisplayPort signal.
For HDMI Out
• Select either the HDMI1, DVI, MP, or OPTION input for the monitor to output a signal from HDMI OUT.
• This monitor’s signal output function supports contents protected by HDCP.
HDCP content can be distributed across multiple connected monitors as described below:
• HDCP 1: Up to 8 monitors / HDCP 2.2: Up to 5 monitors.
• The time until image is displayed depends on the number of connected monitors.
• Without HDCP: Up to 9 monitors.
NOTE: • Depending on the device you use, number of monitor connection will change.
• When displaying an image in a multi-monitor setting, do not disconnect cables from the monitors. When you
disconnect cables, please turn the main power off first.
• When using an option, please set [SLOT2 CH SETTING] to [CH1] then set [SLOT2 CH SELECT] to TMDS. See page 122.
NOTE:  Please use slot2 type option boards which outputs HDMI signal.

NEC MultiSync UN552V Specifications

General

Pixel pitch	0.63 x 0.63 mm
Response time	8 ms
Display diagonal	55 \
Display brightness	500 cd/m²
Display technology	LED
Native aspect ratio	16:9
Vertical scan range	23 - 86 Hz
Horizontal scan range	26 - 134 kHz
Contrast ratio (typical)	1700:1
Display diagonal (metric)	138.78 cm
Active display area (W x H)	1209.63 x 680.34 mm
Operating hours (hours/days)	24/7
Maximum refresh rate	60 Hz
Annual energy consumption	328 kWh
Purpose	Universal
Orientation	Horizontal/Vertical
Product color	Black
Product design	Video wall
Placement supported	Indoor
Bezel width (bottom)	0.44 mm
Panel mounting interface	400 x 400 mm
USB ports quantity	5
DisplayPorts quantity	3
Compatible memory cards	MicroSD (TransFlash)
Ethernet LAN data rates	10, 100 Mbit/s
VGA (D-Sub) input ports	1
HDMI input ports quantity	2
Audio formats supported	AAC, MP3, WAV
Image formats supported	JPG, PNG
Video formats supported	FLV, H.264, MOV, MP4, MPG, WMV
Power consumption (standby)	0.5 W
Power consumption (typical)	225 W
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	20 - 80 %
Certification	BSMI; CE; EAC; EMC B; FCC; PSB; RCM; REACH; RoHS; SASO; TÜV GS; TÜV S; UL/C-UL; VCCI
Sustainability certificates	RoHS
Cables included	AC, DisplayPort, HDMI
Harmonized System (HS) code	85285210

Weight and Dimensions

Depth	98.6 mm
Width	1210.5 mm
Height	681.2 mm
Weight	25800 g
