14
1. What’s in the Box? and the Names of the Projector Parts

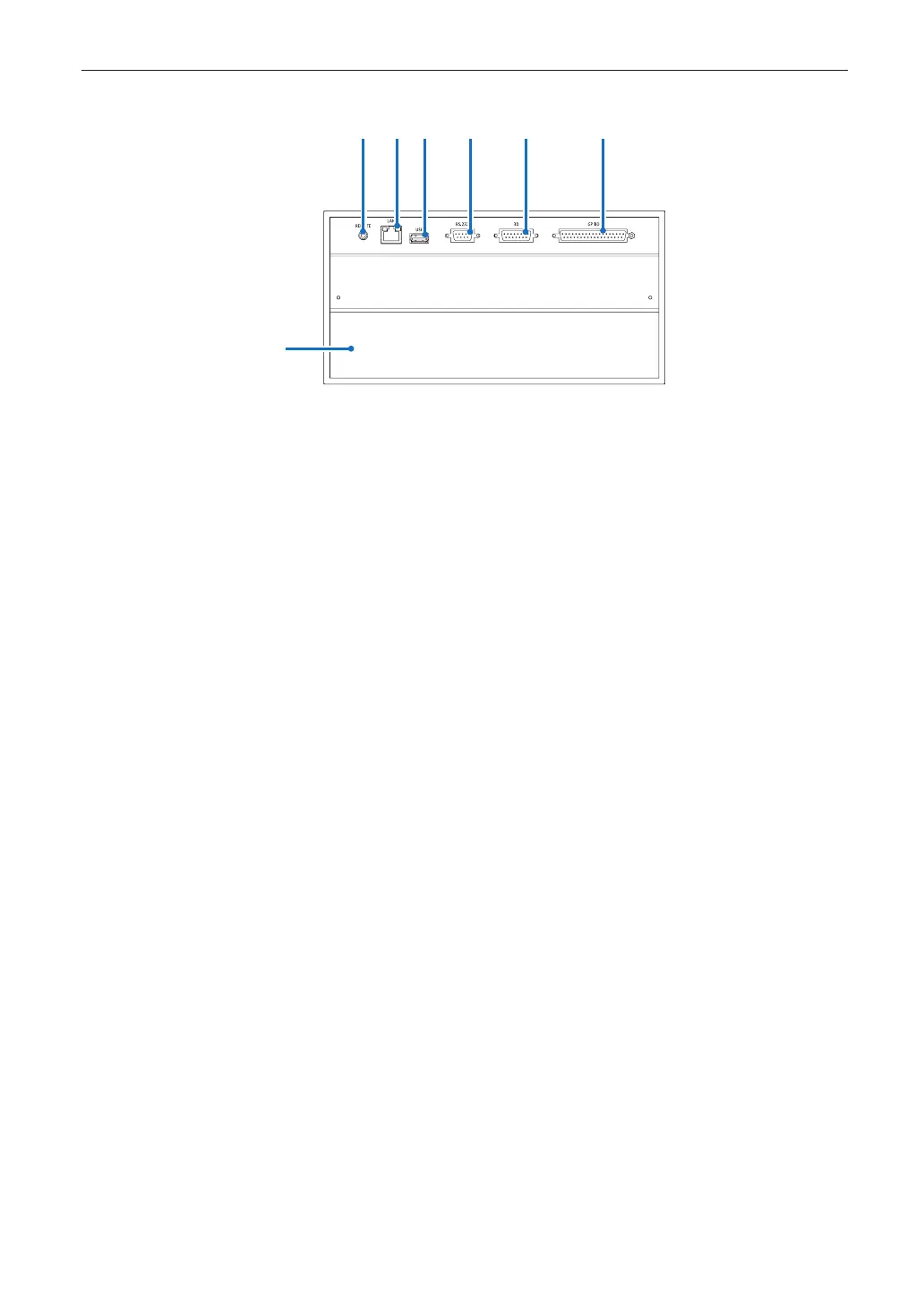

1-3-4. Connection terminals
1 2 3 4 5
7
6
1. Service terminal (REMOTE) (Stereo mini)
This terminal is used for service purpose only.
2. Ethernet port (LAN) (RJ-45)
The port for interfacing with an image signal server or controlling the projector from a PC via a network. Connect the projec-
tor and the PC with a commercially available Ethernet cable (10/100Base-T).
3. USB port (USB) (type A)
The port for the projector maintenance.
4. PC control terminal (RS-232) (D-sub 9P)
The terminal for operating the projector from a PC via an RS-232C or for service personnel to set data for the projector.
Connect the projector and the PC with a commercially available RS-232C straight cable.
5. 3D terminal (3D) (D-sub 15P)
The terminal for connecting a 3D image system to the projector. (See page 76)
6. External control terminal (GP I/O) (D-sub 37P)
The terminal for externally controlling the projector or connecting a 3D image system to the projector. (See page 71)
7. Slot A
The slot is used for an image media block (IMB). Contact your dealer/distributor for an installation of IMB. Refer to the IMB
instruction manual for details on IMB.
To Next Page
