2. Installation and Connection
2-3. Connecting the image input terminals
The video input ports that can be used with the IMB are as follows. Refer to the instruction manual of the IMB for details on
connecting the video input ports with external equipment.
NP-90MS02 HDMI input port x 1
SDI input port x 2
2-4. Connecting the various control terminal
For control, your projector comes with such ports as the PC control terminal and the Ethernet port (RJ-45).
• PCcontrolterminal(RS-232) --------------- Use this terminal when controlling the projector in serial connection from a PC.
• LANport(LAN) -------------------------------- Use this port when controlling the projector in LAN connection from a PC.

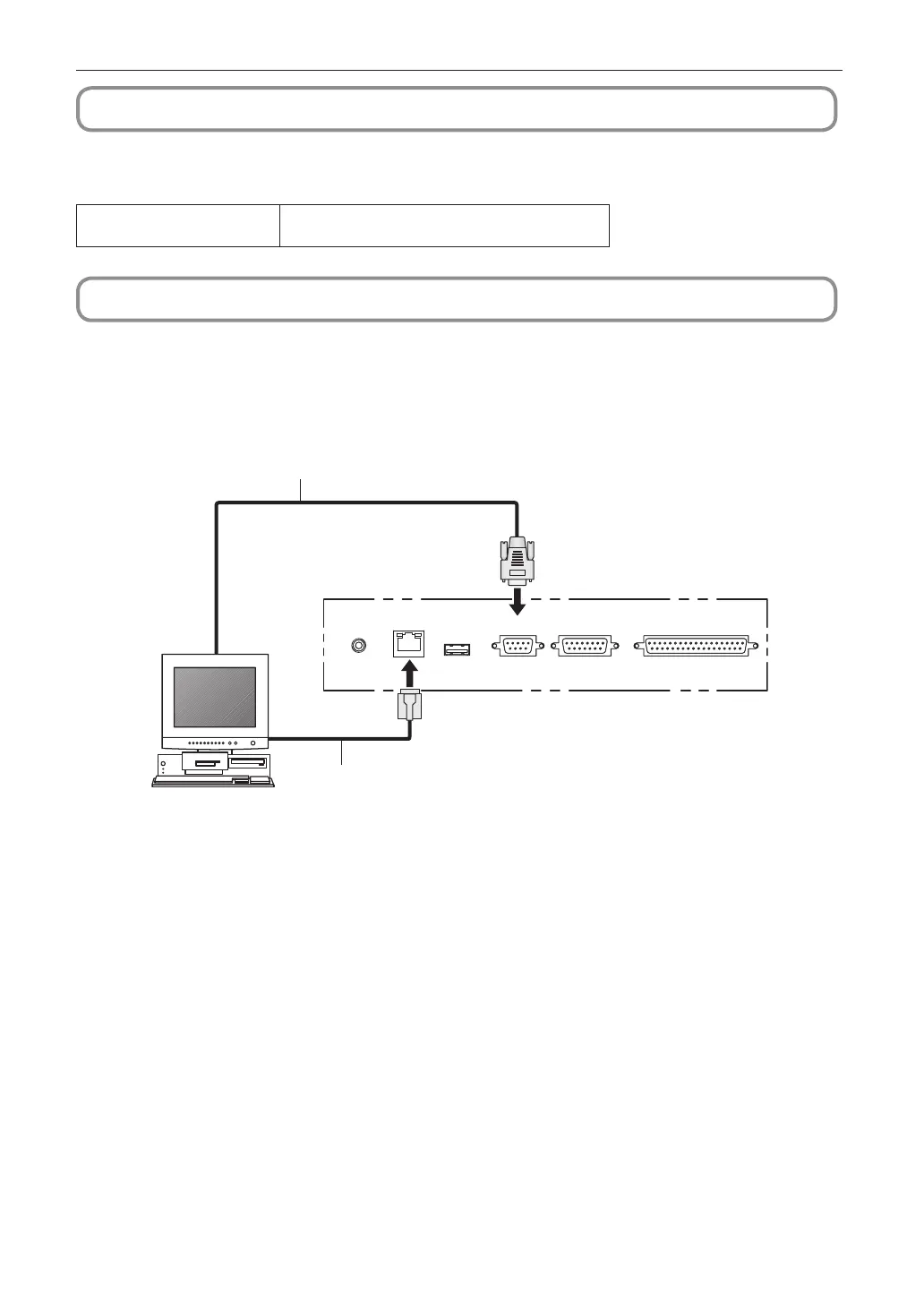

GP I/O3DRS-232
USB
REMOTE
LAN
LAN cable
PC
RS-232C
