NEC NP110 - Connecting Your VCR

15
2. Installation and Connections
AUDIO IN
LR
AUDIO OUT
L R
VIDEO OUT
S-VIDEOVIDEO
VIDEO IN
S-VIDEO IN
AUDIO IN

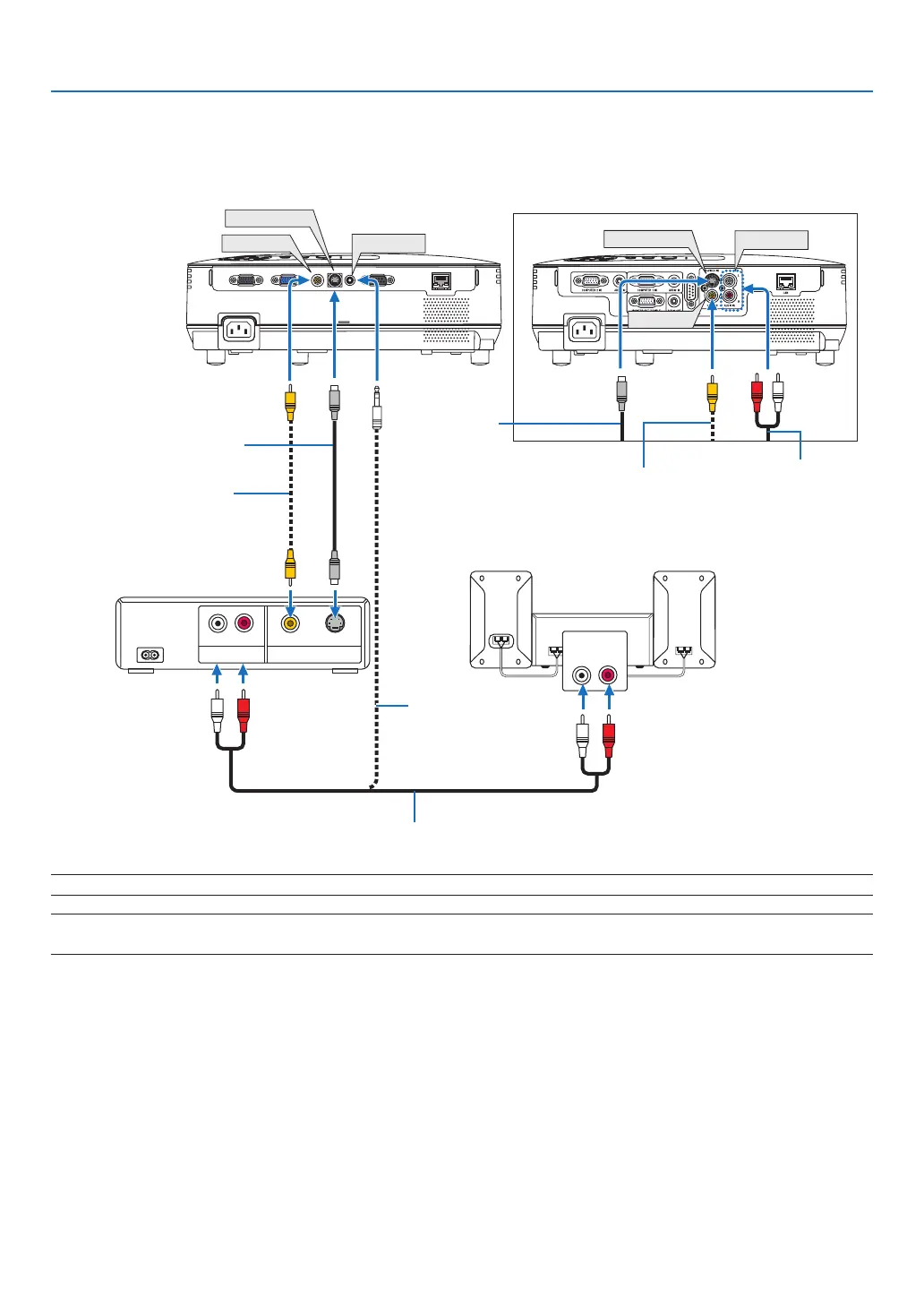

Connecting Your VCR
Use audio equipment for stereo sound.
The projector's built-in speaker is monaural.
S-Video cable (not supplied)
Video cable (not supplied)
Video cable
(not supplied)
S-Video cable
(not supplied)
VCR
Audio equipment
Audio cable (not supplied)
Audio cable
(not supplied)
NOTE:RefertoyourVCRowner'smanualformoreinformationaboutyourequipment'svideooutputrequirements.
NOTE:AnimagemaynotbedisplayedcorrectlywhenaVideoorS-Videosourceisplayedbackinfast-forwardorfast-rewindvia
a scan converter.
NP215/NP210/NP115/NP110
TIP:TheAUDIOINMiniJack(StereoMini)issharedbetweenCOMPUTER,VIDEOandS-VIDEOinputs.
Stereo mini plug - to
- RCA audio cable
(not supplied)
VIDEO IN
S-VIDEO IN
AUDIO IN
NP216
