NEC NP43 - Manually Correcting Keystone Distortion

25
3. Projecting an Image (Basic Operation)
SOURCE
AUTO
ADJ.
ON/STAND BY
FOCUS
LAMP
STATUS
POWER
➎
Correcting Keystone Distortion Manually
Youcanalsocorrecttheverticalkeystonedistortionmanually.
NOTE:
• Keystonecorrectionbyusingthe▲/▼buttonisnotpossiblewhen[VIEWER]isselectedforthesource.
• Theverticalkeystoneanglecanbecorrectedbetween40degreesupwardand40degreesdownwardfromlevel.
Adjustthekeystonedistortionmanuallyinthefollowingcases:
• TonetuneKeystonecorrectionevenafterperformingthe[AUTOKEYSTONE]adjustment
• Whenthemenusettingfor[AUTOKEYSTONE]isturnedoff
Adjusting with buttons on the cabinet

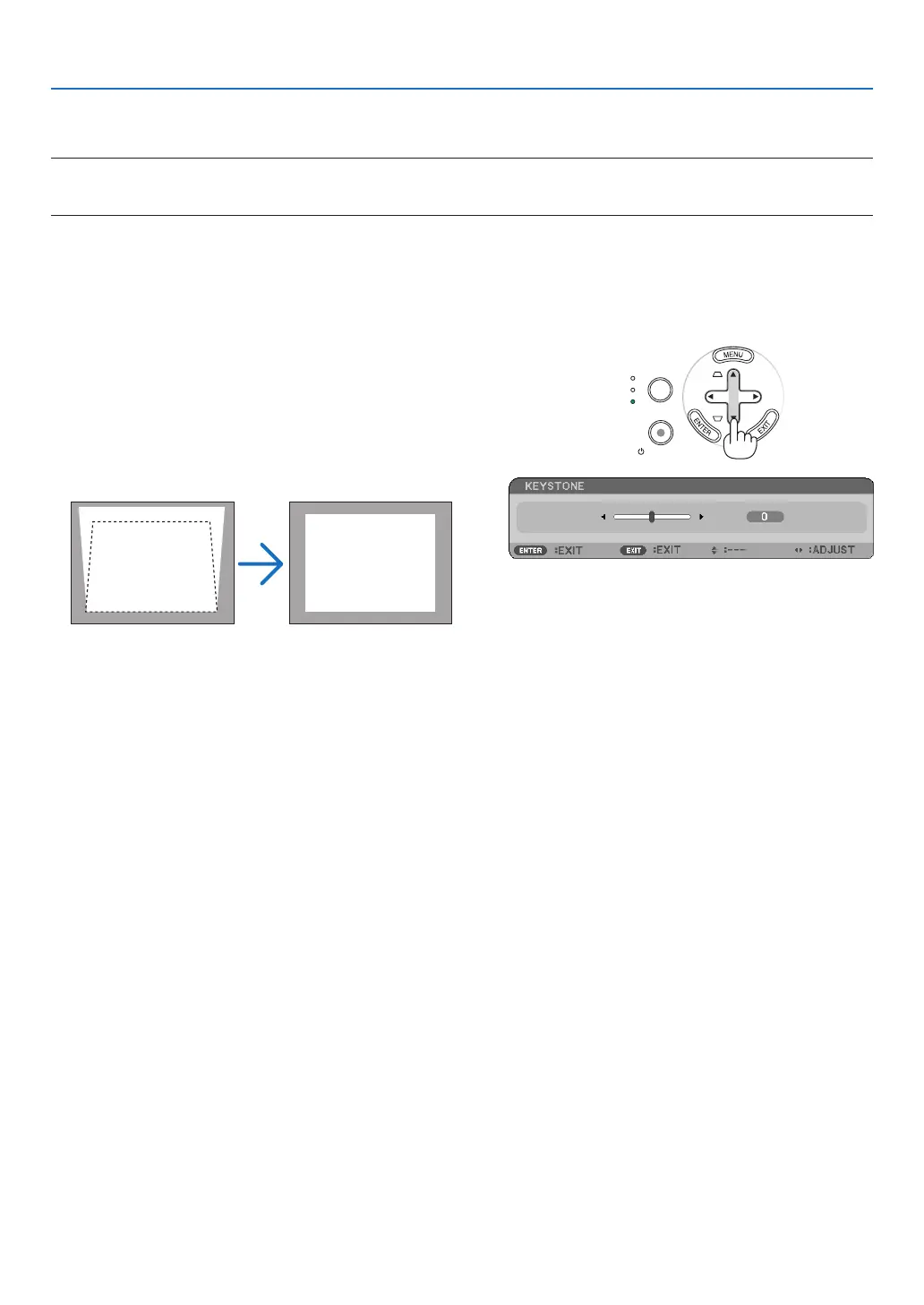

1. Press the ▲ or ▼ button with no menus displayed.
The slide bar will be displayed for your adjustment.
2. Use the

or

to correct the keystone distortion.
Adjust so that the right and left sides are parallel.
3. Press the EXIT button.
The slide bar will be closed.
