NEC P502WL - Terminal Panel Features

7
1. Introduction

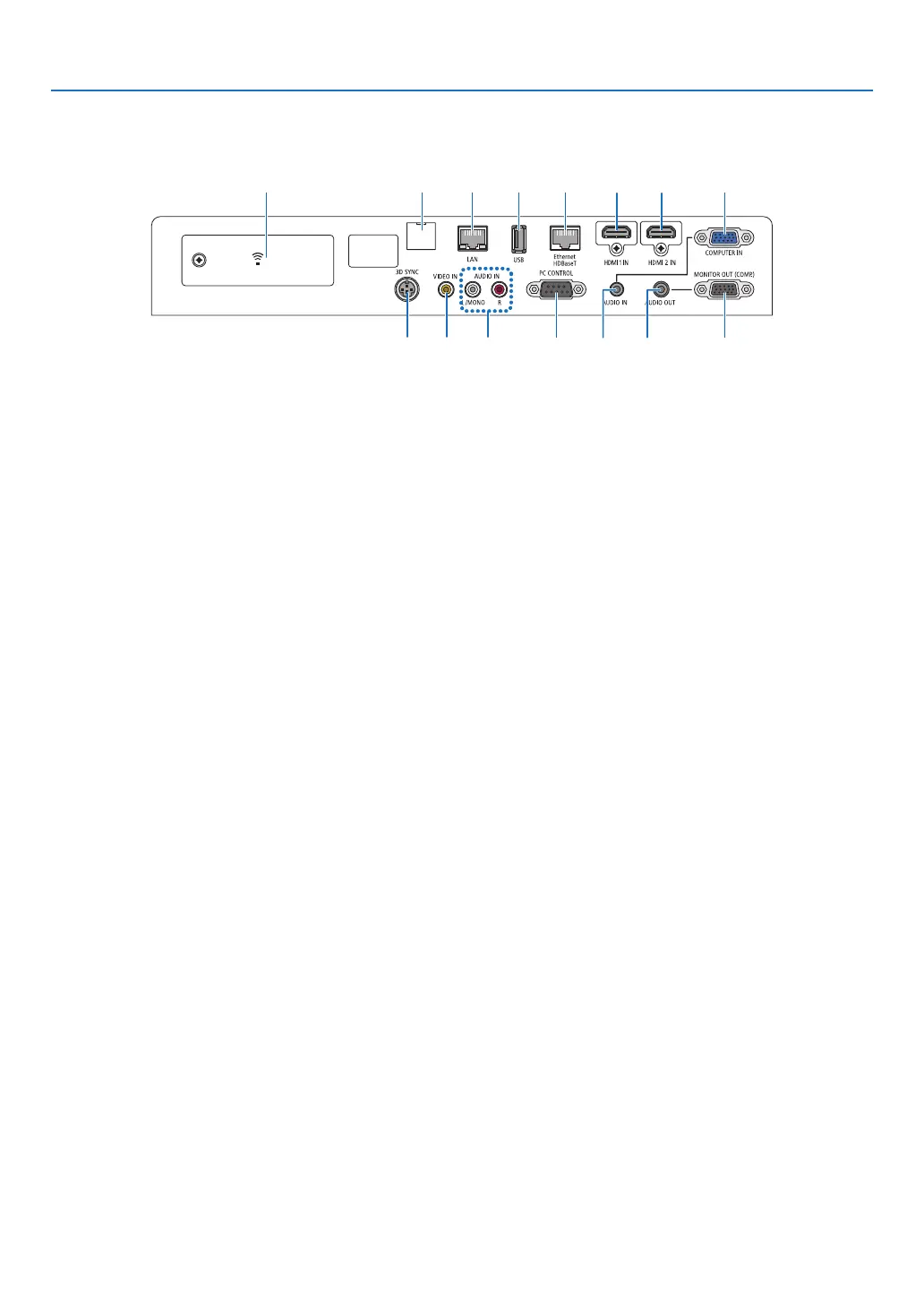

Terminal Panel Features
1. COMPUTERIN/ComponentInputTerminal(Mini
D-Sub15Pin)
(→page73, 77, 79)
2. COMPUTERAUDIOINMiniJack(StereoMini)
(→page73, 77)
3. HDMI1INTerminal(TypeA)
(→page73, 74, 78)
4. HDMI2INTerminal(TypeA)
(→page73, 74, 78)
5. MONITOROUT(COMP.)Terminal(MiniD-Sub15
Pin)
(→page75)
6. AUDIOOUTMiniJack(StereoMini)
(→page75)
7. VIDEOINTerminal(RCA)
(→page76, 79)
8. VIDEO/S-VIDEOAUDIOINL/MONO,R(RCA)
(→page76)
9. Ethernet/HDBaseTPort(RJ-45)
(→page80, 84)
10.LANPort(RJ-45)
(→page80, 85)
11.USB(WirelessLAN)Port
(→page83)
12.USBPort(TypeA)
(→page89)
13.3DSYNCTerminal(MiniDIN3Pin)
(→page35)
14.PCCONTROL[PCCONTROL]Port(D-Sub9Pin)
(→page127)
 Use this port to connect aPC orcontrol system.
Thisenablesyoutocontroltheprojectorusingserial
communicationprotocol.Ifyouarewritingyourown
program,typicalPCcontrolcodesareonpage127.
15.SERVICEPort(USBTypeB)
 (forservicepurposeonly)
