NEC P502WL - Example of Installation on a Desktop

70
5. Installation and Connections

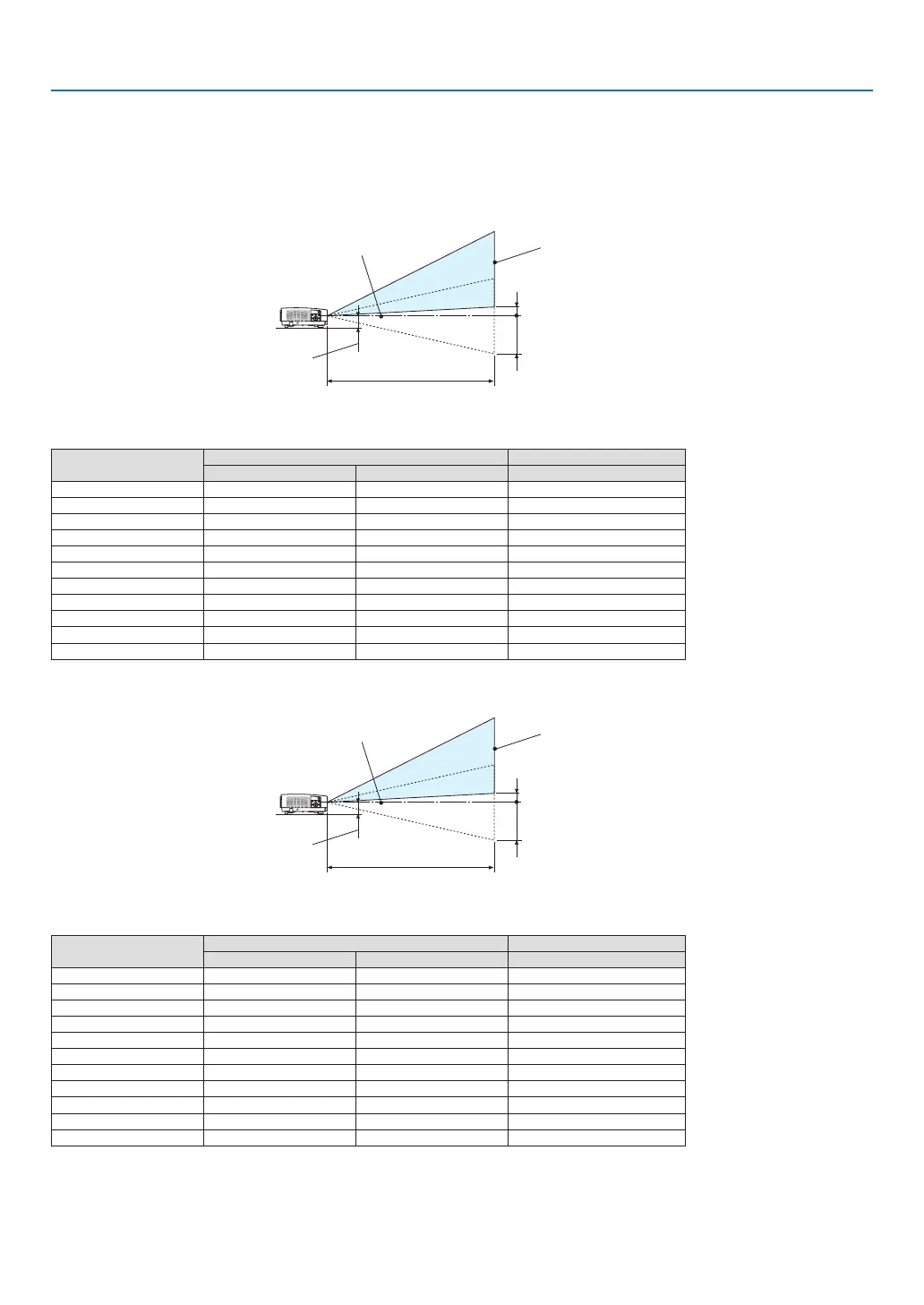

Example of installation on a desktop
Thediagrambelowshowsanexampleofwhentheprojectorisusedonadesktop.
Horizontalprojectionposition:Equaldistancetotheleftandrightfromthecenterofthelens
Verticalprojectionposition:(seetablebelow)
[P502HL]
Screen surface
Lower edge of screen with 61.6% V
Measurement +H
Measurement -H
Lower edge of screen with 0% V
Lens center
Approximately 92 to 97 mm
Projection distance L
(Note)Heightfromlenscentertoloweredgeofscreen(withtiltfeetscrewedin)
Screensize(inches) ThrowdistanceL(m) HeightH(cm)
Wide Tele 0%V–62%V
30 0.79 1.39 −18.7 – +4.3
40 1.07 1.86 −24.9 – +5.8
50 1.34 2.34 −31.1 – +7.2
60 1.62 2.81 −37.4 – +8.7
80 2.17 3.76 −49.8 – +11.6
100 2.72 4.71 −62.3 – +14.5
120 3.28 5.66 −74.7 – +17.4
150 4.11 7.08 −93.4 – +21.7
200 5.49 9.45 −124.5 – +28.9
250 6.87 11.82 −155.7 – +36.2
300 8.25 14.19 −186.8 – +43.4
[P502WL]
Screen surface
Lower edge of screen with 59.0% V
Measurement +H
Measurement -H
Lower edge of screen with 0% V
Lens center
Approximately 92 to 97 mm
Projection distance L
(Note)Heightfromlenscentertoloweredgeofscreen(withtiltfeetscrewedin)
Screensize(inches) ThrowdistanceL(m) HeightH(cm)
Wide Tele 0%V–59%V
30 0.81 1.42 −20.2 – +3.4
40 1.09 1.90 −26.9 – +4.6
50 1.37 2.39 −33.7 – +5.7
60 1.66 2.87 −40.4 – +6.9
80 2.22 3.84 −53.8 – +9.2
100 2.78 4.81 −67.3 – +11.5
120 3.35 5.78 −80.8 – +13.8
150 4.19 7.23 −101.0 – +17.2
200 5.60 9.65 −134.6 – +23.0
250 7.01 12.08 −168.3 – +28.7
300 8.43 14.50 −201.9 – +34.5
