4. Using On-Screen Menu
79
[SECURITY] [CHANNEL]
[SIGNAL LEVEL]
[VERSION(1)]
[FIRMWARE] Version [DATA] Version
[VERSION(2)]
[FIRMWARE2] Version [DATA2] Version
[OTHERS]
[DATE TIME] [PROJECTOR NAME]
[HOST NAME] [MODEL NO.]
[SERIAL NUMBER] [LAN UNIT TYPE]
[CONTROL ID] (when [CONTROL ID] is set)
[CONDITIONS]
[INTAKE TEMPERATURE] [EXHAUST TEMPERATURE]
[INSTALLATION POSITION] [X-AXIS]
[Y-AXIS] [Z-AXIS]

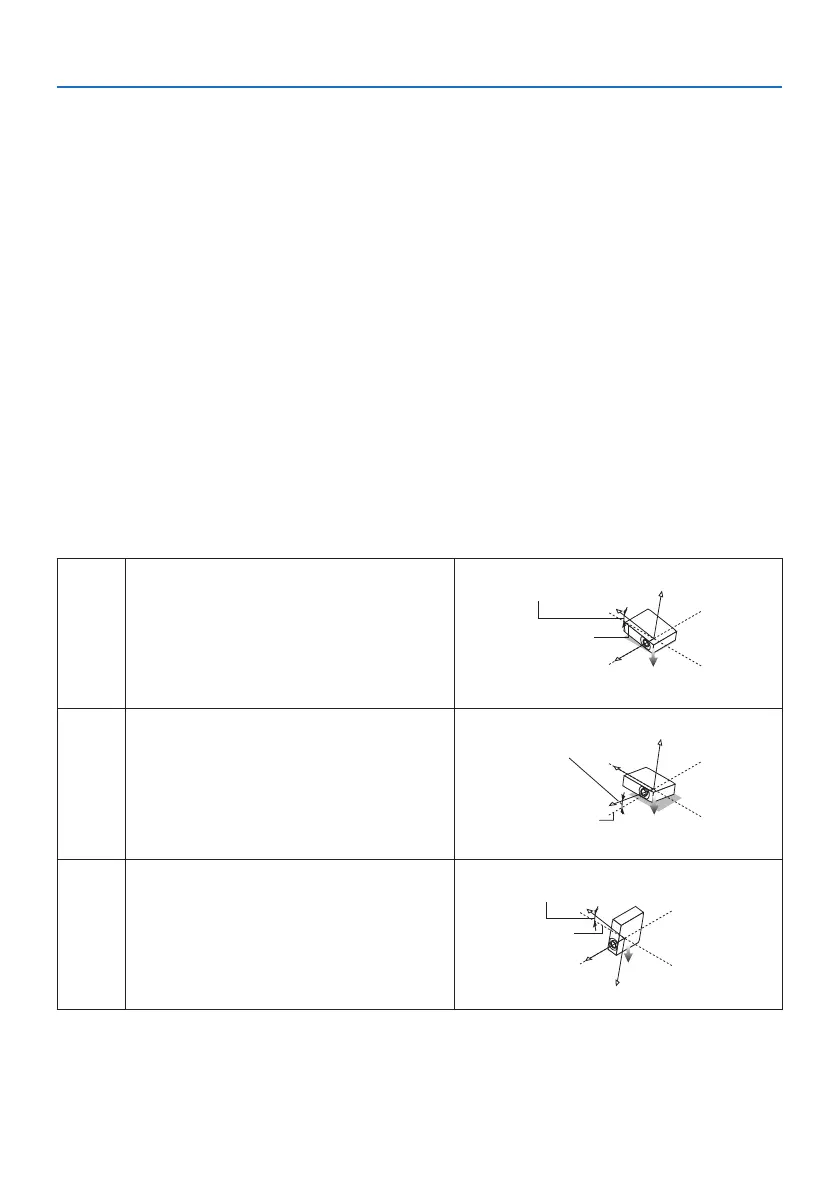

About the X-AXIS, Y-AXIS and Z-AXIS CONDITIONS
(NOTE) Arrow direction of the Z-AXIS in the figure represents the top of the projector.
X-AXIS Display the projector image at an angle of −100 – +100
degrees to the horizontal in the X-axis direction.
X-AXIS value of
the projector
Horizontal plane
X-axis
Gravity direction
Y-AXIS Display the projector image at an angle of −100 – +100
degrees to the horizontal in the Y-axis direction.
Y-AXIS value of
the projector
Horizontal plane
Y-axis
Gravity direction
Z-AXIS Display the projector image at an angle of −100 – +100
degrees to the vertical in the Z-axis direction.
Z-AXIS value of the projector
Horizontal
plane Z-axis
Gravity direction
