269

10. Appendix

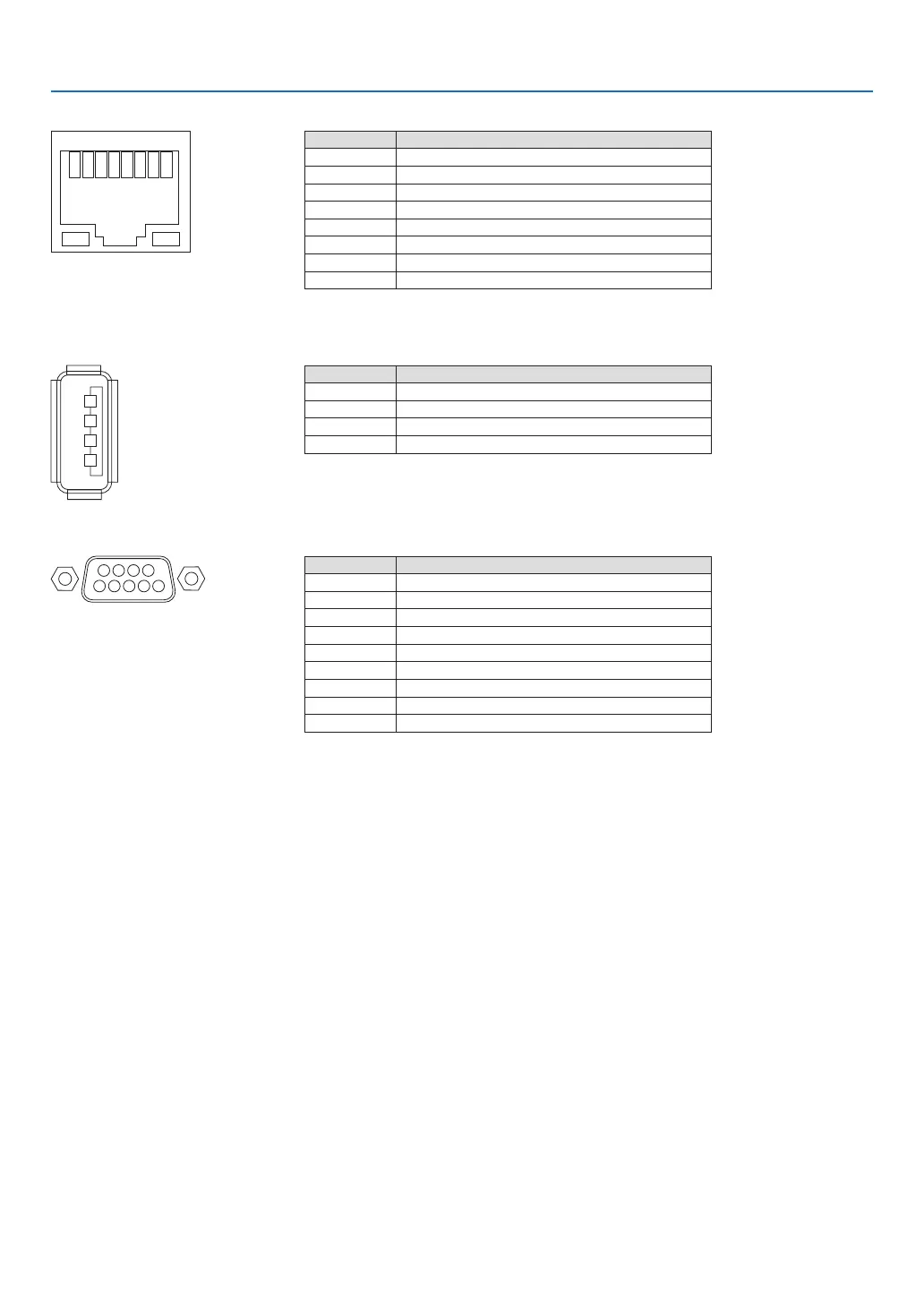

Ethernet/HDBaseT Port (RJ-45)

12345678

Pin No. Signal

1 TxD+/HDBT0+

2 TxD−/HDBT0−

3 RxD+/HDBT1+

4 Disconnection/HDBT2+

5 Disconnection/HDBT2−

6 RxD−/HDBT1−

7 Disconnection/HDBT3+

8 Disconnection/HDBT3−

* HDBaseTportisnotsupportedonMMmodels.

USB-A Port (Type A)

Pin No. Signal

1 V

BUS

2 D−

3 D+

4 Grounding

PC CONTROL Port (D-Sub 9 Pin)

1234

6789

Communications protocol

Pin No. Signal

1 Unused

2 RxD receptiondata

3 TxD transmissiondata

4 Unused

5 Grounding

6 Unused

7 RTS transmissionrequest

8 CTS transmissionallowed

9 Unused
