4. Multi-Screen Projection
Preparation:
• Turnontheprojectoranddisplayasignal.
• Whenperformingsettingsoradjustmentsusingtheremotecontrol,enablethe[CONTROLID]soasnottoactivate
theotherprojectors.(→page120)
Setting the overlap of projection screens

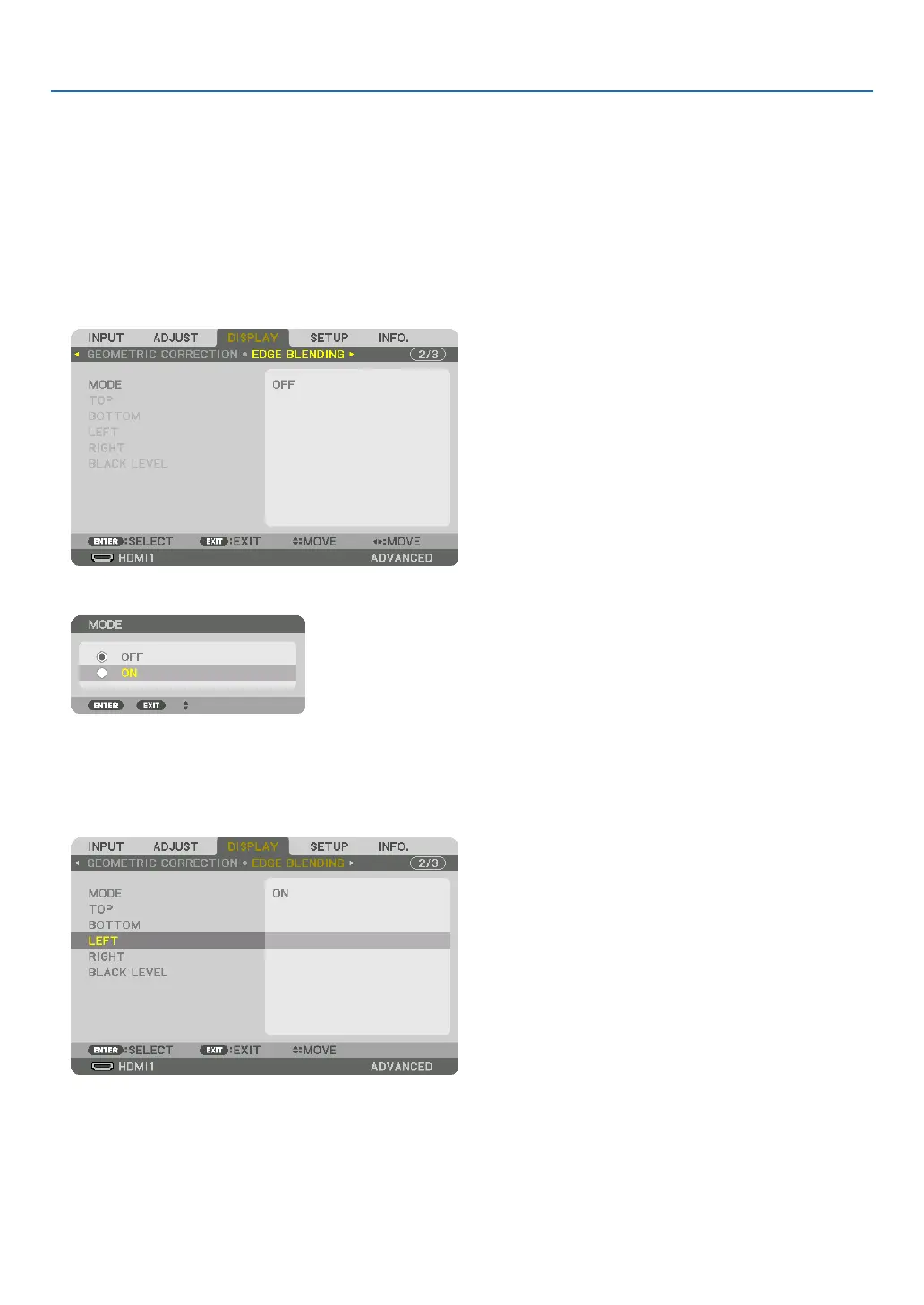

① Enable [EDGE BLENDING].
1 Pressthe“EdgeBlend.”button.
 The[EDGEBLENDING]screenwillbedisplayed.Alignthecursorwith[MODE]andthenpresstheENTERbutton.
Themodescreenwillbedisplayed.
2 Select[MODE]→[ON]andpresstheENTERbutton.
 ThisenablestheEdgeBlendingfunction.Thefollowingmenuitemsareavailable:
 [TOP],[BOTTOM],[LEFT],[RIGHT],and[BLACKLEVEL]
3 Select[RIGHT]forProjectorAand[LEFT]forProjectorB.
 PresstheENTERbutton.
 Thefollowingitemsareavailable:
 [CONTROL],[MARKER],[RANGE],and[POSITION]
