dispensing comparTmenT and
vandal-proof device
To disassemble the dispensing compartment, unscrew
the knurls to release the compartment and let it slide on
the guide. The doors intended to protect the openings for
dispensing drinks and cups require no special mainte-
nance. Normal cleaning is enough.
If necessary, the knurl will help you disassemble the noz-
zle support arm.
On reassembling, pay attention to the position of the cup
shift arm, the position of the compartment on the guide
and the correct coupling of the three fastening points.
mixer channels
Use a small vacuum-cleaner or a brush to clean the fun-
nel area and the container support surface by removing
any powder residue at regular intervals.
Surfaces can be cleaned by using a wet piece of cloth.
service inTerrupTion
If the machine should be o for any reason whatsoever
for a period longer than the pull dates of products, it is
necessary to act as follows:
- empty the grinder-dosers completely by dispensing
coffee until an empty message is displayed
- empty the containers completely and wash them
carefully by using the sanitising products used for the
mixers
- empty the water circuit completely
Before restarting operation, clean and sanitise.

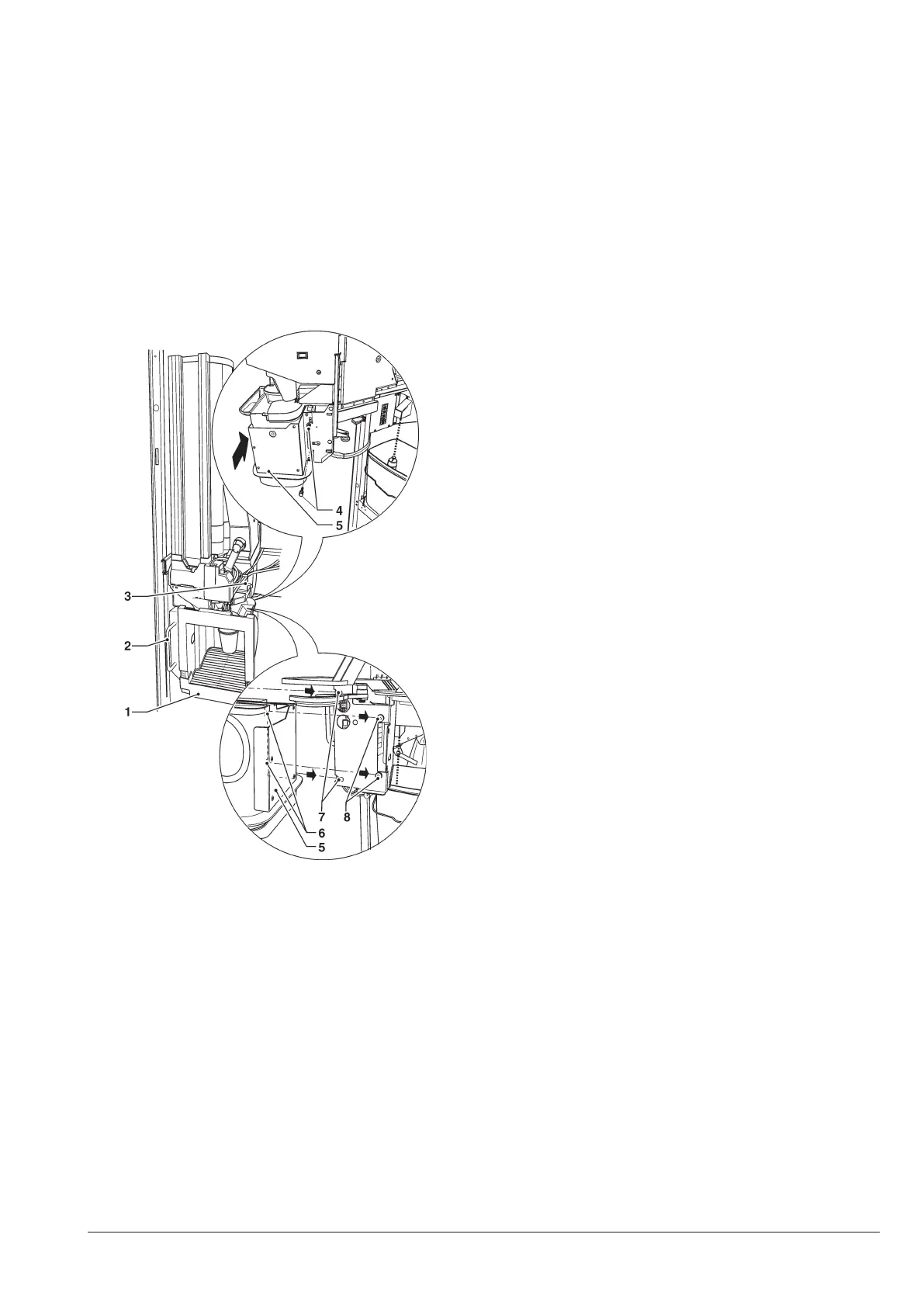

Fig. 14
1- Dispensing compartment
2- Compartment guides
3- Support of dispensing tubes
4- Compartment fastening knurls
5- Drink dispensing support
6- Mobile cup dispensing cover
7- Fastening for guide
8- Guide stopper
