ANPR LUMO | installation guide

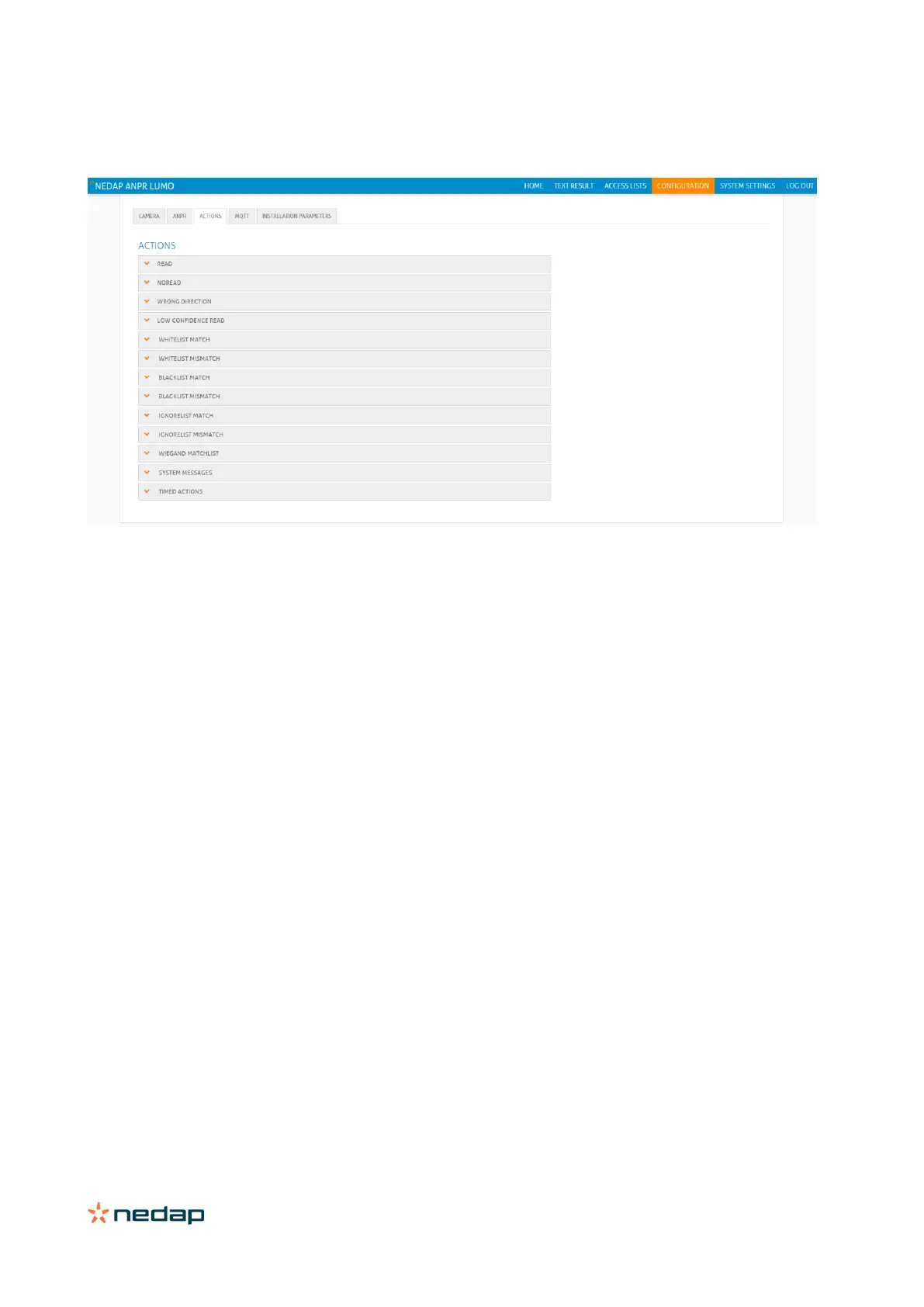

7.3 ACTIONS
In the actions menu, you can define what actions the camera should perform on certain events.
READ When ANPR recognizes a plate
NOREAD When there are no plates recognized between given limitations set under ALPR Configuration-Trigger
(i.e. Start and Stop trigger, or Start trigger and Trigger timeout).
WRONG DIR. Wrong Direction occur when a new license plate is detected, but it moves in a direction which is not
within the allowed direction range defined for the area in which this plate is located.
LCR Low confidence read event is created when a plate is read but the confidence level is lower than set in
parameter “LIMIT OF LOW CONF (%)”
LIST MATCH The action that should be performed when the plate is found on one of the Match lists.
LIST MISMATCH The action that should be performed when the plate is not found on one of the lists.
TIMED ACTIONS Are triggered by a timer in regular intervals. For example, the Lumo can send a live image every hour
to a server.
The following actions can be added to any of the events, you can also make combination of actions.
Ftp Upload, Ftp Database, Store, Digital out, Serial, TCP, HTTP, HMAC_HTTP, WIEGAND26, WIEGAND64
For all actions you can define for which Area of interest the action should be performed. E.g. ALL AREAS or just one
selected AREA.
Finally, before you save an action to the camera, you can test it by pressing the TEST button and so find invalid
parameters, server names etc.
7.3.1 DIGITAL OUT
This action will produce digital output for a specific time period
OUTPUT LINE Which output should be activated 1=relay1, 2=relay2
INVERT SIGNAL If enabled the output will become active
OUTPUT DURATION The time in milliseconds that the output will be activated
