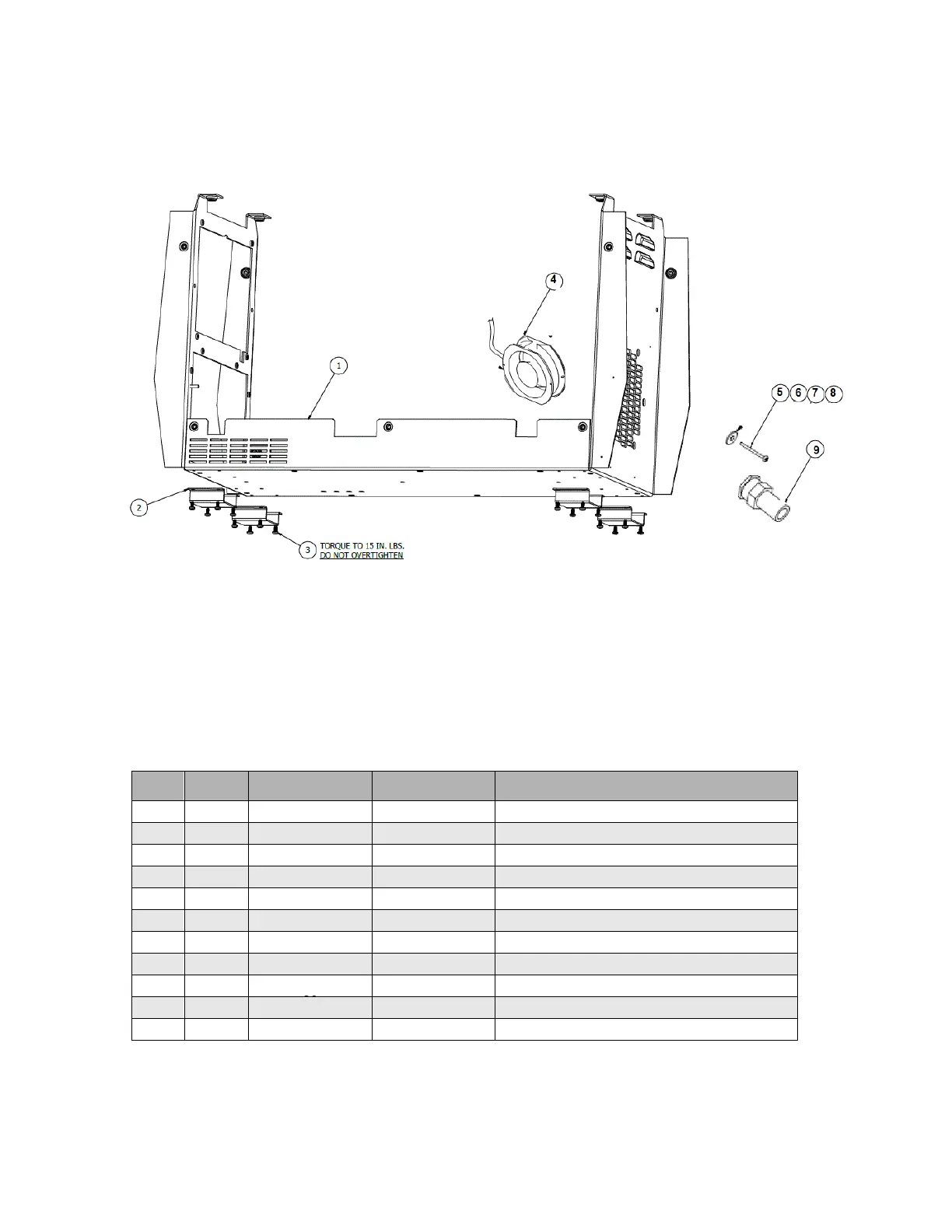

6.3 Chassis Sub ASM
6.3.1 Parts list chassis sub ASM
Comment:
Sp = Spare part; Stp = Standard part; W = Wear part;
Ssp = Stud-specific part
Item
QTY
Part Number
Comment
Description
1
1
750-651-110
CHASSIS, N1500i FACS
2
1
750-615-206
W, Sp
FOOT, CHASSIS
3
16
524-002-620
SCREW, 8-32 X 3/8 THREADFORM
4
1
717-999-013
FAN, COOLING
5
4
524-005-292
SCREW, M4 X 70 PHMS
6
4
524-005-284
WASHER, FENDER, M4, SS
7
4
524-005-153
NUT, M4, WITH NYLON INSERT
8
4
717-140-010
GROMMET, RUBBER
9
4
86-44-38 OR
39
CABLE GLAND
NS
1
721-313-001
FAN CABLE
NS
1
86-44-39
STRAIN RELIEF NUT
