Nelson N800i - FACS Board Set; Dot Matrix User Interface

N1500i FACS Manual
62
Part No. 729-110-053 V.1.03 © 2018 Nelson Stud Welding, Inc. All rights reserved.

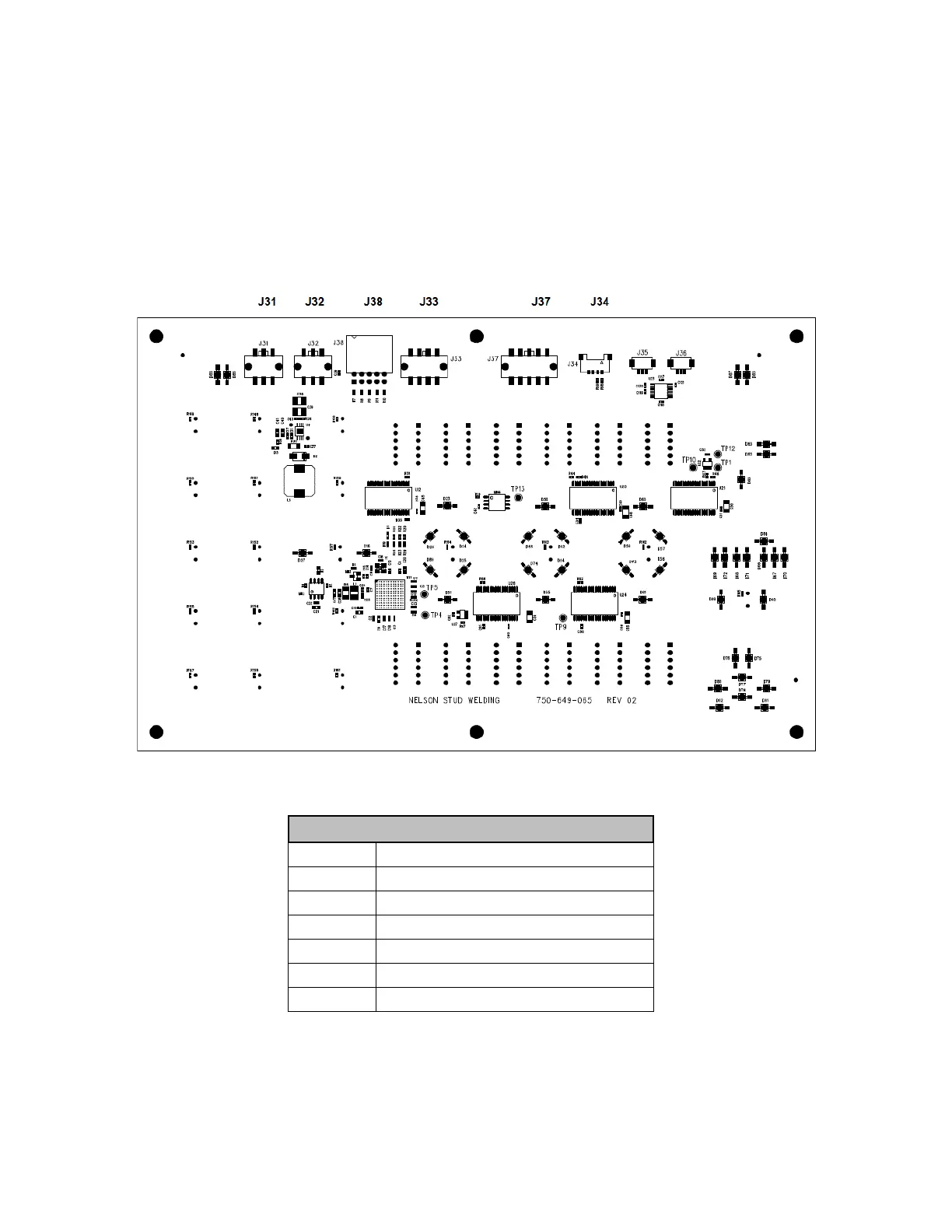

7. FACS Board Set
7.1 Dot Matrix User Interface
Dot Matrix Connections
J31
CAN Bus \ 24V supply
J32
CAN Bus \ 24V supply
J33
Address jumper
J34
Product variant
J37
Product type jumper
J38
JTAG (programming)
J36
Debug
