7.2 Output SMPS
Contains specific drivers that interface with power components such as the (1) SCR,
(3) IGBTs, Pilot arc control, Charge \ Discharge
750-649-035

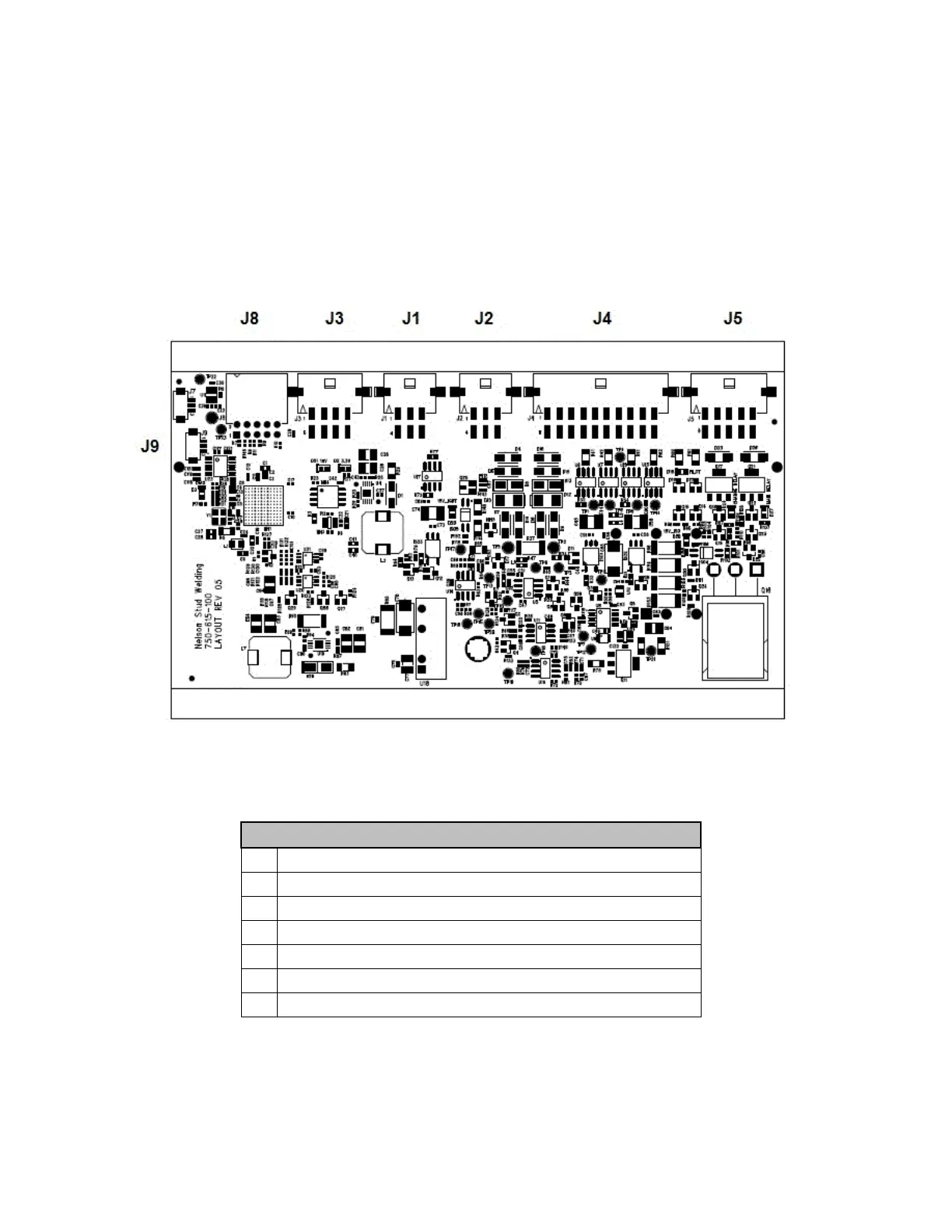

SMPS Output Connections
J1
CAN Bus \ 24V supply
J2
CAN Bus \ 24V supply
J3
Address jumper
J4
CTs, gate drives, input analog signals
J5
Pilot output, relay drivers, capacitor sensing
J8
JTAG (programming)
J9
Debug
