Nelson N800i - Front Panel Assemblies; Parts List Front Panel Assemblies

N1500i FACS Manual
59
Part No. 729-110-053 V.1.03 © 2018 Nelson Stud Welding, Inc. All rights reserved.

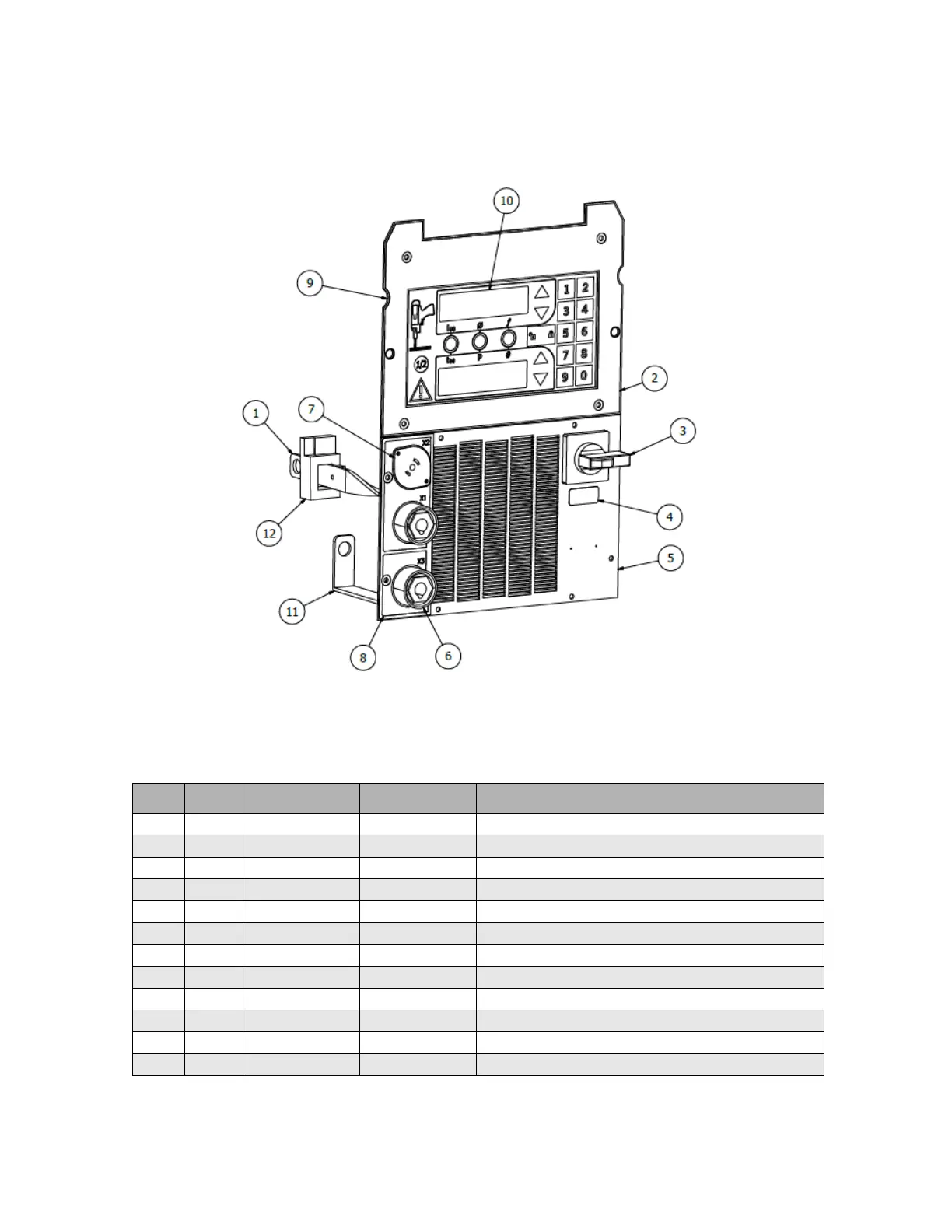

6.4 Front panel assemblies
6.4.1 Parts list Front panel assemblies
Comment: Sp = Spare part; Stp = Standard part; W = Wear part; Ssp = Stud-specific part
Item
QTY
Part Number
Comment
Description
1
1
750-610-326
BUSBAR,WORK,N1500i
2
1
724-577-014
DECAL, DOT MATRIX DISPLAY, N1500i FACS
3
1
709-256-015
SWITCH,POWER,ROTARY,63A,N1500i
4
1
724-572-013
LABEL, MANUEL/WARNING ISO
5
1
750-651-104
FRONT CONNECTOR PANEL, DINSE/HUBBELL
6
2
714-166-099
DINSE,FEMALE,PANEL MOUNT,MEDIUM SKT
7
1
714-174-004
CONNECTOR,3 PIN,FEMALE PANEL
8
1
724-572-012
LABEL,CON,PANEL,N1500i,FACS,DINSE/HUBBELL
9
1
750-652-113
PANEL, DOT MATRIX DISPLAY
10
1
750-649-065
PCB ASM,USER PANEL,N1500i FACS,DOT MATRIX
11
1
750-610-327
BUSBAR,GUN,N1500i
12
1
701-142-003
TRANSDUCER,CURRENT,600A NOM
