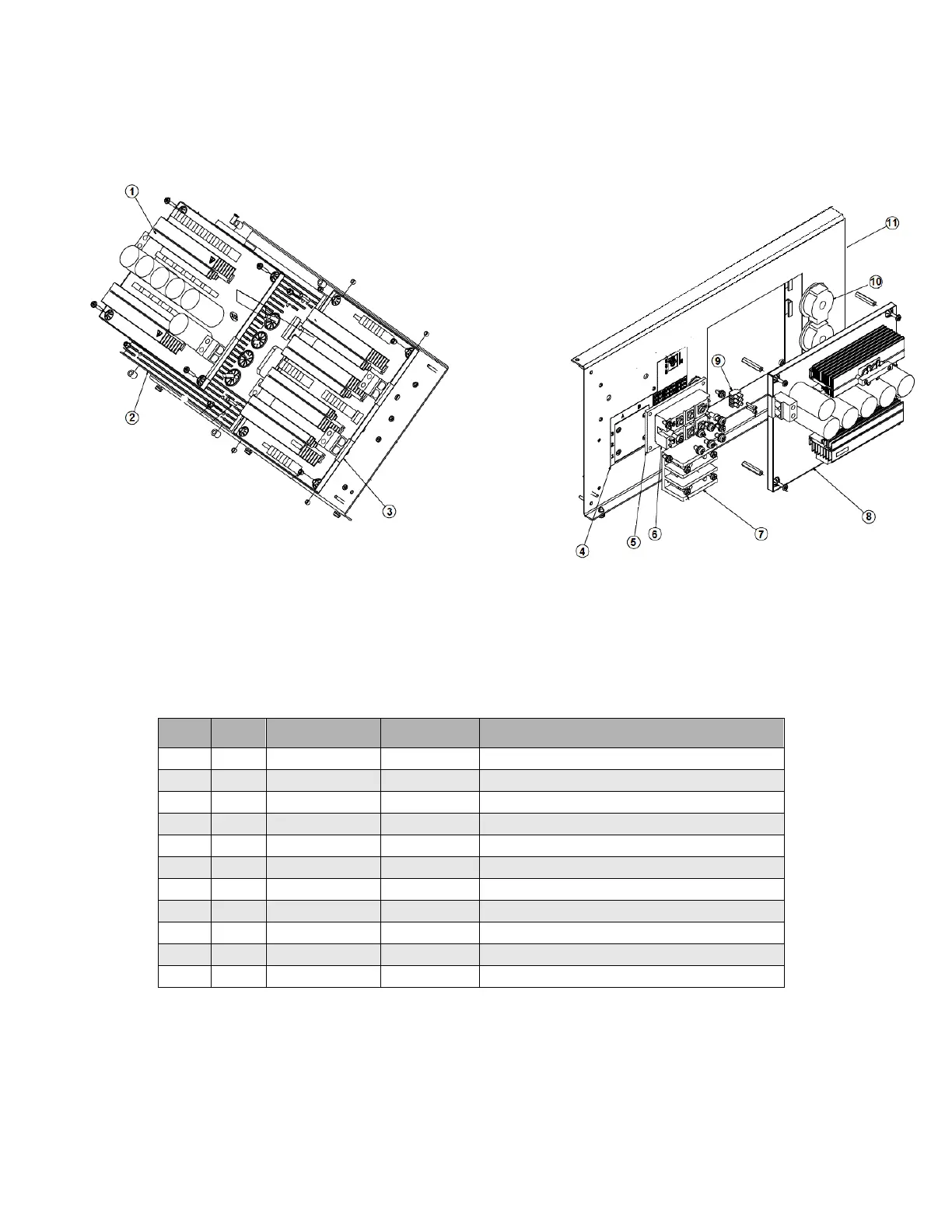

6.6 Vertical panel assembly
6.6.1 Parts list Vertical panel assembly
Comment:
Sp = Spare part; Stp = Standard part; W = Wear part;
Ssp = Stud-specific part
Item
QTY
Part Number
Commen
t
Description
1
1
750-610-054
PCB,SWITCHING ASM,N1500i,ROHS
2
1
750-610-408
MAIN TRANSFORMER SUB ASM
3
1
750-610-034
Sp
OUTPUT RECTIFIER PCB ASM, POHS
4
1
724-572-015
LABEL, RE-CONNECT INST. N1500i FACS
5
1
750-651-111
PLATE,3 PHASE BRIDGE,N1500i FACS
6
1
701-175-000
INPUT BRIDGE,215A,3PH,1600VAC
7
1
708-149-000
Sp
TERMINAL BLOCK, LARGE, 3 POS
8
1
750-610-055
PCB,SWTCH ASM W/THML,N15i,ROHS
9
1
708-150-000
TERMINAL BLOCK, SMALL, 3 POS
10
2
723-242-021
C.T. SUB ASM
11
1
750-610-206
VERTICAL CHASSIS
