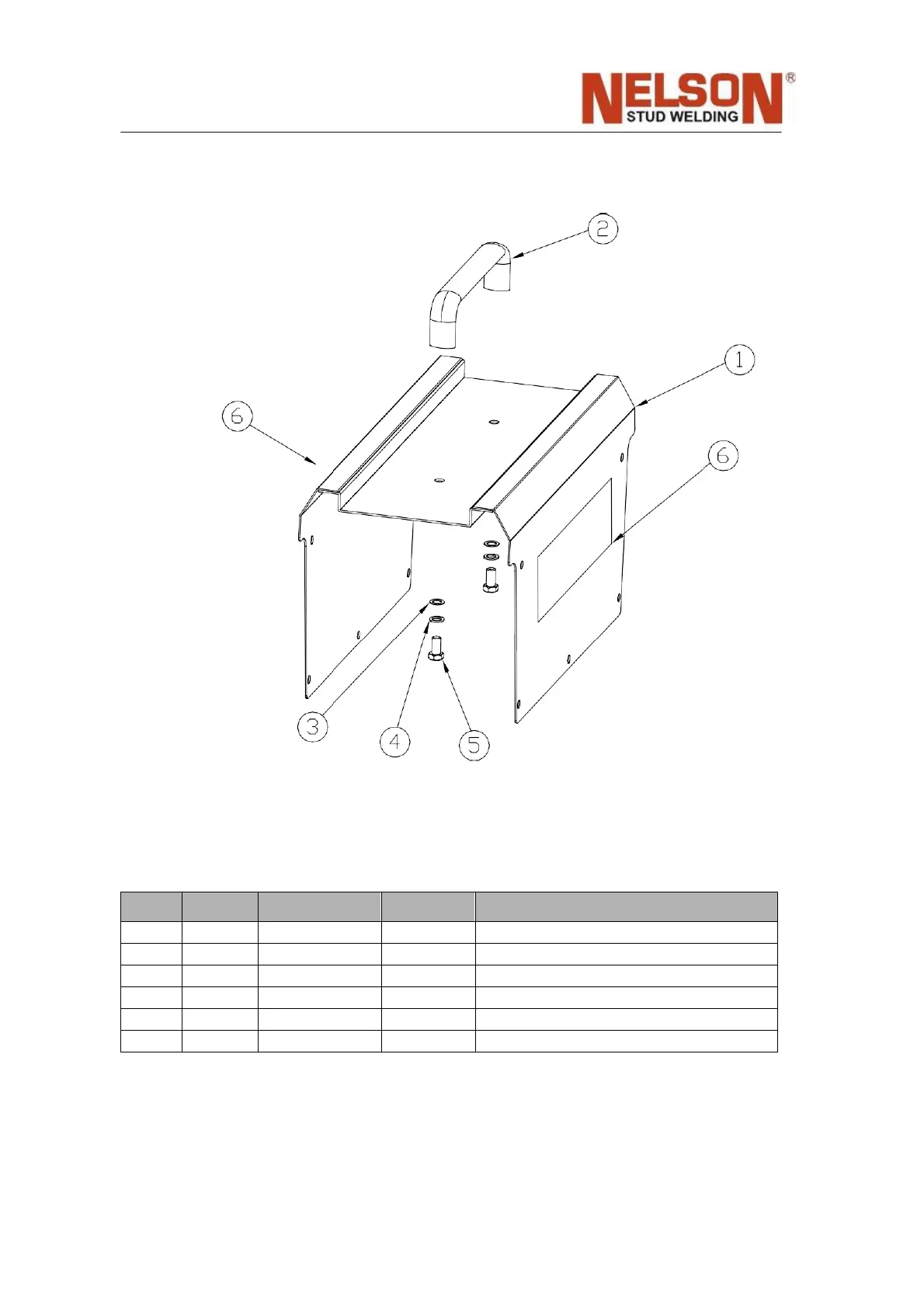

9.2 Cover Assembly
☞
TORQUE NUT TO 4 N‐M (35‐40 IN‐Lbs)
9.2.1 Parts list cover assembly
Item
QTY
Part Number
Comment
Description
1
1
750‐611‐204
COVER
2
1
729‐114‐200
HANDLE
3
2
524‐001‐310
WASHER, FLAT, 3/8ʺ, SS
4
2
524‐001‐323
WASHER, LOCK, 3/8ʺ, SS
5
2
524‐001‐322
3/8‐24 x 3/4 HHCS, SS
6
2
724‐569‐004
DECAL, NELSON
Comment:
Sp = Spare part; Stp = Standard part; W = Wearing part;
Ssp = Stud‐specific part; NS = Not shown
