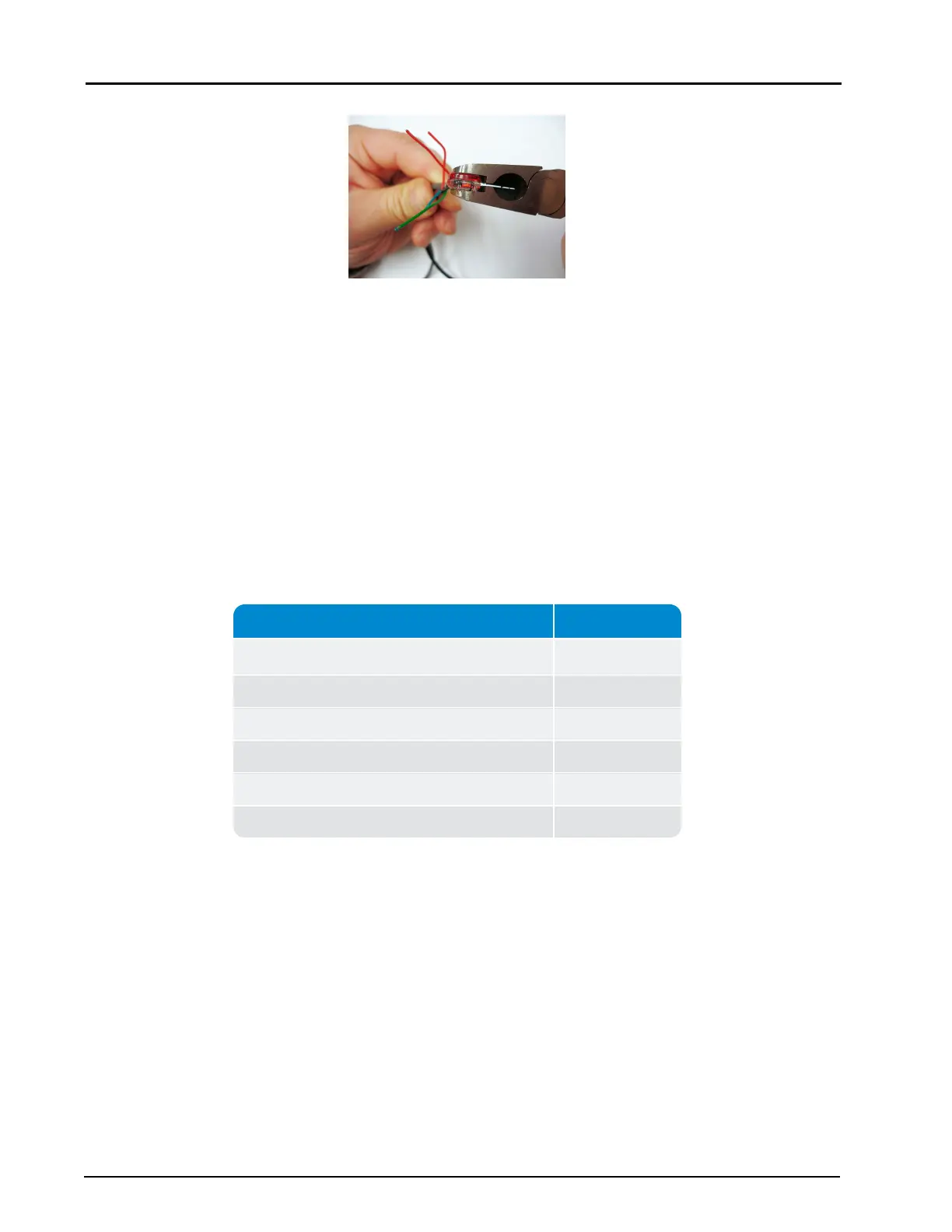

Figure 8 – Crimping Tool
6. Check to ensure the wires are still fully seated in the connector before crimping the
connector.
7. Squeeze the connector firmly with the proper crimping tool until you hear a pop and the
gel leaks out the end of the connector.
8. Repeat steps 1 through 5 for each color wire.
The following table provides the wiring color schemes for wiring the MACH 10 to various MIU
providers.
MIU Wire Color / MACH 10
®
Wire Color MIUType
Black/B Green/G Red/R
R900
®
Black/G Green/R Red/B Sensus
Black/B White/G Red/R Itron
Black/G White/RRed/B Aclara
Black/G Green/B Red/R Elster
®
Black/G Green/R Red/B Badger
Table 9 – Color Codes for Wires
16 Commercial and Industrial MACH 10
®
Ultrasonic Meter Installation and Maintenance Guide
Chapter 4: Installing MACH 10
®
Ultrasonic Meters
