LCD Panel

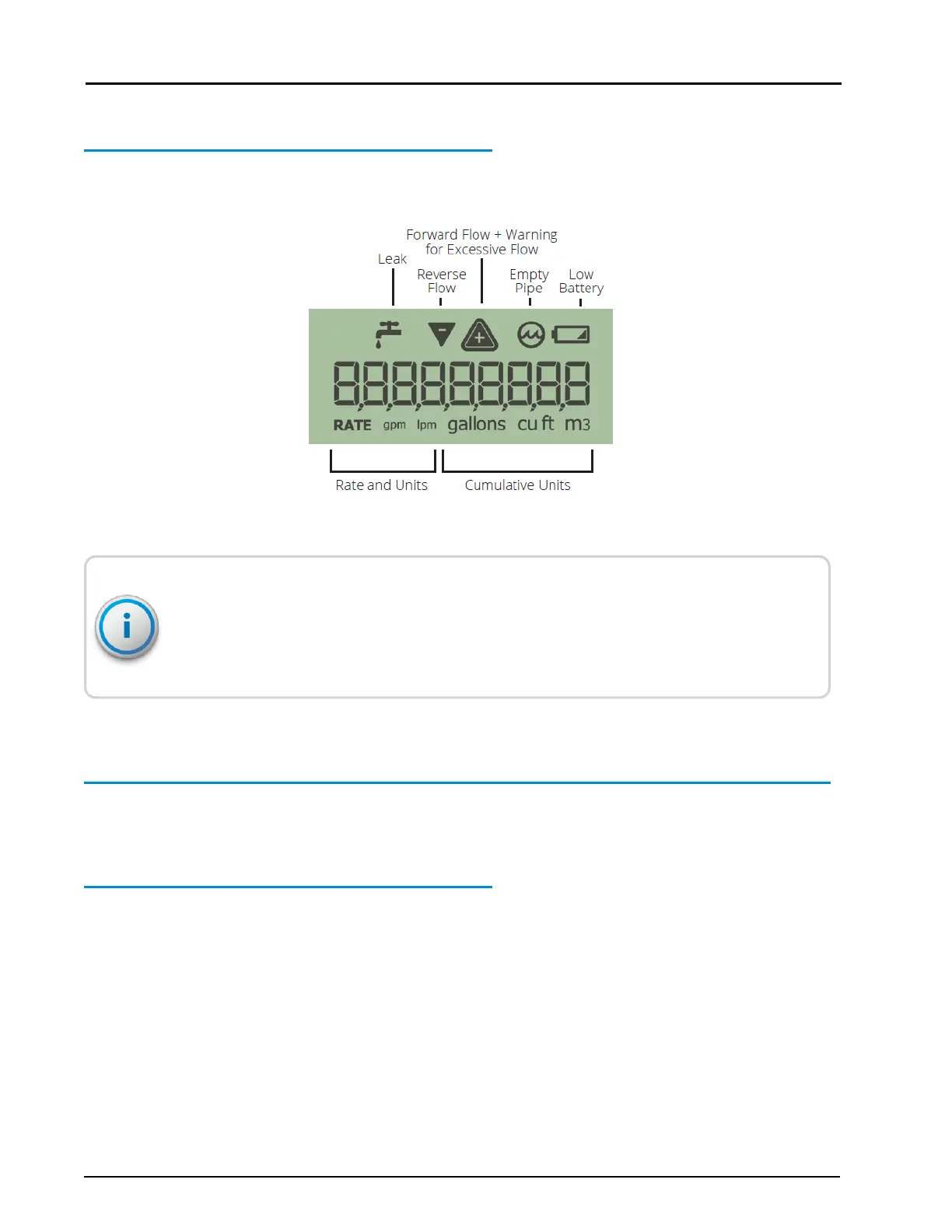

Following is an example of the MACH 10 LCD panel. The table on the following page
provides a description of each icon.
Figure 14 MACH 10
®
LCD Panel
The LCD can display commas or decimals, depending on the configuration of each register,
to show digits in the tens position, ones position, tenths position, and so forth. For
example, some registers display 1,234,567.89. Others display 123,456.789, 12,345,678.9,
or 1,234,567,89 depending on the need of the meter/register combination.
How to Read the Meter
It is important to become familiar with the information available from the meter. The icons
and displays provide helpful information.
Alarms
Indicators and alarms appear in the displays as symbols that illuminate when the condition is
active, and disappear when the alarm condition is eliminated.
20 Commercial and Industrial MACH 10
®
Ultrasonic Meter Installation and Maintenance Guide
Chapter 5: Activating and Reading MACH 10
®
Ultrasonic Meters
