Nera WorldCommunicator - Connections

11
Nera WorldCommunicator
GETTING STARTED
EQUIPMENT DESCRIPTION CONT’D

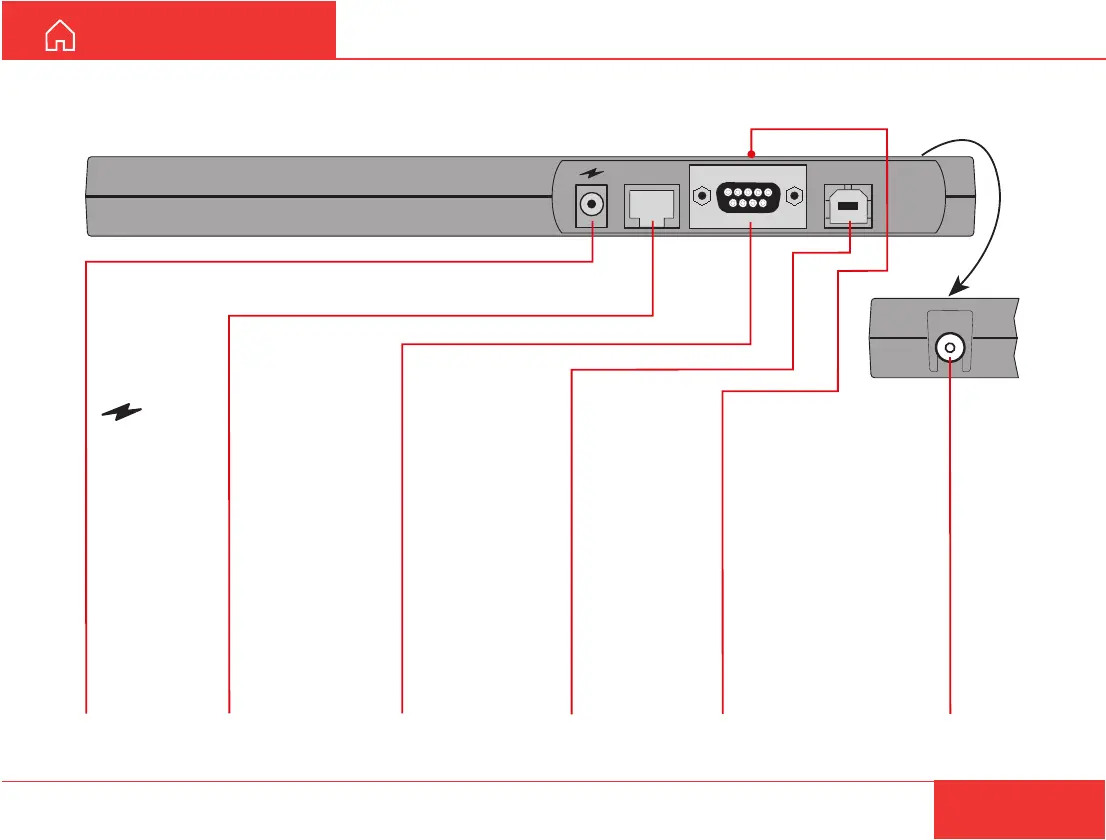

Connections
Ant
USB
RS-232
ISDN
RS-232:
9-pin serial data
port for:
 operation and
configuration
from PC.
 software
download
 64kbps data
service (UDI)
 MPDS
ANT:
connection
of coax
cable from
antenna
USB:
serial data port
for:
 operation and
configuration
from PC.
 64kbps data
service (UDI)
 MPDS
ISDN:
RJ45
Services:
 4.8kbps
compressed
speech
 64kbps
speech
 64kbps data
service (UDI)
 56kbps data
service (V110)
 64kbps audio
service (3.1kHz)
DECT:
built-in base station.
1880-1900MHz.
Selectable:
 4.8kbps
compressed speech
 64kbps speech
Modem Unit
:
19VDC
input for
simultaneous
powering and
charging of
internal
battery pack.
Note! Use shielded ISDN cable
