Administration
80
AC1200 WiFi Router JR6100
To view the logs:
1. Select ADVANCED > Administration > Logs.

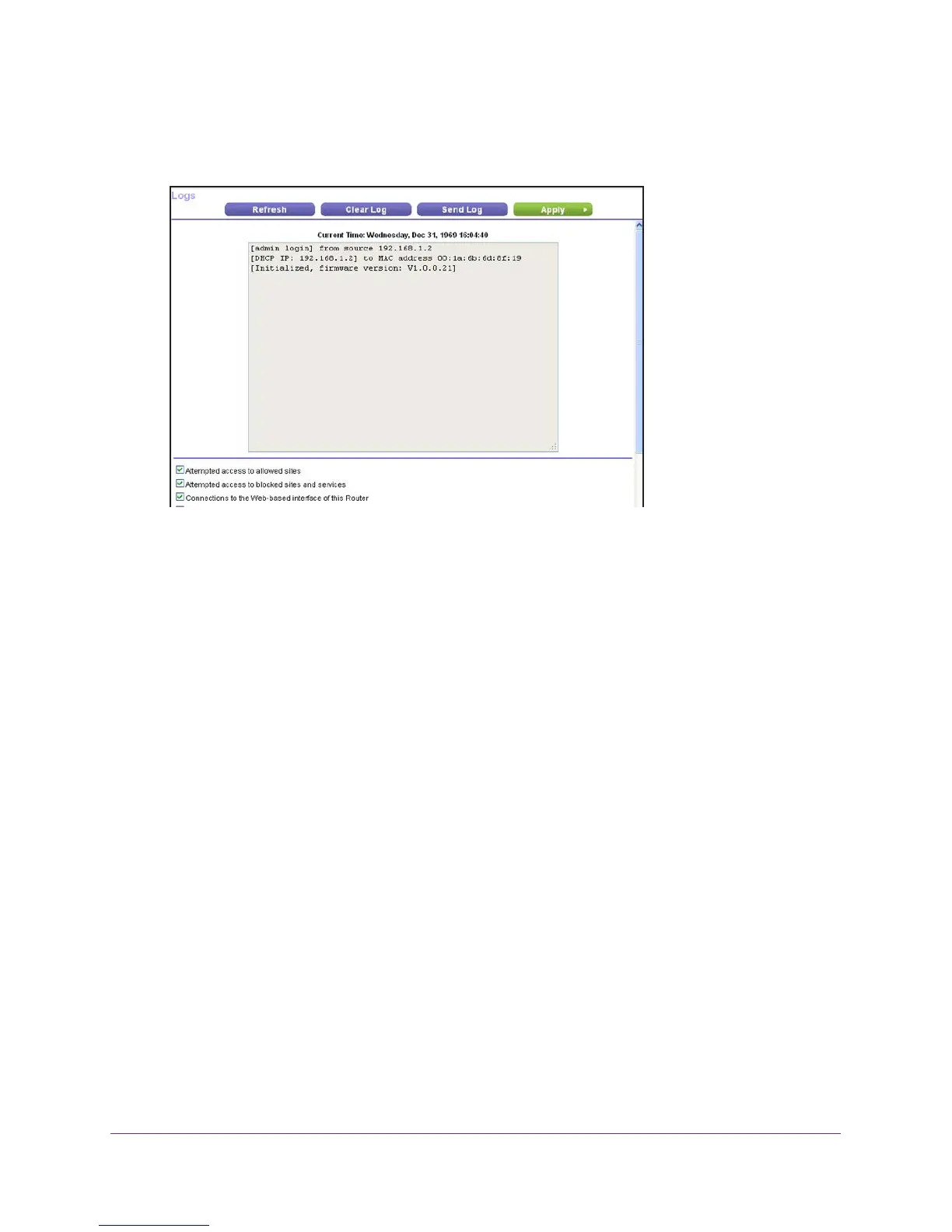

The Logs screen shows the following information:
• Source IP. The IP address of the initiating device for this log entry
.
• Target address. The name or IP address of the website or news group visited or to which
access was attempted.
• Action
. The action that occurred.
• Date and time
. The date and time the log entry was recorded.
2. You can do any of the following:
• To refresh the log screen, click the Refresh button.
• To clear the log entries, click the Clear Log button.
• To email the log, click the Send Log button.
