Rear Panel
The connections and button on the rear panel are shown in the following figure.

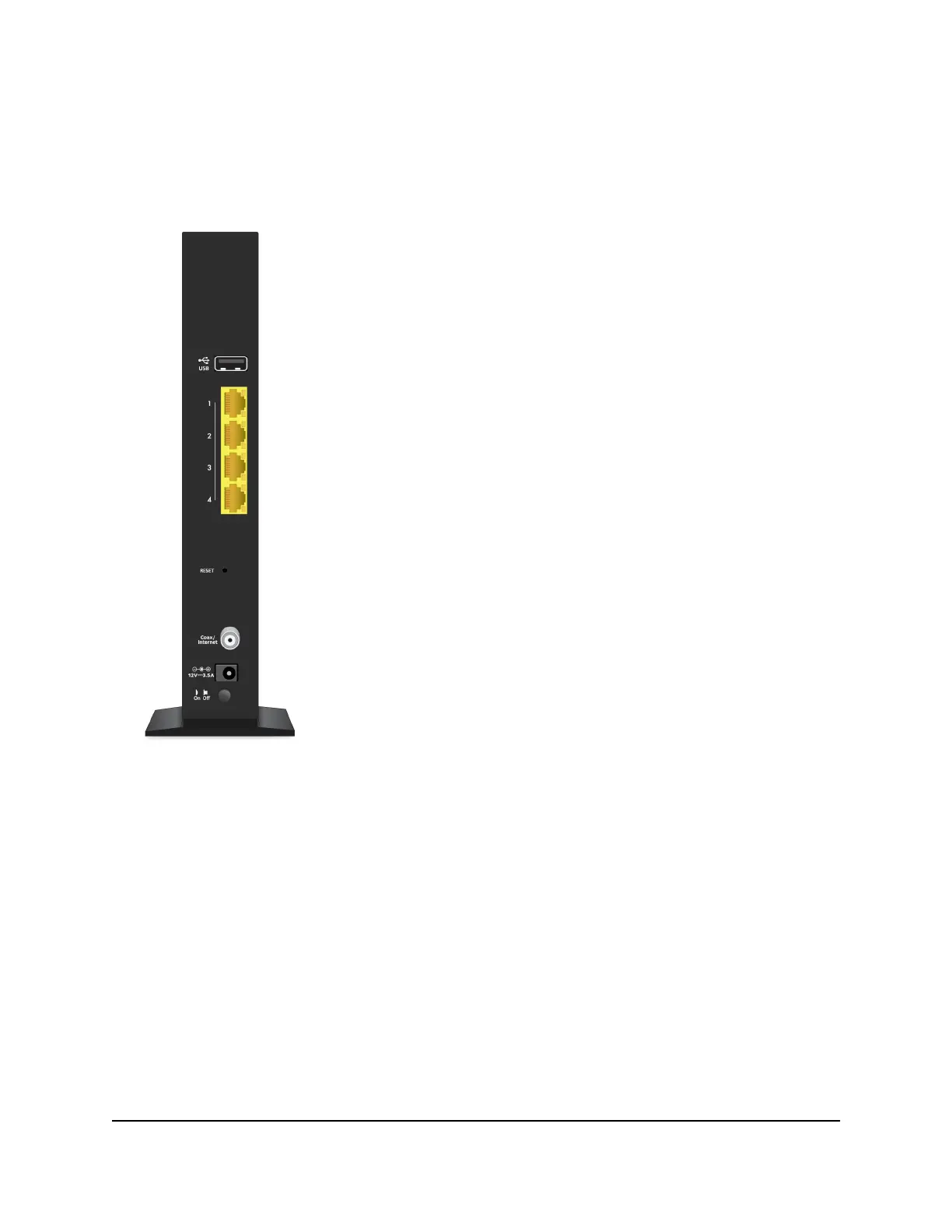

Figure 2. Cable modem router rear panel
Viewed from left to right, the back panel contains the following components:
•
USB port. Use the USB port to connect a USB storage device to the cable modem
router.
•
Ethernet ports 1–4. Four Gigabit Ethernet RJ-45 LAN ports to connect the cable
modem router to LAN devices.
•
Reset button. Pressing the Reset button resets the cable modem router. If the Reset
button is pressed for at least seven seconds and the Power LED blinks green, the
cable modem router returns to its factory settings.
•
Coaxial cable connector. Use a coaxial cable to connect the coaxial cable connector
to a cable wall outlet.
User Manual12Hardware Setup
AC1750 WiFi Cable Modem Router
