Hardware Setup
14
D6200 WiFi DSL Modem Router
7. AC power adapter input
Front Panel
The WiFi DSL modem router front panel has the 5 status LEDs, icons, and ports shown in the
figure.
Power DSL Internet Wireless USB
For information about these items, see Side Panel on page 17.

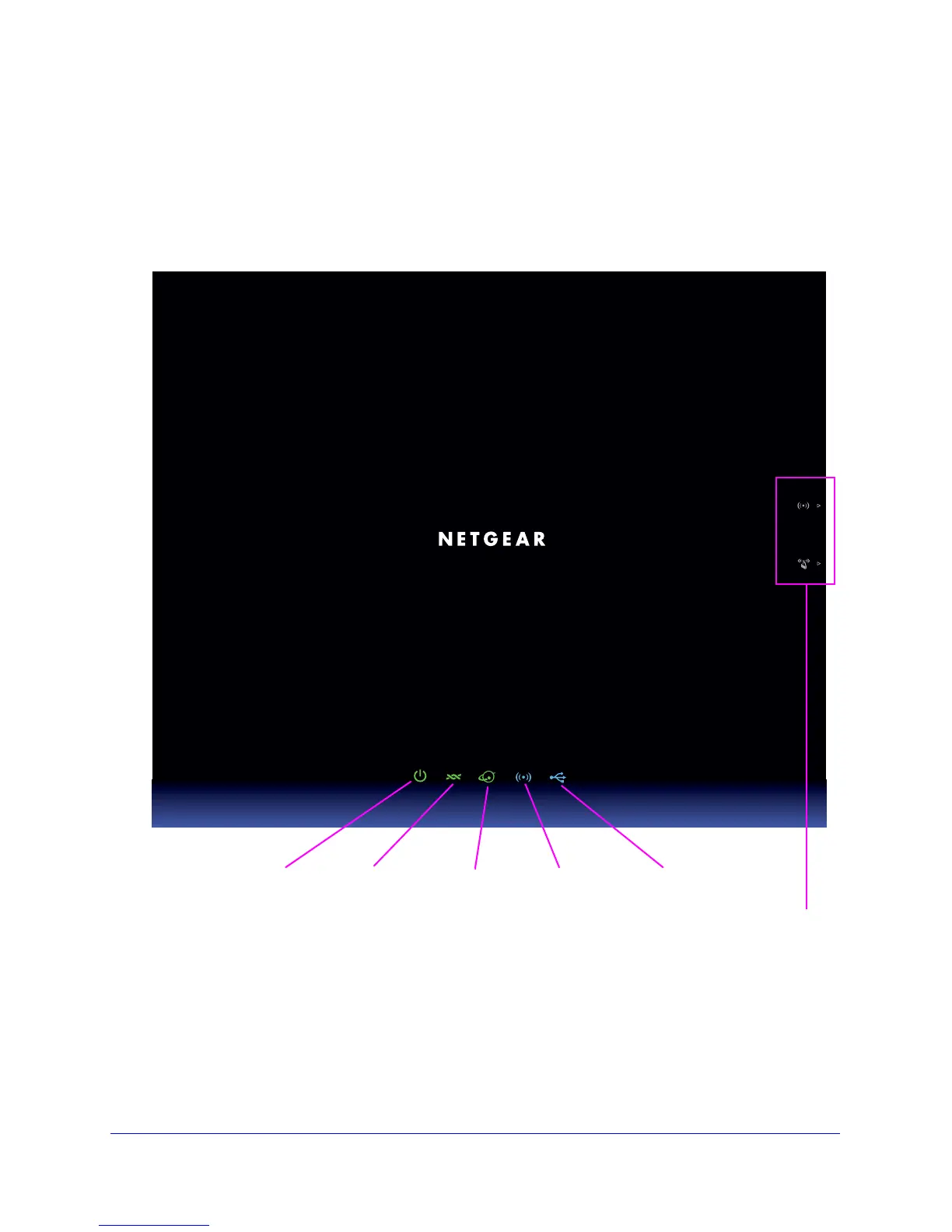

Figure 4. Front panel LEDs
The following tables describe the LEDs and icons on the front panel from left to right.
